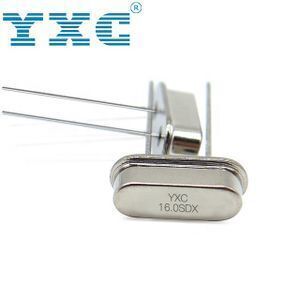

HC-49S DIP 20ppm 20pF 16 MHz Quartz Crystal Resonator 16MHz
-
Supplier: Shenzhen Yangxing Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Seal Xu -
Price: $0.04 / >=100 pieces -
Min. Order: 100 pieces
| Single package size: | 22X20.5X6.5 cm; | Factory Manufacturer: | Yes; |
| Cross Reference: | HC-49XS; | Package Type: | DIP; |
| Operating Temperature: | -20℃ ~ +70℃; | Product name: | Crystal Resonator 16MHz; |
| Certification: | ISO9001, REACH, RoHS; | Single gross weight: | 0.5 KG; |
| Supplier Type: | Original manufacturer; | Frequency Tolerance: | ±10ppm; |
| Load Capacitance: | 20pF; | Packing: | DIP; |
| Place of Origin: | Zhejiang China; | Model Number: | HC-49US; |
| Aging(25'C): | ±3PPM/year; | Selling Units: | Single item; |
| Frequency Range: | 3.2768~64MHZ; | Packaging Detail: | 200pcs/Bag; |
| Brand Name: | YXC; | Frequency: | 16.000MHz; |
| Customised Frequency: | Accept; |
Features
External dimensions: 11.5*4.5*3.68mm
Frequency Range: 3.2768MHz~64MHz
Surface mount type crystal units.
A great number of standard frequencies.
High frequency pullability and low equivalent series resistance.
Highly mass production capability
Applications: PC, STB, LCDM and Cable Modem.
Electrical Specifications
|
Item/Type |
HC-49US |
|
Nominal Frequency Range |
3.2768~64MHz |
|
Vibration Mode |
AT Fundamental |
|
Load Capacitance |
12pF, 20pF, or specify |
|
Frequency Tolerance (at 25°C): |
±10ppm;±20ppm or specify |
|
Frequency Versus Temperature Characteristics |
±20ppm or specify |
|
Operating Temperature |
-20°C ~ +70°C -40°C ~ +85°C or specify |
|
Storage Temperature |
-40°C ~ +85°C or specify |
|
shunt Capacitance |
7pF Max |
|
Level of Drive |
1~500 μW(100μW typical) |
| Frequency Aging (at 25℃) | ±3ppm/year Max |
REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
-
