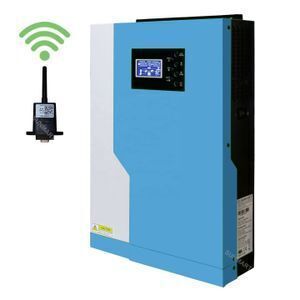

2021 newest 5.5KW solar inverter without battery working

Supplier: Foshan Sunmart Electronic Co., Ltd.
Region: Guangdong, China
Contact: Mr Sunmart Solar
Price: $330.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Battery Volatge:	48V;	Selling Units:	Single item;
Solar Controller Type:	MPPT 48V80A;	Packaging Detail:	Carton Box;
Warranty:	2YEARS;	Name:	VMII PLUS 5.5KW solar inverter without battery working;
Efficiency:	97%;	output power:	5500w;
Surge power (5 seconds):	1100VA;	MAX PV array power:	6000W;
Output Frequency:	50Hz/60Hz (Auto sensing);	Package Preview:	;
Output Current:	16A;	Single package size:	55X40X25 cm;
Output Type:	Single;	Size:	100300400;
Output Voltage:	230VAC ± 5%;	Weight:	13KG;
Input Voltage:	90-280VAC;	Type:	DC/AC Inverters;
Model Number:	VMII 5500W PLUS;	Waveform:	Pure Sine Wave;
maximum PV array open circuit voltage:	500V;	Place of Origin:	Guangdong China;
Single gross weight:	12.0 KG;	MPPT range:	120V -450V;

VMII PLUS 5.5KW solar inverter without battery working

Description:

This is a multi functional inverter/charger, combining functions of inverter,solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers

user-configurable and easy-accessible button operation such as battery charging current,

AC/solar charger priority, and acceptable input voltage based on different applications.

Features:

1.High effciency pure sine wave inverter(PF=1);Wide PV input range (120V dc -450V dc) 80A MPPT SCC;Intelligent 3stage 80A AC battery charger.
2. Surges to 2X continuous power for 5 seconds for motor loads.
3. Intelligent functionality enables utility and solar input prioritization.
4. Wide ulility input range (90Vac _280Vac) for unreliable grid even in the most challenging environments.
5. Field serviceable with replacement boards and spare parts.
6. Monitor, troubleshoot, or communication with USB/RS 232.
7. System configures quickly into compact, wall-mounted system.

8.Support wifi /GPRS monitor

9.Support batteryless wokring in good sunhine

Specifications:

Model	VM II 5500W PLUS
RATED POWER	5500VA/5500W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230 VAC ± 5%
Surge Power	11000VA
Efficiency (Peak) PV to INT	97%
Efficiency(Peak)Battery to INT	93%
Transfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	63VDC
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage	500VDC
Max. PV Array Power	6000W
MPP Range @operating Voltage	120~450VDC
Max. Solar Charge Current	100A
Max. AC Charge Current	80A
Max. Charge Current	100 A
PHYSICAL
Dimension, D x W x H (mm)	100 x 300x 440
Net Weight (kgs)	12
Communication Interface	USB/RS232/GPRS/WIFI
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C

Three Working Model Selectable option
Utility First	Utility will provide power to the loads as first priority. Solar and battery energy will provide power to t he loads only when utility power is not available
Solar First	Solar energy provides power to the load as first priority. If solar energy is not sufficient to power all connected loads, utility will supply power to the loads at the same tume. Battery provides power to the loads only when any one condition happens : -Solar energy and utility is not available . - Solar energy is not sufficient and utility is not available .
SBU Proority	Solar energy provides power to the loads as first priority. If solar energy is not sufficient to power all connected loads ,battery energy will supply power to the loads at the same time . Utility provides power to the loads only when battery voltage drops to either low-level warming voltage or the setting point

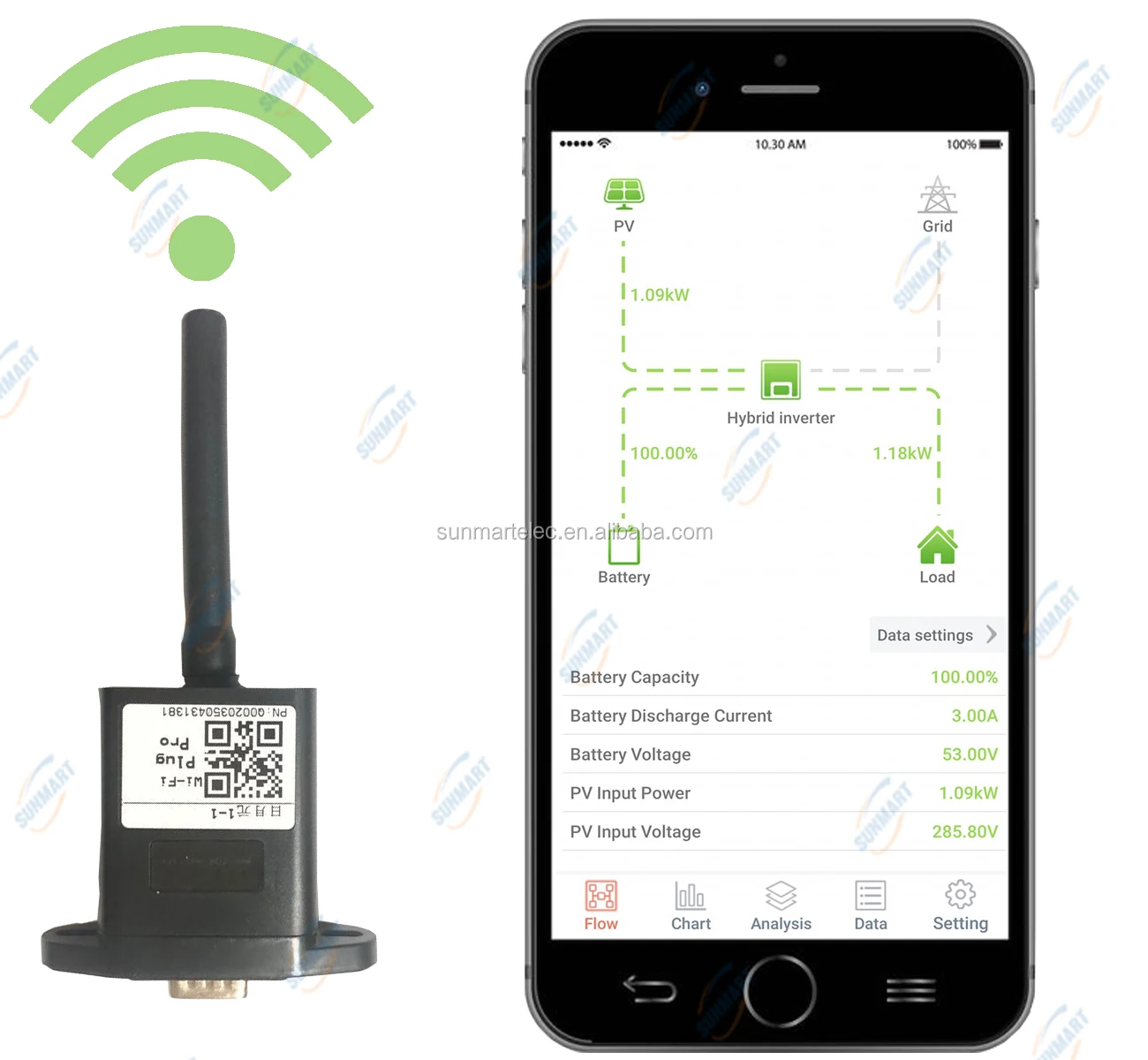

Support Wi-Fi Monitor

Why choose us ?

1 Rich experienced.

We have over 10 years experience in production and installation of solar power system and wind power system products and our products are sold to more than twenty countries in the world. We can send installation team engineers to your location and instruct the system installation.

2 Strong technical support

We have advanced R&D team to customize the system configuration and make sure our product is in stable performance, including solar panel , solar inverter , charge controller etc. Only if you have problem, we will provide professional technical support and solve it by the fastest speed.

3 Good quality, steady operation

Quality and Service are our Culture! With over 10 years new energy experience with two factories (which produce solar panel, inverter and battery), introduced advanced production equipment and specialized production line, adopt international standard management and strict quality control to ensure the stable-performance and high-quality.

4 Competitive price

We are professional manufacturer. We will not guarantee you the cheapest price in China, but we will guarantee you the advantaged competitive product .We will do our best to support our customers to open the market and reach a win-win situation in the end.

5 Fast delivery time.

"Time is gold" We have high-efficiency supply chain and long-term cooperation with shipping company, thus rapid production and fast delivery are assured.

6 Excellent after sales service.

We have professional after sales service engineer team to help you solve any kind of problem:

Solar inverter has 2 years warranty, ship the free PCB by DHL or FEDEX for service. we are not doing one-time business!

Any question,please feel free to contact me
