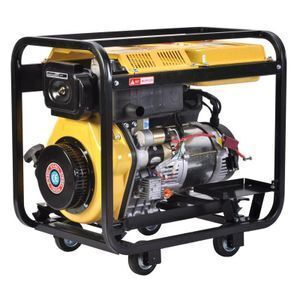

Low price 5.5kw/7kva portable home open diesel generator price

Click here to contact

Product details

Alternator:	Brushless or Brush;	Rated Voltage:	120V/240V, 220V;
Selling Units:	Single item;	Model Number:	WP6500DGS;
DC output(V.A):	12/8.3;	Engine type:	single clinder, 4-strock, air cooled;
Certificate:	CE, ISO;	Warranty:	1 Year/1000 Running Hours,3months-1year;
Speed:	3000/3600rpm;	Place of Origin:	Shandong China;
Type:	open frame, silent type;	Single gross weight:	178.0 KG;
Rated Current:	4.8A;	Certification:	CE;
Packaging Detail:	Protection plastic + Plywood case Export standard packing iron case/Wooden case;	Cooling method:	Air-cooling System;
Single package size:	95X50X77 cm;	Package Preview:	;
Frequency:	50HZ/60HZ;	Fuel Tank:	8-10hours;
Phase:	1 Phase/3 Phase;	Color:	Customers' Requirement;
Brand Name:	POWER;

Single phase air cooled diesel generator welding machine

Product Description

Silent type	PW3500DGS	PW5500DGS	PW6500DGS	PW7500DGS	PW8500DGS	PW9500DGS
Rated frequency[Hz]	50/60
Rated voltage[V]	110/115/120/220/230/240,110/220,115/230,120/240
Rated output power[KW]	2.8/3.0	4.0/4.5	4.5/5.0	5.5/6.0	6.0/6.5	6.5/7.0
Max output power[KW]	3.0/3.5	4.5/5.0	5.0/5.5	6.0/6.5	6.5/7.0	7.5/8.0
Rated rotation speed[rpm]	3000/3600
Power factor[cos@]	1
Phase number	Single phase
Noise level[Db(A)@7m]	70-74
Excitation mode	Self-excitation brushless
Engine model	Single cylinder,4-stroke,air-cooled,direct injection, diesel engine
Engine type	178FE	186FE	186FAE	188F	190F	192F
Displacement[ml(cu/in)]	296	406	418	456	477	498
Compression ratio	20:1	19:1
Starting system	Electric start
Rotation dircetion	Clockwise
Fuel	0#(summer) or -10#(winter) -35#(chillness) diesel oil
Lube	CDgrade or SAE 10W-30,15W-40
Low oil pressure alert system	With
Overall dimension (LxWxH)[mm]	950x570x770
Dry weight[kg]	130	160	175	178	178	178
