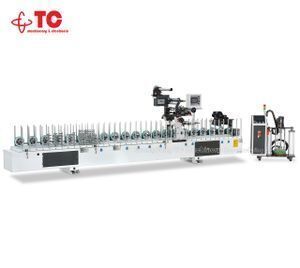

Pur Hot Glue Profile Wrapping Machine for Wood/WPC/UPVC/ALUMINUM

Supplier: Foshan Tongchi Electric Motor Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr TC Group
Price: $6000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Warranty:	1 Year;
Showroom Location:	Egypt,Turkey,Viet Nam,South Korea;	Dimension(LWH):	4000/5000/6000 x 800x 2000mm;
Power:	5.5kw;	Packaging Detail:	1. packed by foam and shrink film 2. Wooden case will charge additional charge;
Video outgoing-inspection:	Provided;	Condition:	New;
Based profile:	MDF, Particle, plywood, wpc, upvc, aluminum,etc;	Machinery Test Report:	Provided;
Core Components:	Gearbox,Motor;	Place of Origin:	Guangdong China;
Warranty of core components:	1 Year;	Payment Terms:	L/C,T/T;
Weight:	1500kg;	Covering Film:	Pvc, Leather, Pp;
Brand Name:	TC Machinery & Electronic;	Marketing Type:	Ordinary Product;
Certification:	CE Certificate;	After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;
Port:	Shunde, Guangzhou, Shenzhen;	Applicable Industries:	Hotels,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Home Use,Construction works ,furniture, building materials, door frame;
Key Selling Points:	Competitive Price;	Voltage:	Request;
Supply Ability:	6 Set/Sets per Day;	Local Service Location:	Egypt,Turkey,Viet Nam,Indonesia,Thailand,South Korea;

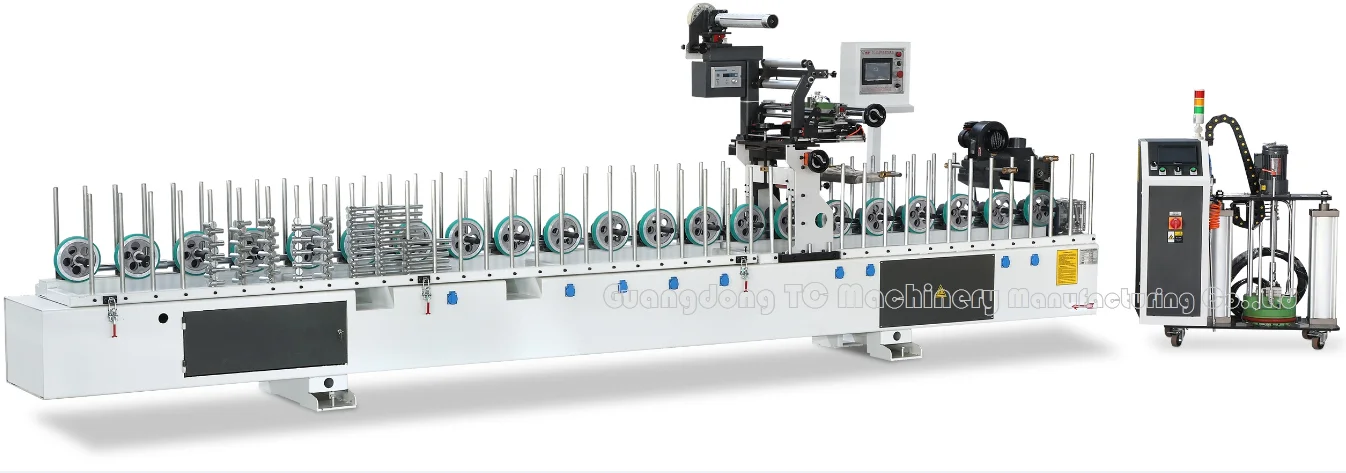

MULTIPURPOSE PROFILE WRAPPING MACHINE FOR Wood/WPC/UPVC/ALUMINUM

WRAPPING MACHINE FOR WINDOW DOOR PICTURE FRAMES

SUTIAB LE MATERIALS:

COVERING FILM: PVC, Paper, Veneer, Aluminum Foil, etc

GLUE: PUR Hot Melt Glue

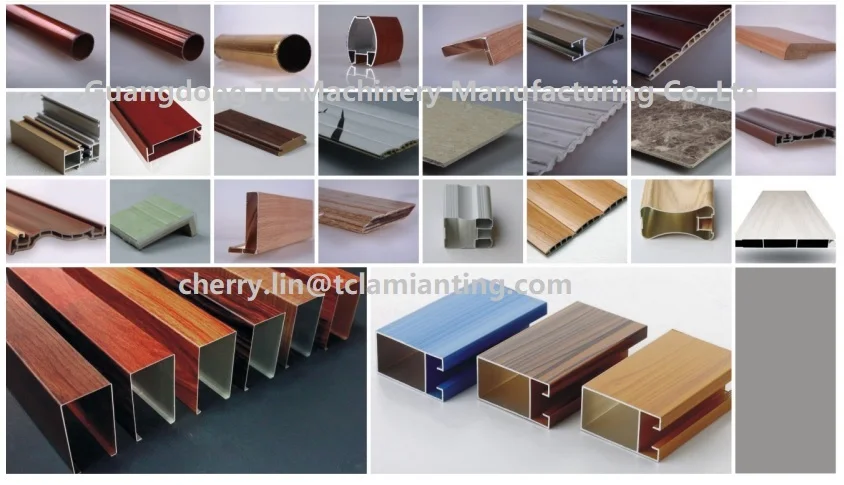

BASE PROFILE: WPC, UPVC, MDF, Aluminum, Solid Wood, Particle Board, Plywood, etc.

PARAMETERS:

Main technology parameter
Maximum film covering width	300/400/450mm
Maximum process thickness	90mm
Maximum process length	600mm
Speed of material delivery	0-50m/min
Motivity power	1.5kw
Sticking glue power	5.5kw
Heating power	6kw
Maximum diameter of roll cover material	400mm
Machine size	60020006000mm
Plastic buckets specifications	20kg
The inner diameter of the plastic buckets	280mm(286mm custom)
Temperature range	normal temperature-180℃
Working pressure	0.4-0.8Mpa
Platen stroke	Max:500mm
Max motor speed	60rpm
Max out of plastic pressure	50kg/cm²
Control system	PLC+Touch screen
Insulation function	YES
Over-temperature alarm	YES
The low plastic bits alarm	YES

APPLICATION:

mainly for Wood, WPC, UPvc, Aluminum material surface coated with PVC wrapping, veneer wrapping, paper wrapping, with scraping glue system to keep the glue spreading uniform, it is suitable for different complicate shape, as angle parts, around ARC, roughness, extruding shape, so as to get a excellent surface.

Suitable for builiding materials, furniture, tabletops, doors, windows,skirting lines, ceiling, wall or related manufactuers use. Complex shapes can achieve the perfect product surface without bubbles and without wrinkles.

WORKS:

Wrapping machine works by using different angles veneer roller coated on the workpiece to suppress, in the process, the process pressure rate and pressure can be adjusted according to different coatiing material.

A full set of manufacturing processes can be a full automatic assembly line, the normal working can be done without human intervention, it just need to feed material from adhesive coating to expect the sending until the product be finishedm which reduce labor costs and ensure the passing rate of processed products and processing efficiency.

OUR SERVICE:

Below clauses are only for the products have been bought from TC :

1) We can offer Videos, English Instruction Manual, Photos and on-line support

2) We can offer free trainning when you come to study in our factory within warranty period

3) We can send engineer to service in your factory to train your staff

OUR MARKETING CENTER:

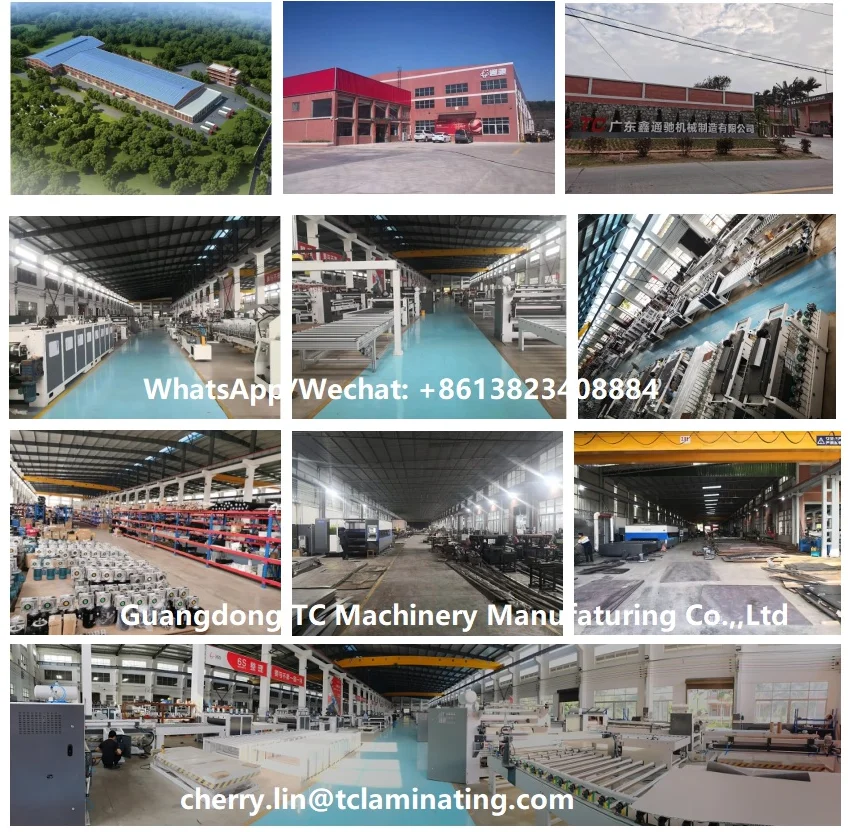

OUR FACTORY:

INTRODUCTION OF OUR COMPANY:

Guangdong TC Machinery Manufacturing Co.,Ltd (Original name Foshan TC Woodworking Machinery Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), found in 2006, factory cover around 30,000 sqm, located in Jiangmen, Guangdong, China, with marketing center in Shunde, Foshan, Guangdong.

We specializes in designing and manufacturing surface decorative wrapping/laminating machines: spread glue, laminate decorative films on the surface of complex shapes, flat panels.....main products are as following:

Profile Wrapping Machine Series

Matt Flat Surface Laminating Machine Series

High Glossy Flat Surface Laminating Machine Series

Super High Glossy UV Coating Machine Series

Vacuum Membrane Press Machine Series

Roll Film Cutting Machine Series

Glue Spreader Machine Series

Other Machines and Machine accessries.

Our products sells to overall China and many different countries. Currently, factory has over 100 workers, a perfect after-sales service team and with a designer team of years experience. Also, to offer customers the qualified and competitive price products, and assure the best shipment time, we not only assemble machines, but also produce and sell machine components and accessories. In additional, we can customize machines according to the customers' requirement, to support customers to do their best products.

if you have requirements for our these kinds of products, please don't hesitate to contact with us and warmly welcome to visit our factory.
