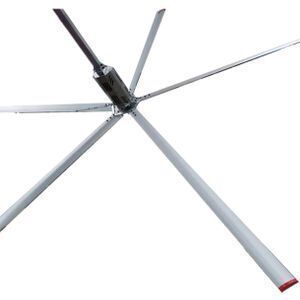

QX Energy Efficiency Air Cooling HVLS Big Industrial Ceiling Fan

Supplier: Guangzhou Qixiang Industry Co., Ltd.
Region: Guangdong, China
Contact: Ms Annie Peng
Price: $1990.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Video technical support;	Package Type:	Packing size: 7001000700mm for the motor +3003600250mm for blade packing, one fan will be having two wooden cases.;
Type:	Other;	Warranty:	2 Years;
Voltage:	220v/380v/415v;	Air volume:	1450㎡;
Place of Origin:	Guangdong China (Mainland);	Application area:	workshop ,warehouse,farms ,gymnasium etc;
Selling Units:	Single item;	Mounting:	Ceiling Fan;
Blade Material:	Stainless Steel;	Material:	Aluminum Alloy;
Blade:	5 PCS Fan Blade;	Fan diameter:	7200mm;
Place of Origin:	Guangzhou(China);	Brand Name:	China Qixiang;
Delivery Detail:	0 days after payment;	Amount of blades:	5;
Package Preview:	https://sc01.alicdn.com/kf/HLB1Lvz7as_vK1RkSmRyq6xwupXap.jpg_640x640.jpg;	Max rotate Speed:	55rpm;
Power:	1.1KW/1.5KW;	Wind Speed:	0-4.3m/s;
Certification:	CE,CCC,ROHS,ISO9001;	Total weight:	115kg;
Single gross weight:	120 KG;	Single package size:	400X20X30 cm;

Product Description

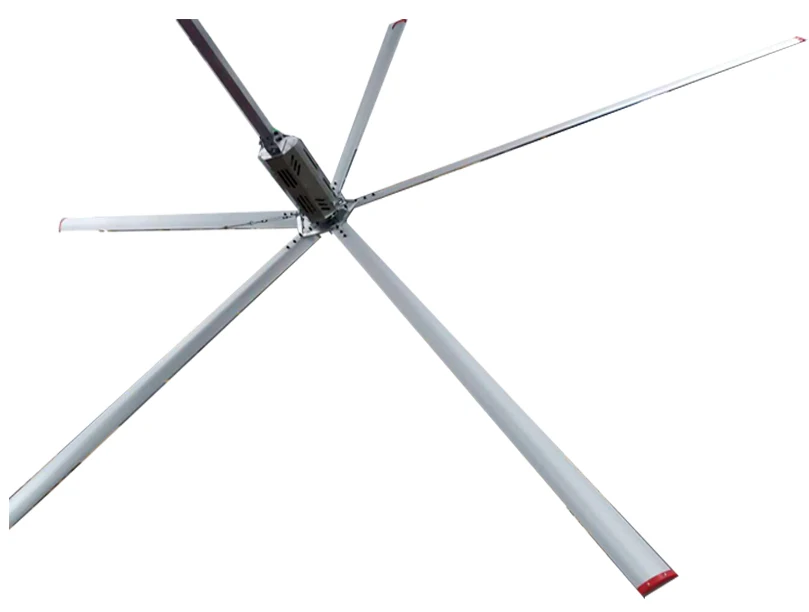

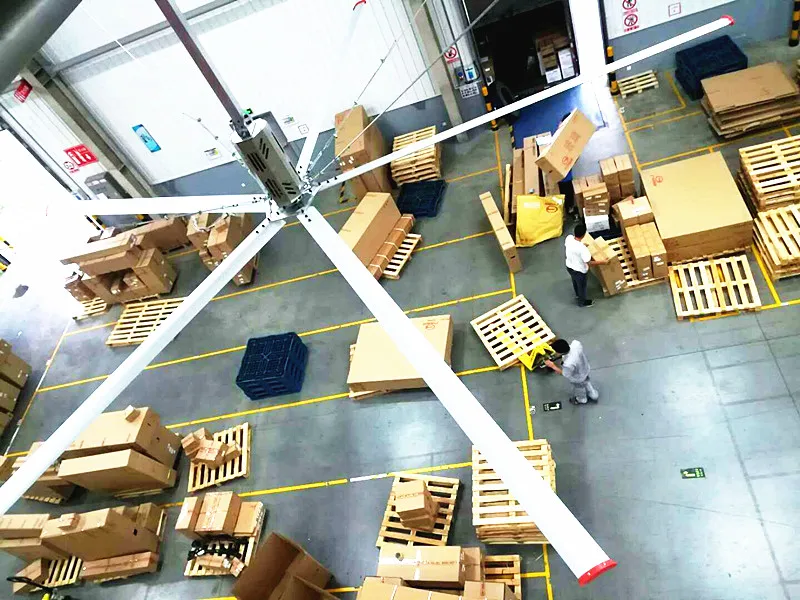

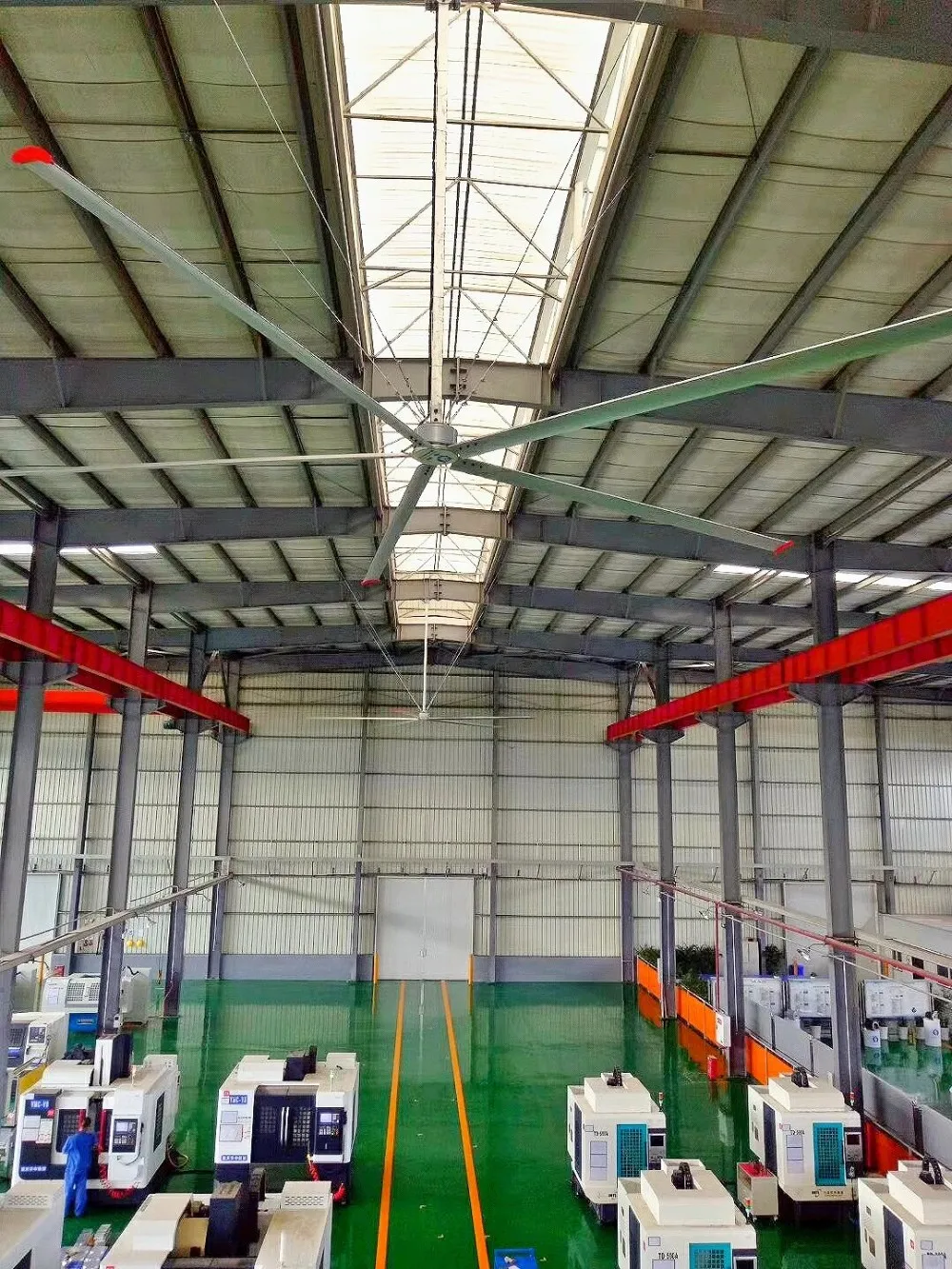

HVLS Industrial Ceiling Fan For Warehouse

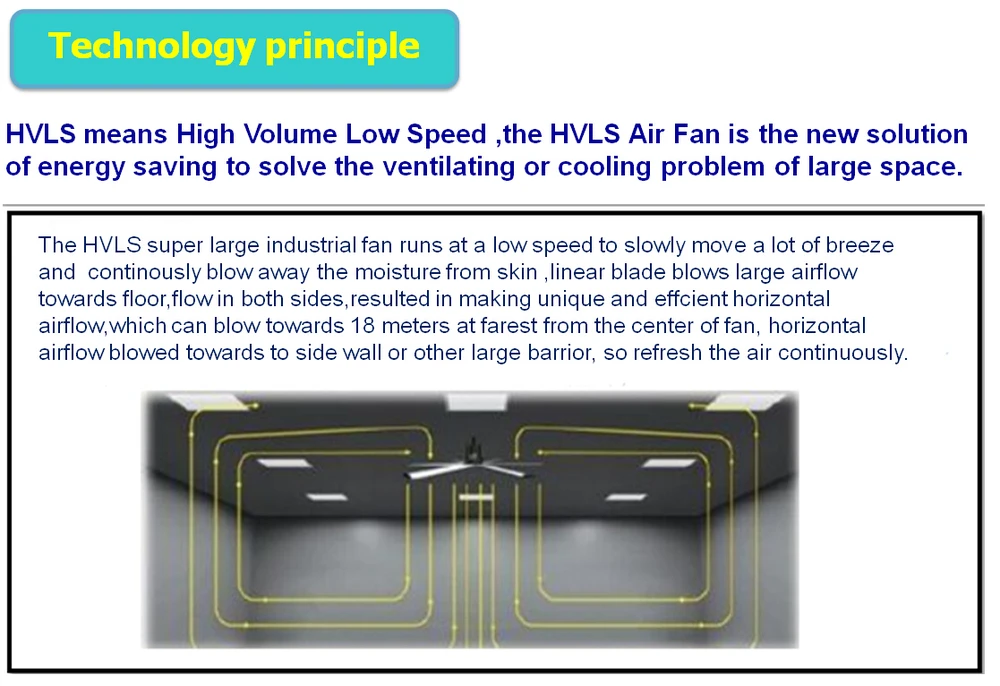

The fan is typically of 5(in odd number) pcs of large diameter blades up to 7.2 m each with the effective coverage of 1500 SQM. It consumes only 1.5 KW electricity per hour, which can replace hundreds large diameter Industrial Ceiling Fan with 5 blades pedestal fans or wall-mounted fans.

It can be widely used in large space, like industrial workshop, warehouse, supermarket, gymnasium, school hall, large restaurant, villa, government hall, bus station, animal farm, foundry industry, metallurgical industry, product cooling and so on.

Detailed Images

Control Box

Reduce gently and intellently, to protect motor reducer and transsion system.

Frequency converter with over current and over voltage/under voltage/open phase/over load/overheat protection, make it automatic power-off when have an accident.

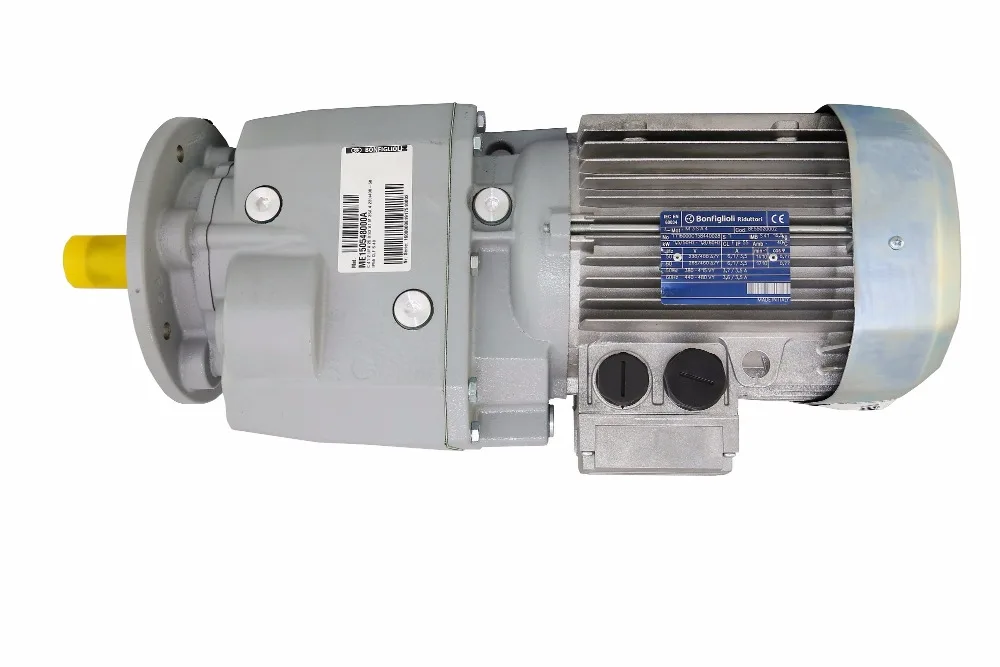

Motor

Introducing Imported Germany Bauer motor integrated with decelerator, with fluoriine rubber oil seal to ensure the reliability of the rotary drive member.

Voltage: 220/380v, 50Hz/60Hz, three phase.

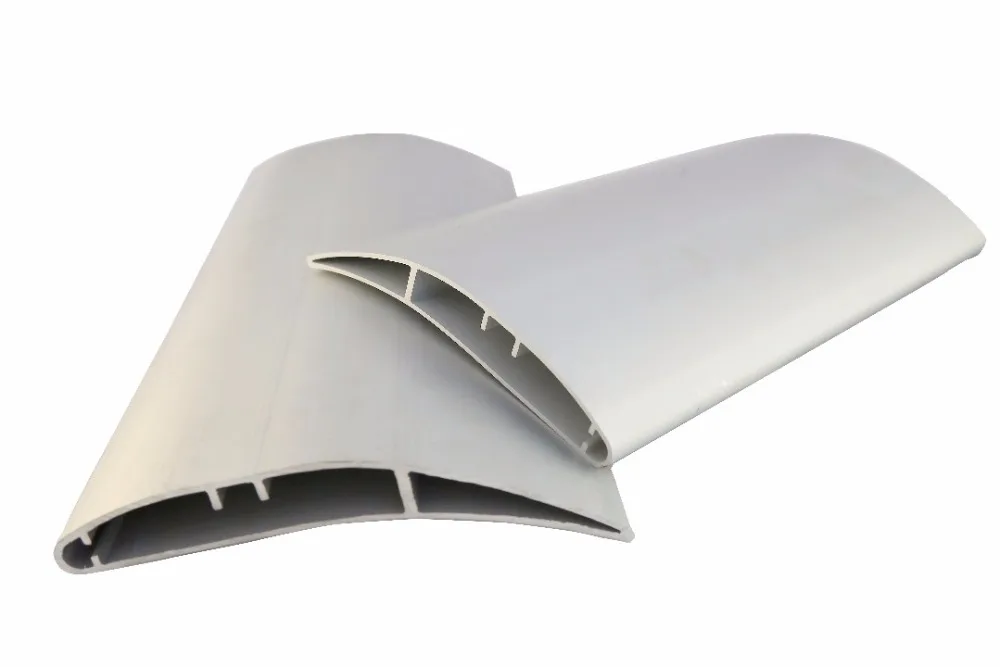

Fan Blades

Aluminum Alloy 5 blades.

The use of advanced fluid dynamics simulation software CFD modeling and wind tunnel testing ,aerodynamic shape with a unique anti-fatigue lined design.

Chassis

Material: Aluminum Alloy.

Using integrated aluminum magnesium alloy and made by precise cutting technology to ensure the consistency of the chassis as well as security stability.

Related Products

Our Company

Exhibition

Certifications

Packing & Delivery

Wooden case
1.One for Blade and other spare parts
2.One for Motor and Control Box

FAQ

Q1: What is the MOQ?
No any requirements, 1 pcs can be accepted.

Q2: Compare with the pictures, I prefer to see the real products, Can you promise your products are the same with the pictures?
All the pictures were taken from real products, so the quality can be guaranteed, You can place sample order first .

Q3: Some of my orders are urgent, I don't want to wait long time, can you guarantee mass production period .
We suggest you contact our sales for urgent orders ,usually 3-5days for stock items,20-30day for mass production period .

Q4: Can all products be customized?
Yes, all of products can be customized according to customers' requirements.

Q5: What kind of motor do you used?
Bauer , Bonfiglili ,Nord.

Q6: How about the motor power?
380v/50 Hz, three phase ,1.5kw power , 2.0Hp ,it depends on specification.
