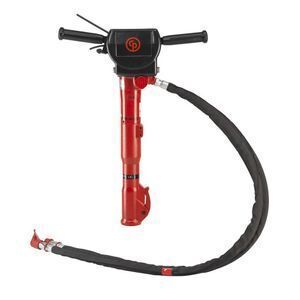

Handheld Concrete Stone Asphalt Hydraulic Breaker

Supplier: Jining Longpeng Machinery Co., Ltd.
Region: Shandong, China
Price: $2280.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Impact Rate(bpm):	1,400;	Maximum Return Line Pressure(bar):	10;
Single gross weight:	30 KG;	Sound Power Level Guaranteed:	106 Lw dB(A);
Sound Pressure Level (Lp, r=1m) dB(A):	93;	Oil flow(l/min):	20;
Single package size:	70X50X30 cm;	Delivery Detail:	0 days after payment;
Place of Origin:	Illinois United States;	Length(mm):	650;
Package Type:	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.;	EHTMA Class:	C;
Selling Units:	Single item;	Vibration Level 3 Axes(m/s2):	15.1;
Working pressure(bar):	95-110;	Weight With Hoses(kg):	19.3;

Product Description

Product Application

1 , Small volume, light weight, great impact energy and efficiency 2~3 times of air pick.

2 , Low noise, excellent quality, high reliability and durability.

3 , It can install various forms of pick, shovel, tamping head and so on.

4 , It can equipped with a shock-absorbing handle with excellent shock absorption. The vibration intensity is only 5 M/S2, which is comfortable to operate, ensuring that the operator can work for a long time without feeling tired.

Hydraulic Breakers		BRK 40	BRK 40 VR
Weight With Hoses	kg	19.3	25.2
Length	mm	650	650
Oil Flow	l/min	20	20
Working Pressure	bar	95-110	95-110
Maximum Return Line Pressure	bar	10	10
Impact Rate	bpm	1,400	1,400
Vibration Level 3 Axes (ISO 28927–10)	m/s²	15.1	5
Sound Power Level Guaranteed (2000/14/EC)	Lw dB(A)	106	106
Sound Pressure Level (2000/14/EC)	(Lp, r=1m) dB(A)	93	93
EHTMA Class		C	C
Part Number	Chuck Size Hex 25 x 108 mm	1801 3446 11	1801 3447 19
Part Number	Chuck Size Hex 28 x 152 mm	1801 3446 54	–
Part Number	Chuck Size Hex 28 x 160 mm	-	-
Part Number	Chuck Size Hex 32 x 152 mm	1801 3446 60	1801 3447 21
Part Number	Chuck Size Hex 32 x 160 mm	1801 3446 62	1801 3447 22

BRK 40 - Lightweight, multi-purpose breakers

The perfect choice for indoor and outdoor renovation and demolition jobs, BRK 40 breakers have a good impact energy combined with a high frequency, at a comparable low-weight. Brickwork, frozen soil, asphalt, and concrete are no match for these tough, lightweight breakers. Frequently chosen by contractors and rentals, BRK 40 breakers are also effective for tamping and compaction and are used by railroad companies for tie tamping applications.

Main Features

It is the best choice for indoor and outdoor renovation and demolition BRK - 40 picks 65 j impact energy, hitting 1400 times/min bricklaying, frozen soil, asphalt and concrete can be this strong and lightweight picks smash BRK - 40 in construction and rescue are often chosen because of its is very effective on tamping and compaction, railway bureau also use it for ballast sleeper tamping BRK - 40 pick work flow for 20 liters per minute, with CP hydraulic power station PAC P9 perfect match can be equipped with standard or suspension hand in hand code (VR)The newly designed shock absorber handle is simple in structure, better in effect and more durable, which greatly clarifies the labor intensity of the operator

Certifications

Detailed Images

Whether in harsh conditions or in cities with harsh environmental and noise requirements, concrete, reinforced concrete, asphalt, rock, frozen soil, and beatings can be efficiently completed.

The hydraulic breaker is operated by high-pressure hydraulic oil to compress the energy released by the nitrogen chamber.

Hydraulic power combination

Products have hydraulic power station and hydraulic rotary saw

Packing & Delivery

Packaging
Size	700 (L) * 450 (W) * 180 (D)
Weight	25 kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
