Handheld Powerful Hydraulic Breakers For Asphalt/ Concrete Breaking

Product details
Flow range:26-34 lpm;Dimention:650*450 mm;
Pickaxe size:1*4-1/4;Single package size:70X50X30 cm;
Colour:yellow;Place of Origin:Shandong China;
Selling Units:Single item;Handle type:Shock absorption handle;
Application:Pavement repair;Single gross weight:23.0 KG;
Impact frequency:1800-2400 bpm;Impact energy:110-120 J;
Working pressure:90-140 bar;Weight:18 kg;
Product Description

Product Application

1 , Small volume, light weight, great impact energy and efficiency 2~3 times of air pick.

2 , Low noise, excellent quality, high reliability and durability.

3 , It can install various forms of pick, shovel, tamping head and so on.

4 , It is equipped with a shock-absorbing handle with excellent shock absorption. The vibration intensity is only 2.8M/S2, which is comfortable to operate, ensuring that the operator can work for a long time without feeling tired.

Hydraulic pickaxe BK18S/BK20S/BK28S
Model
BK18S
BK20S
BK28S
weight  kg
18
20
28
Flow range   lpm
26-34
26-34
26-34
Working pressure     bar
90-140
105-140
105-140
Shock frequency   bpm
1800-2400
1800-2400
1800-2400
Shock energy   J
110-120
110-120
110-120
Brazing size
1*4-1/4
1*4-1/4
1-1/4*6
1-1/8*6
Handle form
Shock absorber handle
Shock absorber handle
Shock absorber handle
Dimensions   mm
650×450
650×450
670×465

Main Features

1) Small size, light weight, high impact energy, and work efficiency is 2~3 times that of the wind;

2) Low noise, excellent quality, high reliability and durability;3) High pressure double crank to control the die opening and closing.

4) Can be installed in various forms of brazing, shovel, hoe, etc;

5)  It is equipped with a shock-absorbing handle with excellent shock absorption. The vibration intensity is only 2.8M/S2, which is comfortable to operate, ensuring that the operator can work for a long time without feeling tired.

Certifications
Detailed Images



Whether in harsh conditions or in cities with harsh environmental and noise requirements, concrete, reinforced concrete, asphalt, rock, frozen soil, and beatings can be efficiently completed.






The hydraulic breaker is operated by high-pressure hydraulic oil to compress the energy released by the nitrogen chamber.


Package product

Name: Hydraulic power combination

Products have hydraulic power station and hydraulic output pipe

Packing & Delivery
Packaging
Size
700 (L) * 450 (W) * 180 (D)
Weight
18 kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

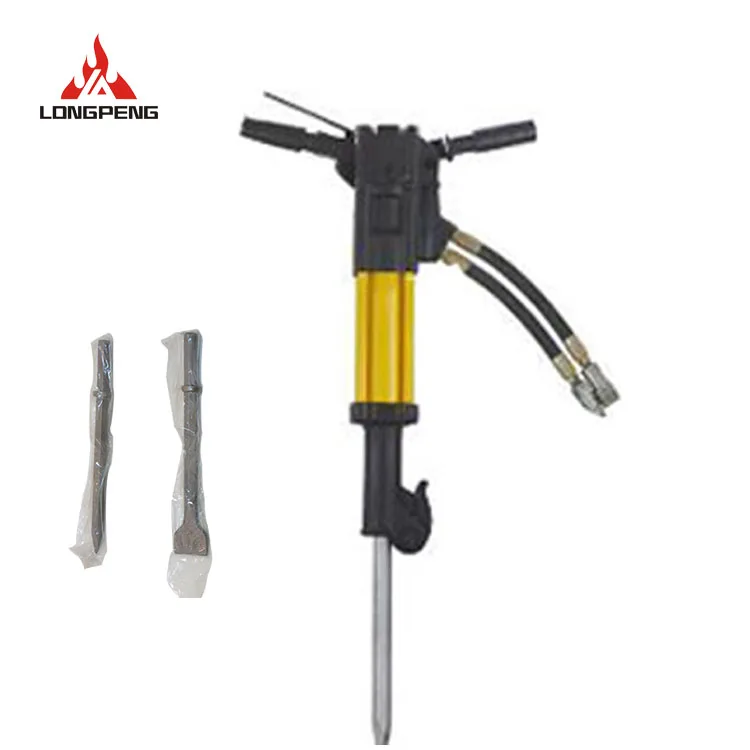

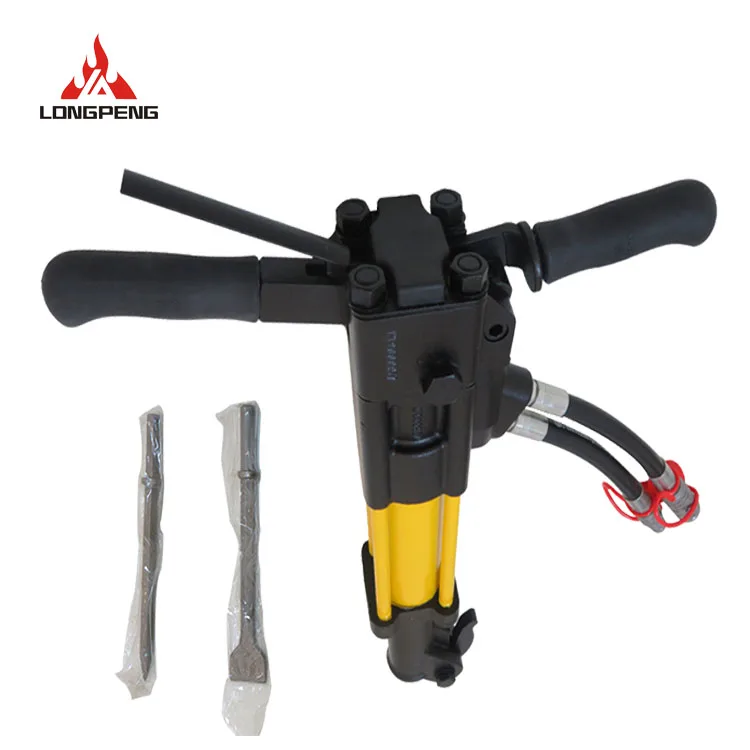

Hydraulic pickaxe

91.8% Response Rate

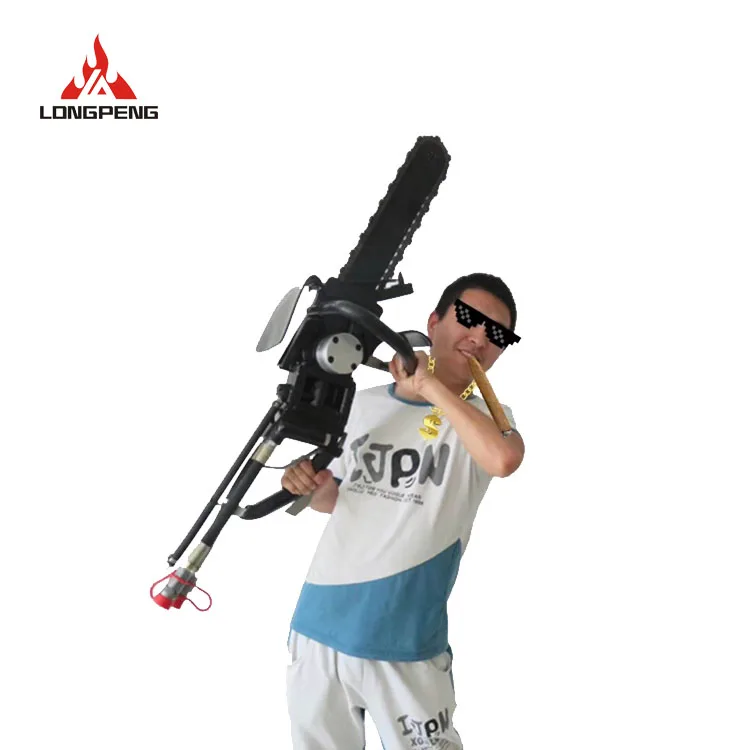

Hydraulic concrete semi circular saw

91.8% Response Rate

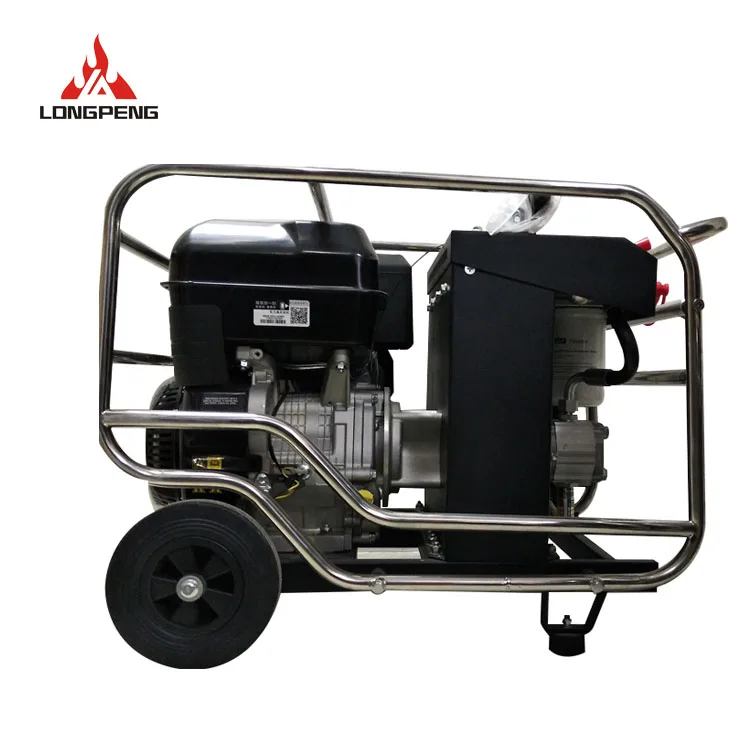

Hydraulic power station
