Double heating-chamber flat glass tempering furnace

Supplier: Luoyang Yuegao Glass Technology Co., Ltd.
Region: Henan, China
Contact: Ms. Sylvia Li
Price: $120000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T;	After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Warranty:	12 Months;	Ceramic roller:	Vesuvius;
Features:	Top grade hardware configuration, high automation , high reliability;	Glass thickness:	4-19mm;
Brand Name:	YUEGAO;	Condition:	New;
Usage:	Making Tempered Glass;	Technical standards:	GB9656,ECER-43,ANS197.1;

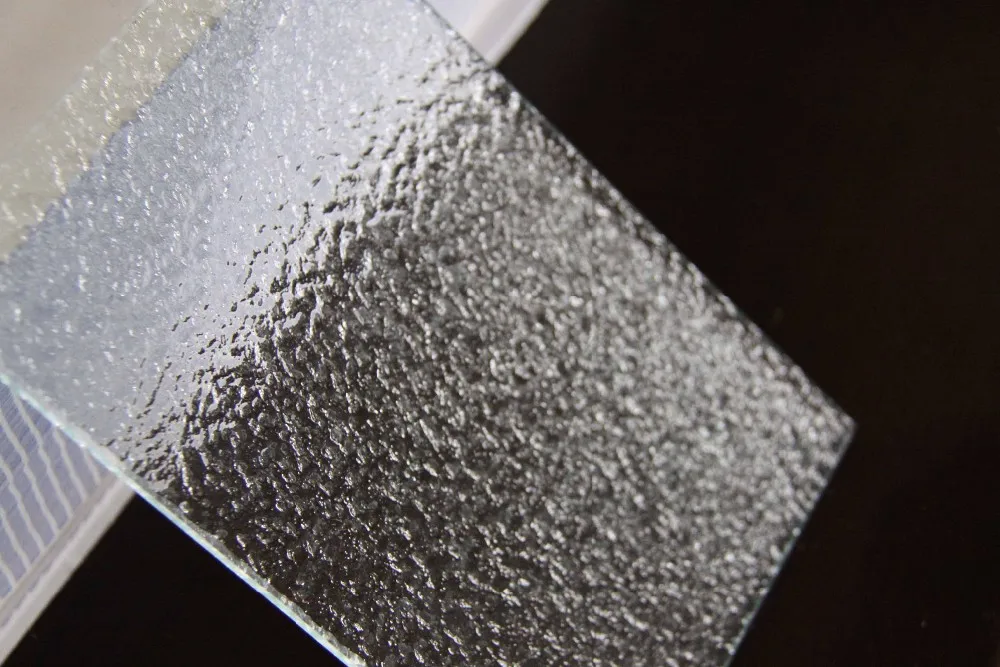

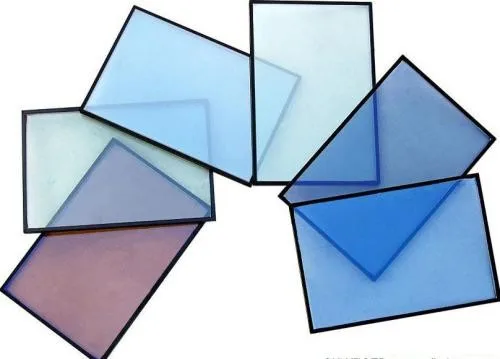

Voltage:	380V 50HZ /60HZ;	Processing ability:	float glass ,pattern glass ,coated glass ,Low-E glass etc;
Certification:	CE;	Machine Type:	Glass Tempering Furnace;
Color:	Customers' Request;	Supply Ability:	5 Set/Sets per Month;
Fan inverter:	Schneider;	Place of Origin:	Henan China (Mainland);
Button:	Schneider;	Port:	Qingdao,Tianjin;
Production Capacity:	15-18 Loads/h;	Weight:	30000kg;
PLC unit:	OMRON,Japan;	Power(W):	300-800Kw;
Packaging Detail:	Standard export container;

Brief Introduction

Application

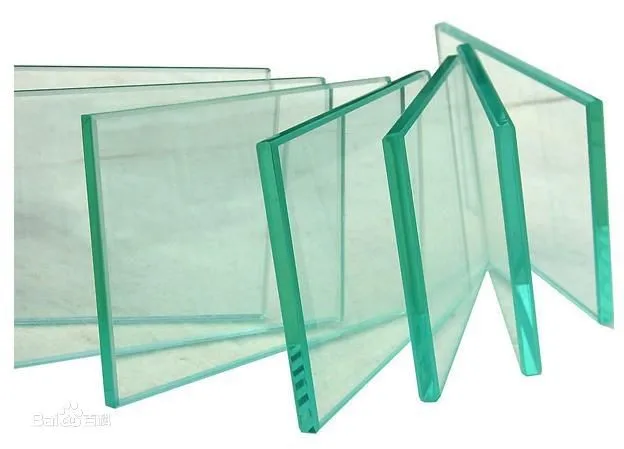

Produce Safety glass for glass curtain wall ,door &windows ,vehicles ,household appliances ,furniture, solar energy system glass and etc.

Feature

This series of machines adopted advanced and mature technology.the glass mould can be made low cost , the advanced structure of cooling chiller can ensure accurate and quick adjustment.

Model	Max./Min(mm).Glass	Glass Thickness(mm)	Note
YG-PGS1736	17003600 150280	4-19mm	3mm glass can be tempered accroding to special request.
YG-PGS1736A	17008000 150280
YG-PGS1742	17004200 150280
YG-PGS1742A	17009000 150280
YG-PGS2042	20004200 150280

Products Show

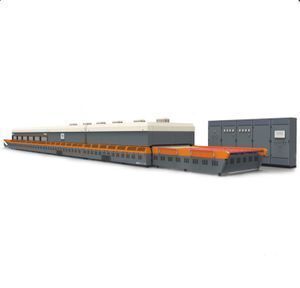

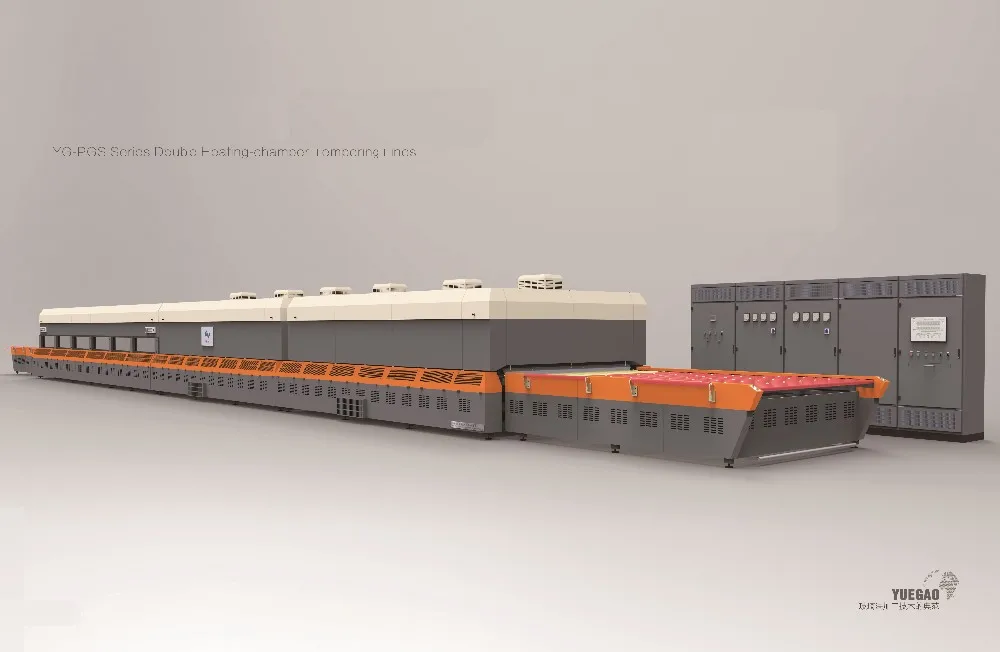

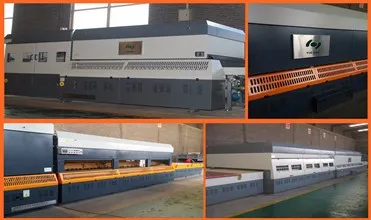

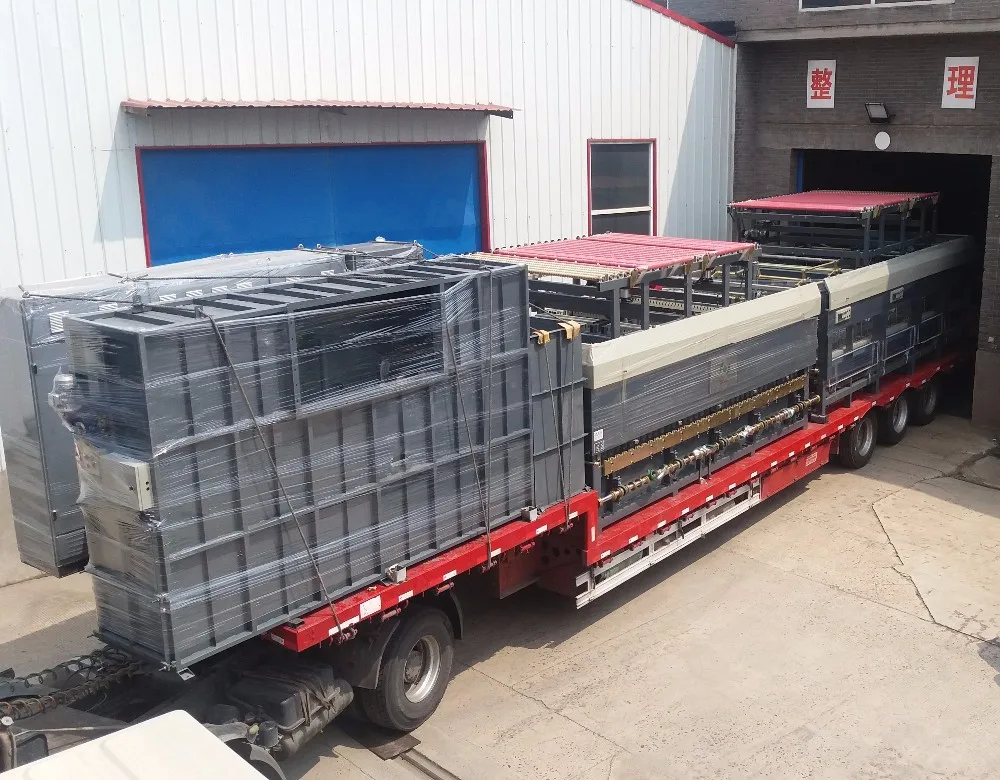

The machine appearance

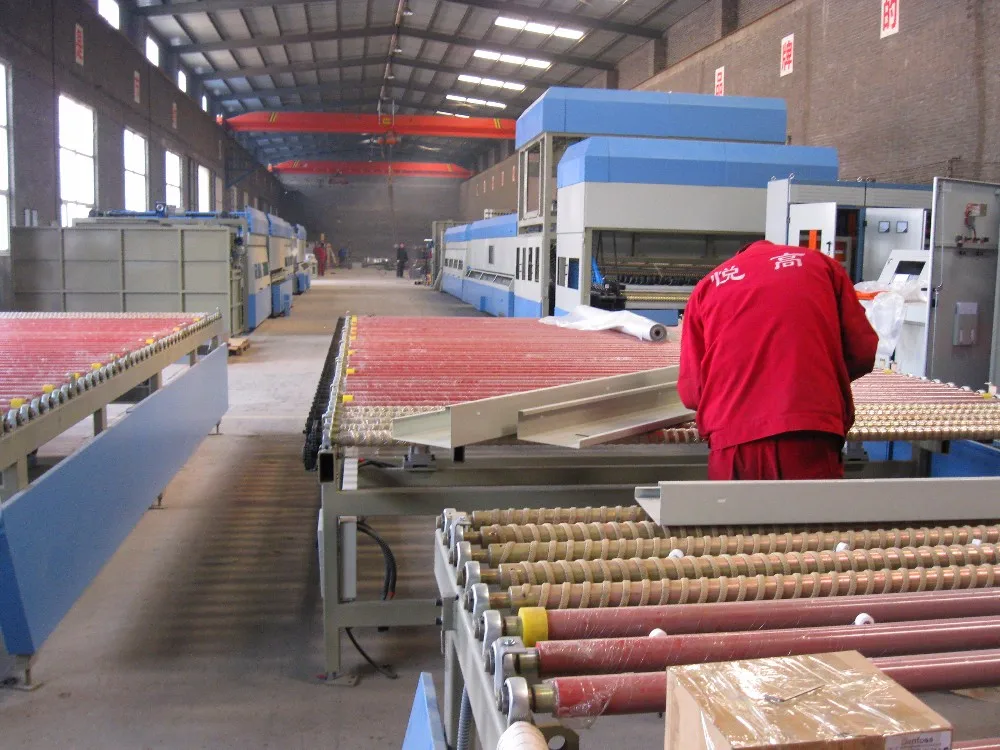

1.This tempering line include the loading table ,heating section,flat chiller section,unloading section fan system and control system.

2.We have our own design and development group, and can meet different customers demands .

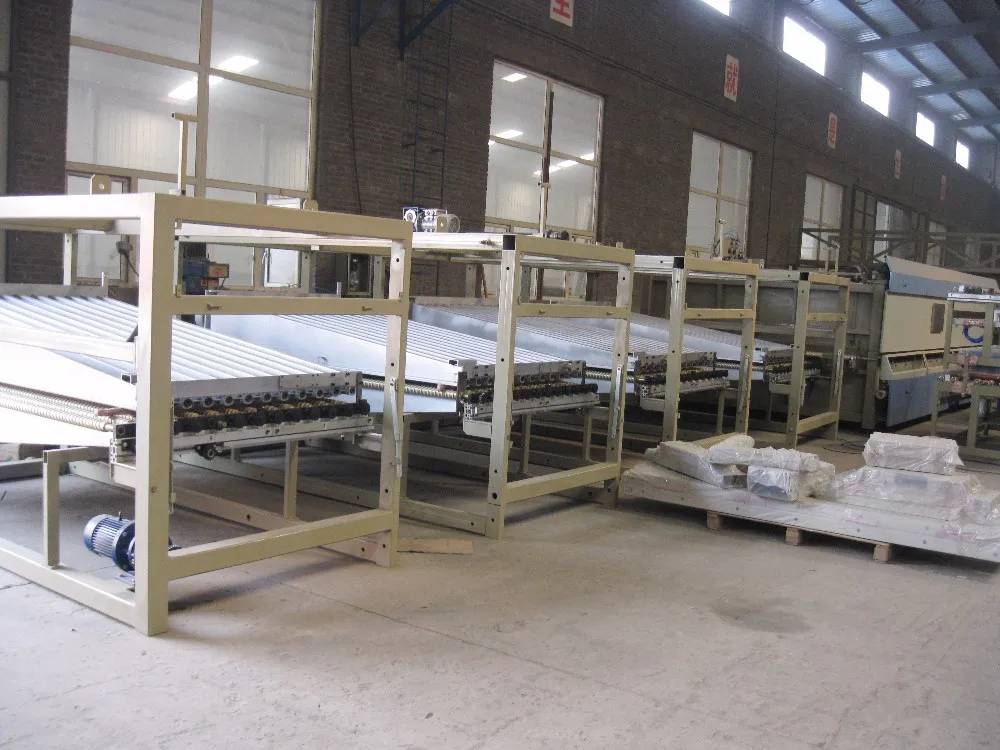

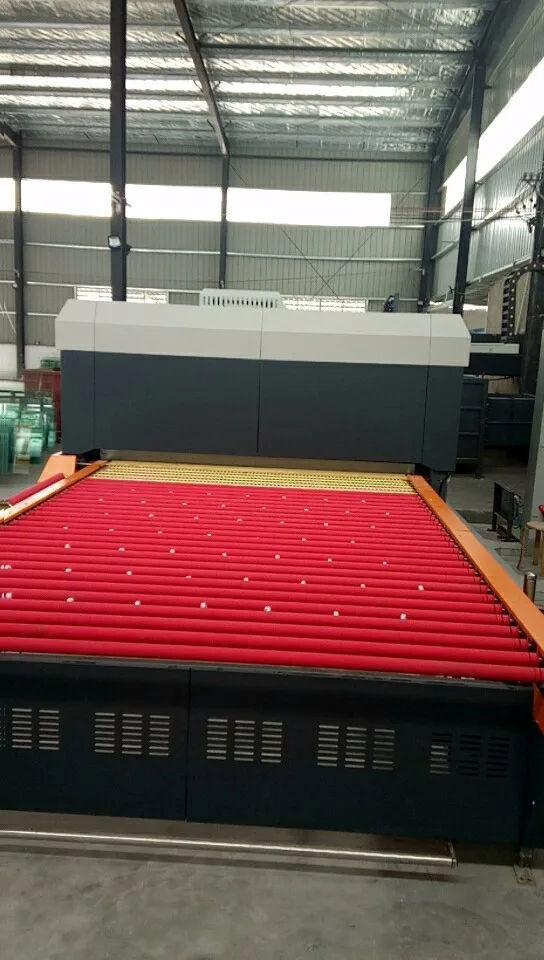

The loading /unloading table.

The loading/unloading table include rubber-coated rollers, loading drive motor ,photoelectric switch,supproting frame,side loading rubber coated rollers,etc.

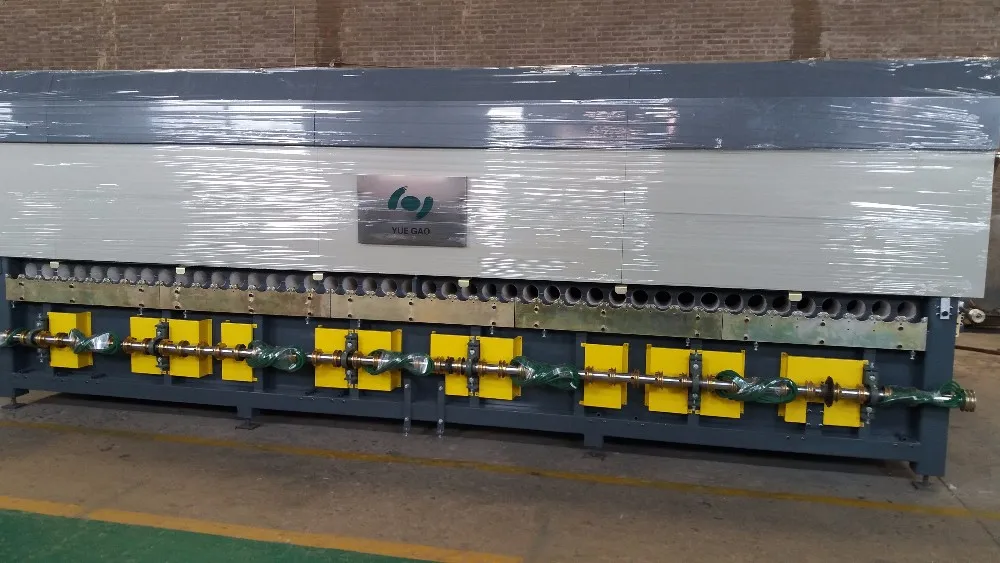

Flat chiller section.

The section includes conveying rollers ,the upper and lower chiller;chiller up/down device,air box and air balance system.

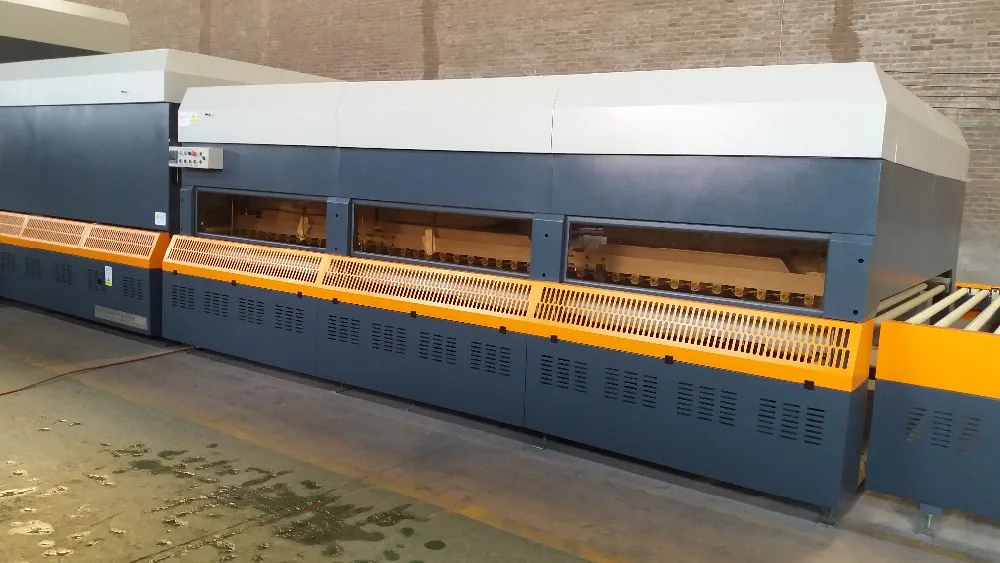

Heating section.

The section includes the furnace body,the roof lifting mechanism,heating system.thermal bslsnce system,ceramic rollers,drivng system,cooling device,length and temperature measuring devices

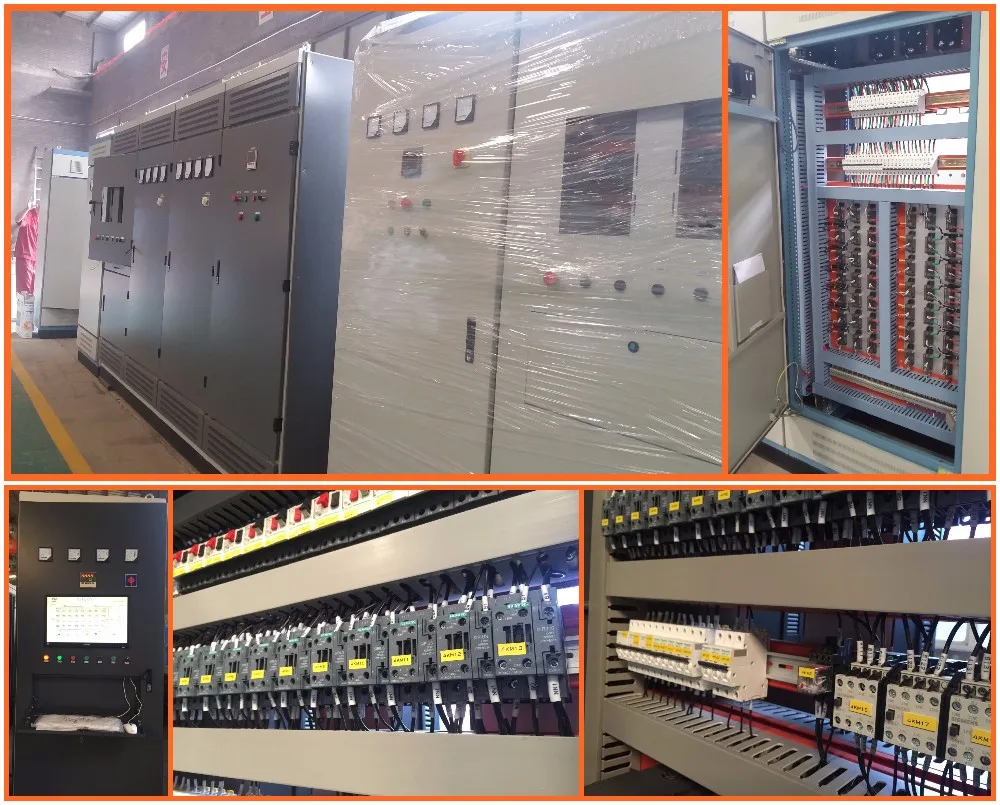

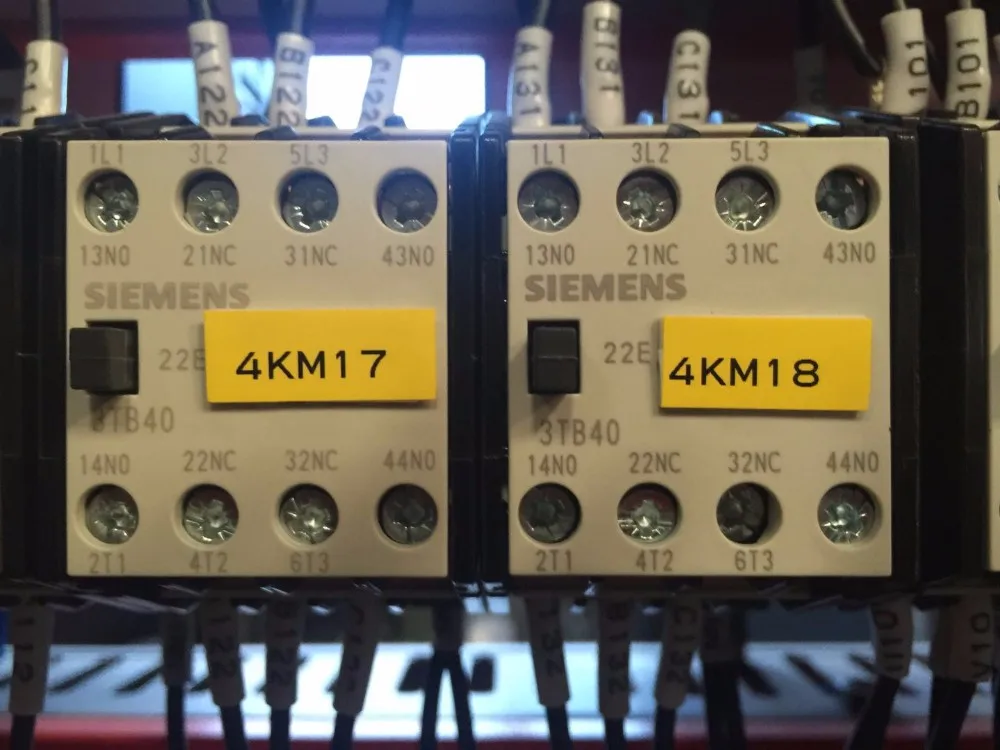

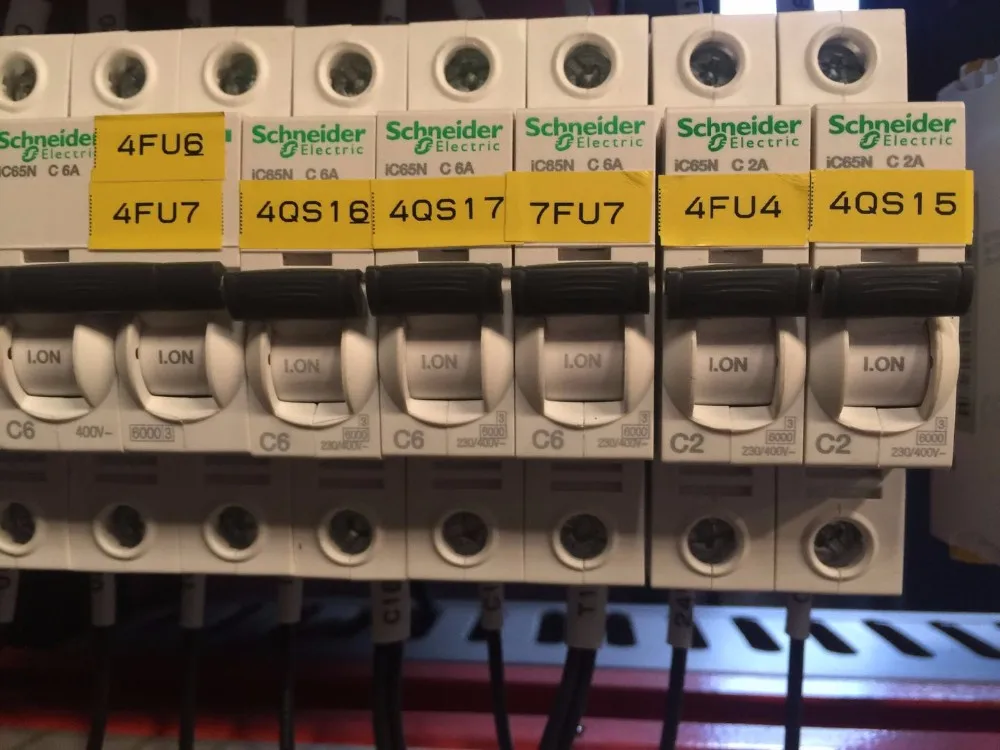

Control system.

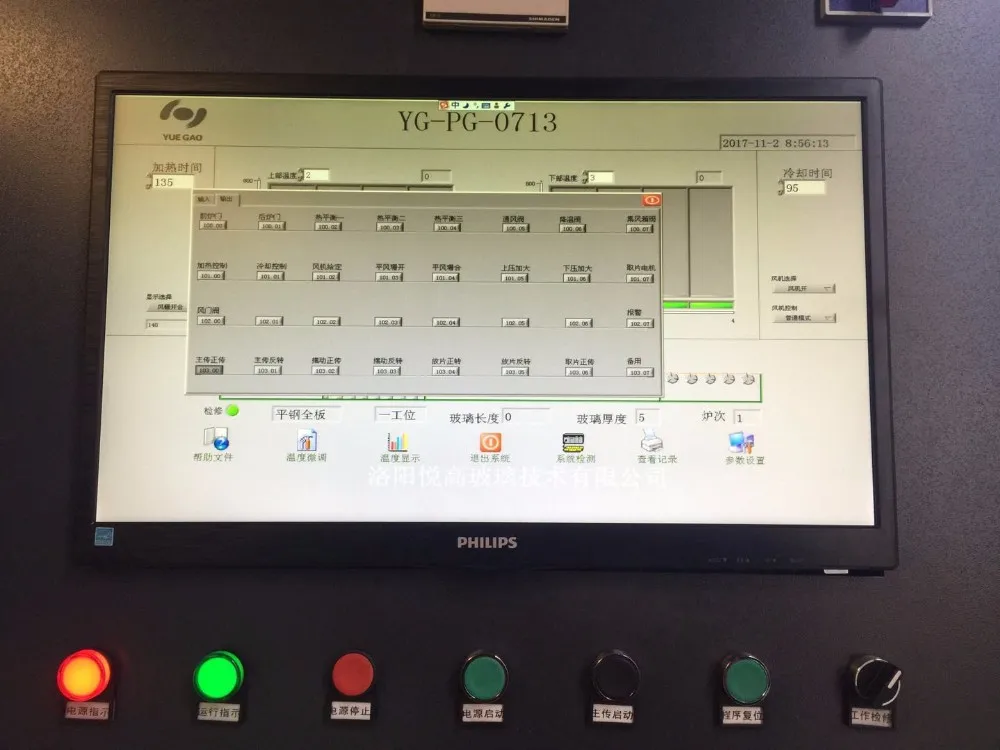

The control system consists of heating elements control system.transmission control system ,air supply control system.Most of control parts are in control cabinet.

Advantech Industrial Control Computer is chosen .Display screen is 19 inches LCD
