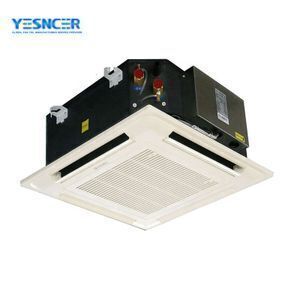

Central air conditioning HVAC cassette horizontal fan coil unit fcu units conditioners ceiling fans

Supplier: Baoding Yuexin Heating And Cooling Equipment Manufacturing Co., Ltd.
Region: Hebei, China
Contact: Mr Jackson Li
Price: $219.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Core Components:	Motor;	Volume:	1360m3/h;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Food Shop,Printing Shops,Construction works ,Food & Beverage Shops,Advertising Company;	Size:	800x800x290 mm;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Warranty:	3 years;
Dimension(LWH):	800x800x290 mm;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Use:	hall, office ,restaurant;	Video outgoing-inspection:	Provided;
Place of Origin:	Hebei China;	Local Service Location:	None;
Heating capacity:	37000btu;	Port:	Port Tianjin;
Brand Name:	Yesncer;	Packaging Detail:	There are three options for packaging The first:carton(normal) Second:Foam film(optional) Third:Customizable packaging (optional);
Weight:	31.5kg;	Noise:	46A;
After-sales Service Provided:	Free spare parts,Video technical support,Online support;	Key Selling Points:	Low Noise Level;
Power:	126w;	Brand:	Yesncer;
Warranty of core components:	3 years;	Machinery Test Report:	Provided;
Marketing Type:	New Product 2020;	Color:	White;
Certification:	ce;	Airflow:	3500m3/h1;
Showroom Location:	None;	Cooling capacity:	25000btu;
Supply Ability:	9000 Piece/Pieces per Month 4-way cassette fan coil unit;	Mounting:	Ceiling Mount;
Type:	Fan Coil Unit;	Operating Voltage:	230 VAC;
Condition:	New;

Central air conditioning

HVAC cassette horizontal fan coil unit fcu units conditioners ceiling fans

Main Features

1.Yesncer Fan coil unit cooling capacity: 2kw-13kw.

2.Industrial chiller use New Designment, Add Fresh air inlet pipe.

3.Automatic complete protection

Water shortage protection, high/low voltage protection, anti-freezing protection, overload protection, overheat protection and oil level protection ensure high reliability and stability.

4. More than 10 years customized experience

We done suceessful job on Pharmaceutical factory, Dairy factory, Chemical factory, Beverage factory, Plastic factory...

Application place

1.The low-noise three-speed capacitor motor of well-known domestic brands is adopted, with imported precision ultra-low-noise rolling bearing.

2.Three-dimensional spiral wind blade ensures wind volume and thinner shape, and irregular wind blade pitch greatly reduces operating noise.

3.The pipe of water collecting head adopts forged brass structure, which is reliable and durable.

4.Circular heat exchanger design, wind uniformity, seamless copper tube and new high-efficiency corrugated double curved open window hydrophilic aluminum foil fin, optimize flow design and effectively improve heat transfer efficiency.

5.Foam insulation, thickening foam insulation layer inside the fuselage, not easy to produce condensation beads in summer, not easy to corrode, and extend the service life.

4-way cassette fan coil unit

Model and performance		FP-136	FP-170	FP-204	FP-238
Rated air flow m3/h	high	1360	1700	2040	2380
	Medium	1030	1290	1500	1800
	low	690	860	1030	1200
Rated cooling capacity W	high	7200	9900	10800	12600
	Medium	5534	7512	8088	9681
	low	5534	5008	5554	6454
Rated heat W	high	10800	14500	16200	18900
	Medium	8179	11005	12353	14521
	low	5479	7335	8482	9681
The input power	W	126	128	152	198
The amount of water m3/h		1.08	1.58	1.78	1.92
Water press loss Kpa		25	39	44	46
Motor number		3	4

1. The rated air volume refers to the outlet static pressure of Pa.
2. Cooling operation parameters: inlet air dry bulb temperature is 27℃, humidity temperature is 19.5℃, outlet water temperature is 7℃, return water temperature is 12℃.
3. Heating condition parameters: inlet air dry bulb temperature is 20℃, inlet water temperature is 60℃, outlet water temperature is 50℃.

product process

our factory

About us

Baoding Yuexin is a professional manufacturer of cooling and heating equipment. We mainly produce horizontal concealed fan coils, cassette fan coils, universal exposed fan coils, and wall mounted fan coil unit for home. Our products are made of pure copper tubes and use Yongan motors, has the characteristics of high quality, super mute, comfortable style and reasonable price. We have independent R & D and design
team that can meet any comments and conditions you have on product customization and technology research and development. The chief engineer has many years of experience in the HVAC industry,developed hundreds of independent large-scale projects and has won unanimous praise from customers.
We have strong sales network system and multiple mature and stable e-commerce platforms. Our products are mainly exported to Europe, America, the Middle East and Southeast Asia, and old customers account for up to 30%. We have perfect after-sales service system, free replacement of qualified new products for products with quality problems at the factory, simple and easy return and exchange procedures, and delivery
of high-quality products in the shortest time to ensure that customers have no worries about purchases. We sincerely recruiting global cooperation agents.
You can enjoy local customer resource protection policy, R & D technical support policy and one-stop support for e-commerce to help you online marketing, welcome to join us!
