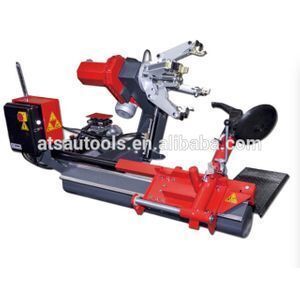

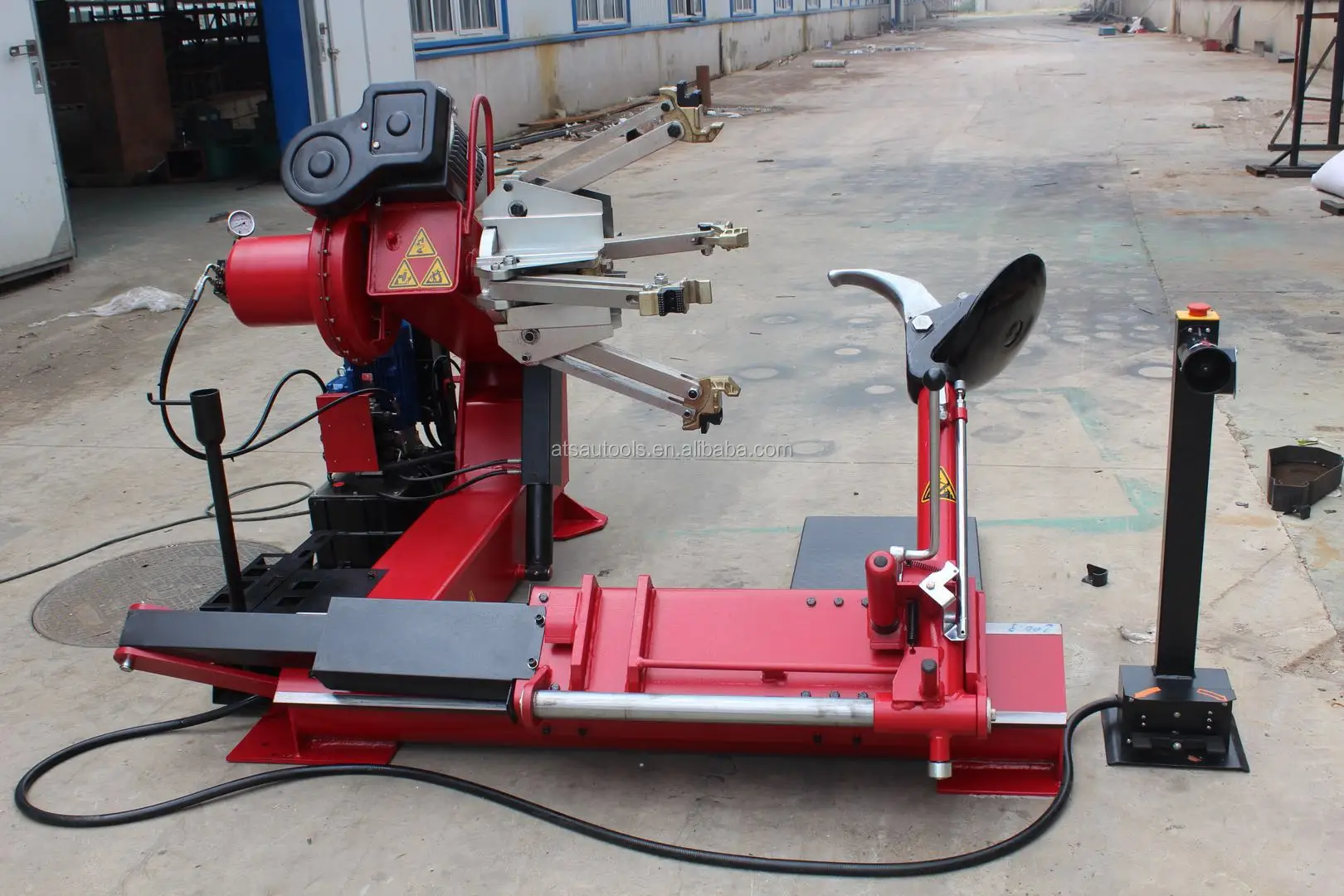

Truck Tyre Changer 14"-26"

Supplier: Jiaxing Atlas Tools Co., Ltd.
Region: Zhejiang, China
Contact: Mr Kevin
Price: $1800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	FOB SHANGHAI/ NINGBO;	GROSS WEIGHT:	570kg;
Warranty:	1 Years;	Supply Ability:	5000 Set/Sets per Month;
Model Number:	T568;	Color:	red,blue or customized;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Max. wheel diameter:	1600mm;
Motor Power:	3.3KW 380V - 3PH - 50HZ;	Max. wheel width:	780mm;
Power Supply:	110V/220V/380V;	Brand Name:	OEM;
Packing size:	203x160x100cm;	BEAD BREAKER FORCE:	2500kg;
Rim diameter:	14" - 26";	Place of Origin:	Zhejiang China (Mainland);
Packaging Detail:	CANTON PACKAGE;

Product Description

TECHNICAL DATA

Rim Diamter	14" - 26"
Max.wheel weight	500kg
Max Wheel Width	780mm
Max Tyre Diameter	1600mm
Hydraulic Pump Motor	1.5KW 380V - 3PH(220V Optional)
Gearbox Motor	2.2KW 380V - 3PH(220V Optional)
Bead Breaker Force	2500kg
Max.Torque	6457N.m
Operation Control Voltage	24V
Machine Weight Approx	517kg
Overall Dimensions Approx	2500×2000mm
Power	220/400V 50/60HZ 1P/3P Optional

PRODUCTS INTRODUCTION
· Semi-Auyomatic truck tyre changer t568 universal
· Self-Centering chuck rim capacity 14"-26"
· Clochwise and anticlockwise rotation of chuck
· Italian pump optional
