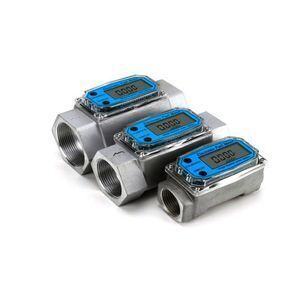

ESMWl-25 20-100L/min1 inch turbine flowmeter liquid diesel water gasoline methanol pipeline electronic digital flow meter

flowmeter 2

ESMWl-25 20-100L/min1 inch turbine flowmeter liquid diesel water gasoline methanol pipeline electronic digital flow meter

Description

    This product adopts the control panel modular design, with fully functional, simple structure, convenient operation, etc

    Can be widely used in petroleum and chemical medicine food to industrial and commercial transportation.

Features

1.For low viscosity fluids, such as Urea, Methanol, Ethanol, Sulfuric acid, Diesel Fuel, Kerosene etc.

2.Easy to install, in line or at the end of a delivery pipe or behind the nozzles.

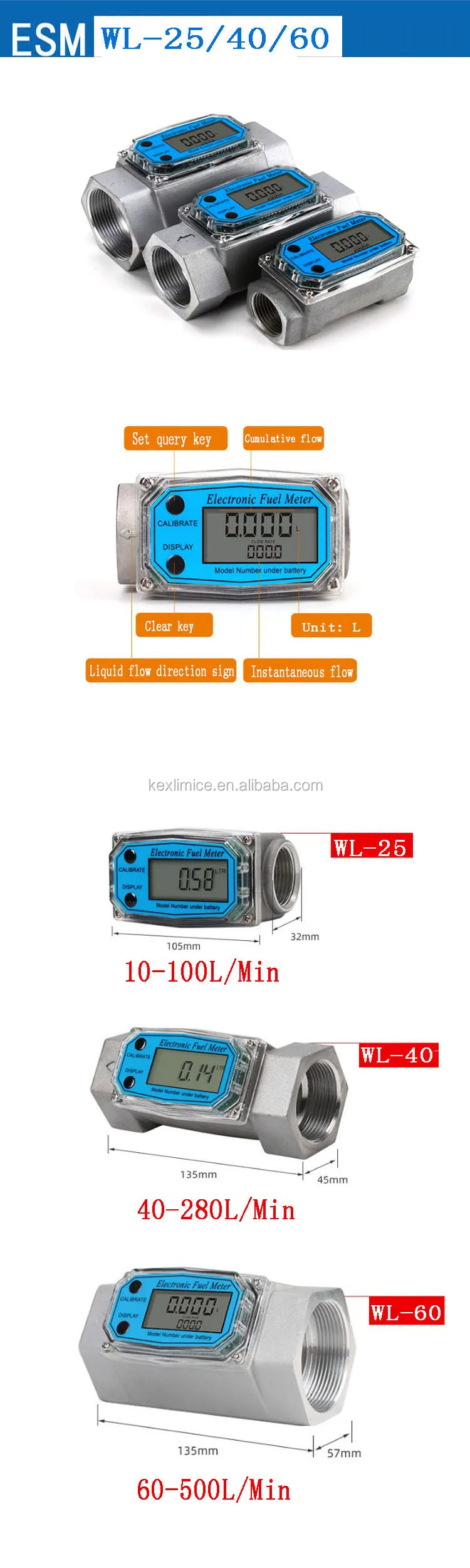

3.Equipped with adjusting screen for easy reading.

4.Change measurement unit as you like, keep working statusat the same time without.

5.High precision and long battery life(2years).

Working principle

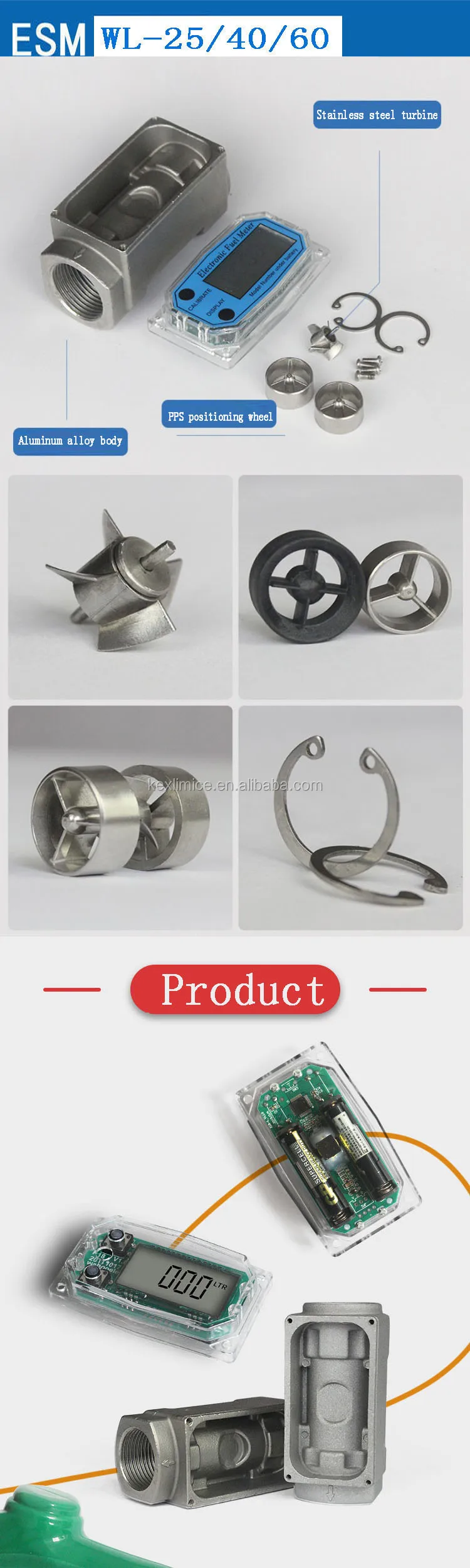

Fluid entering the meter passes through the guide vane which reduces its turbulent flow pattern and improves the fluid's velocity profile.

Fluid then passes through the turbine, causing it to rotate at a speed proportional to fluid velocity. As each turbine blade passes through the magnetic field at the base of the transducer, an AC voltage pulse is generated in the pick-up coil.

These pulses produce an output frequency proportional to the volumetric flow through the meter.
