BYC -400 Sophisticated pill Sugar coating machine Products from Guangzhou Duoshun Machinery Co., Ltd.

Product Details

Function:	Sugar coating machine;	speed(r/min):	0-46;
After-sales Service Provided:	Video technical support;	Feature:	evenly coated;
Usage:	Pharmaceutical;	heating power/KW:	1.5;

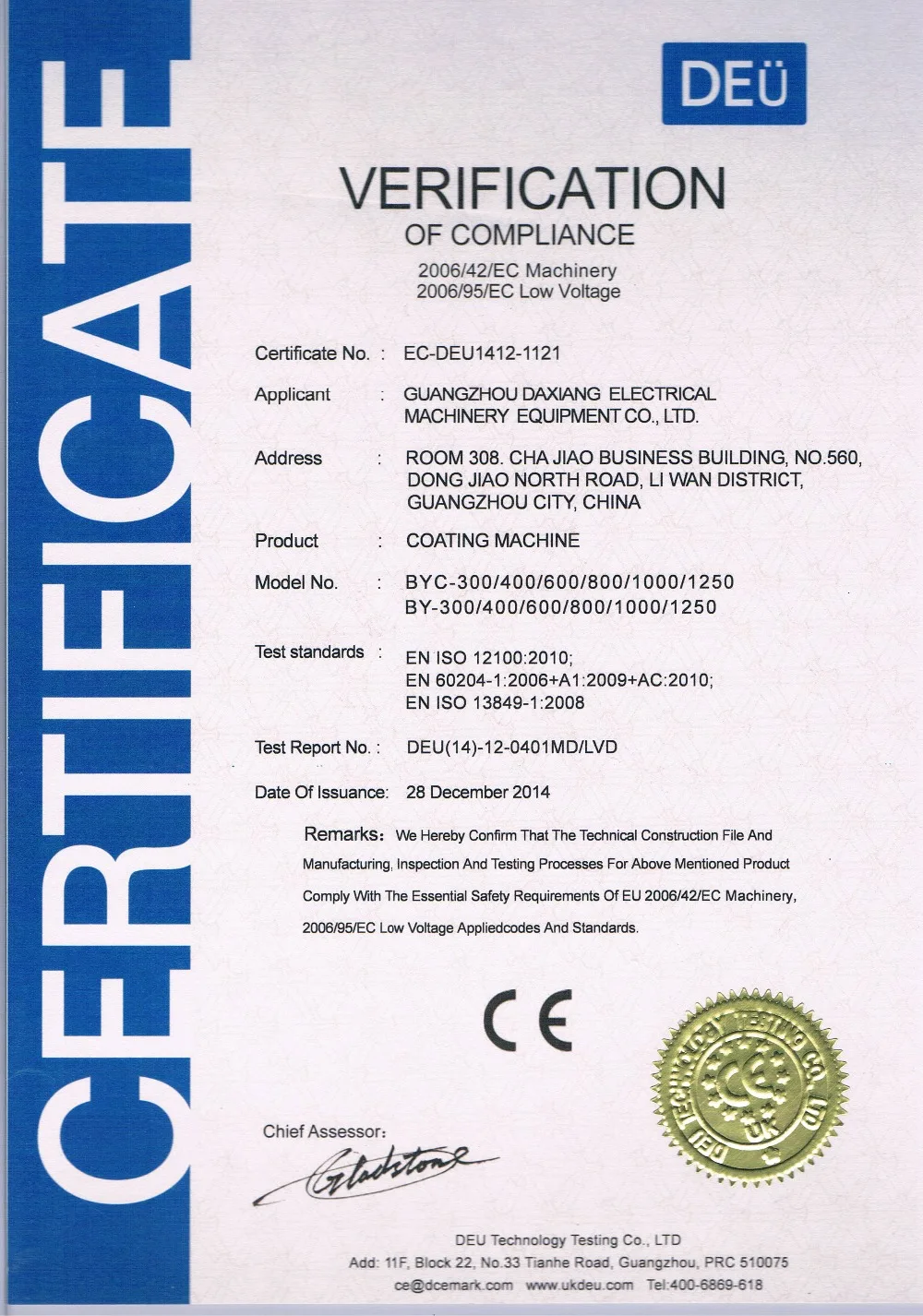

Power(W):	0.55kw;	Certification:	CE;
Weight:	75kg;	Voltage:	220V 380V;
Brand Name:	DUOSHUN;	Port:	guangzhou;
pot body angle:	30°;	After-sales Service Provided:	Engineers available to service machinery overseas;
Place of Origin:	Zhejiang China (Mainland);	Capacity(kg/time ):	2-5;
Type:	Coating Machine;	Material:	Stainless Steel;
Dimension(LWH):	700650970mm;	Warranty:	1 Year;
Packaging Detail:	wooden case /carton;	fan power(w):	40;
Payment Terms:	L/C,D/P,T/T,paypal;	Condition:	New;
Supply Ability:	50 Set/Sets per Month;

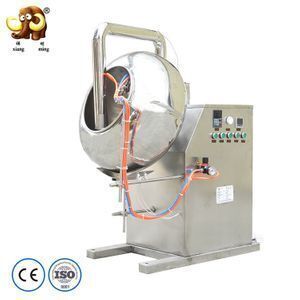

BYC -400 Sophisticated pill Sugar coating machine

Product Description

Sample Display :

Introduction and features:

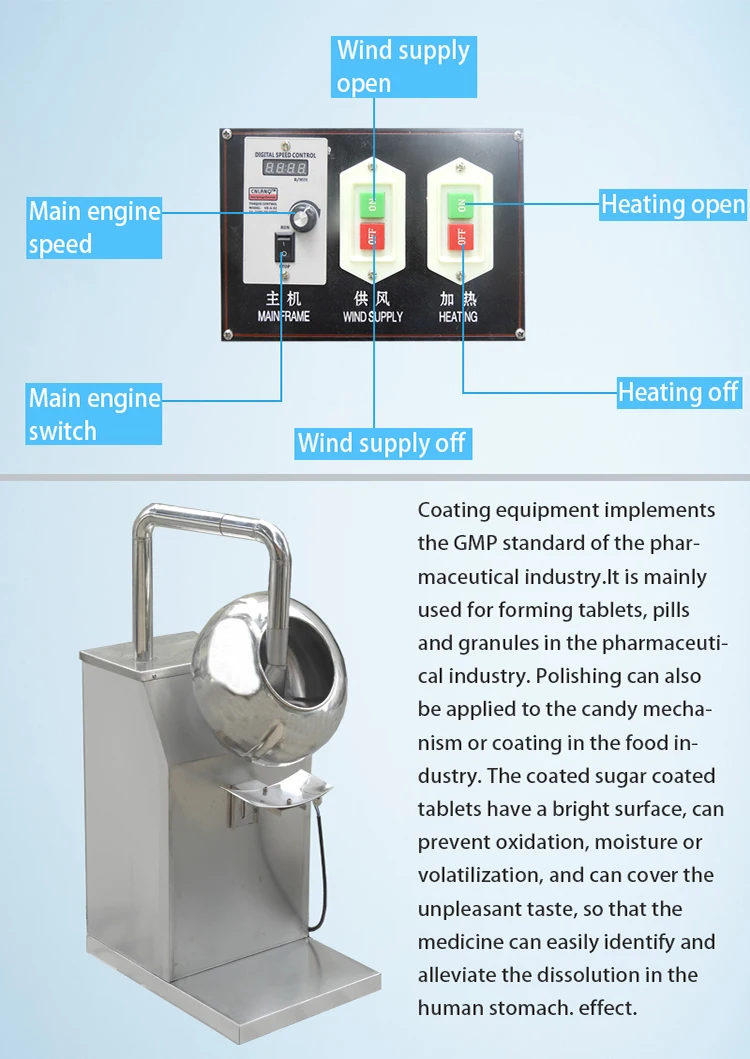

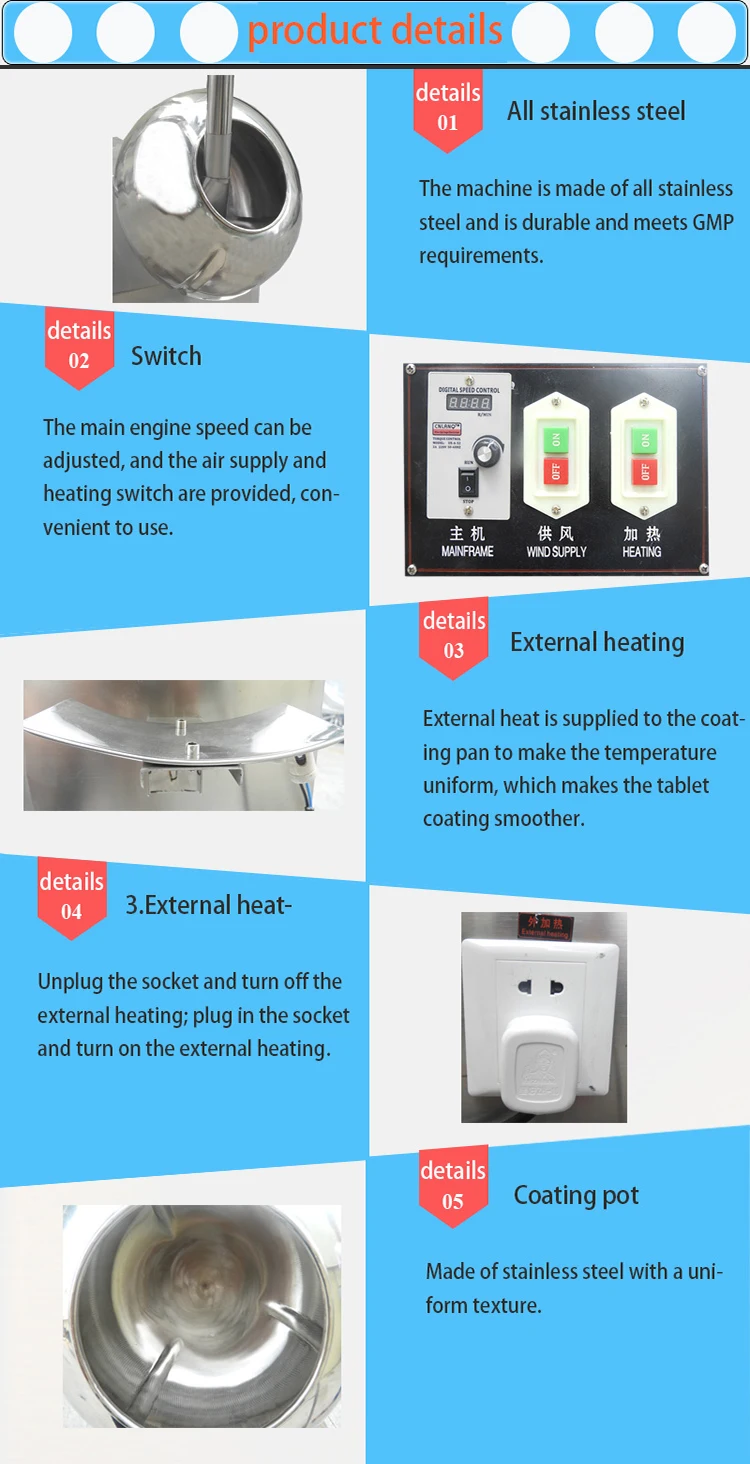

The machine has the features of that easy to operate, partial smooth, bright, delicate, saving materials, the advantages of easy maintenance, etc.

This machine is to icing, western medicine patches of core in appearance, such as thin film coating equipment, is of strong/feebleness electricity, hydraulic, pneumatic in set in integration, to transform the original ordinary coating machine of new equipment.

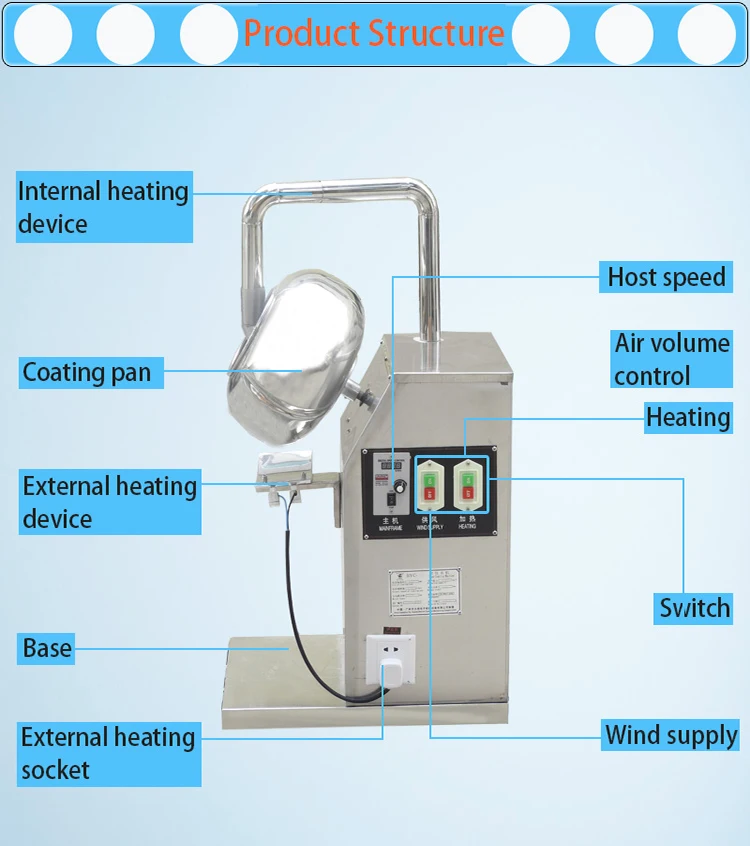

Mainly composed by the host (the original coating machine), controllable temperature hot air system, automatic spray system for liquid gas supply and other parts.Main motor frequency control of motor speed.It is with the electrical automatic control method, coating materials with high atomized spray gun to pill on the surface, and make continuous tablets in the coating pan complex trajectory, the coating liquid evenly package on the tablets of the tablet core.Pot with controllable temperature hot air to dry tablets making pill surface rapidly forming strong, fine, full and smooth.

Technical parameters:

model	capacity(kg/time )	pot angle	motor power(kw)	fan power(w)	sprayer	seze(mm)	heating power	weight	speed(r/min)
BYC300	1-3	30°	0.55	40	RA-C1	700/650/970	1KW	70KG	0-46
BYC400	2-5	30°	0.55	40	RA-C1	700/660/970	1.5KW	75KG	0-46
BYC600	8-15	30°	0.75	60	depend on require	840/760/1310	2KW	150KG	0-32
BYC-800	30-50	30°	1.1	200		1000/1000/1550	4KW	280KG	0-32
BYC1000	50-70	30°	1.5	200		1300/1000/1600	4KW	300KG	0-32
BYC1250	80-150	30	2.2	370		1350/1350/1680	4KW	500KG	0-28

Guangzhou Duoshun Machinery Co.,Ltd ,professionally manufactures all kinds of chemical and pharmaceutical machinery, such as stainless steel traditional Chinese medicine pulverizer, herbal pulverizer, new sealing grinder, small stainless steel grinder, fast-opening grinder, automatic pill-making machine, herbal pill-making machine, capsule-filling machine, herbal-slicing machine, herbal ultramicro pulverizer, stream type pulverizer, continuous feeding pulverizer, stainless steel grain grinder, milling machine, food oven, industrial dryer, small packaging machine and so on.We have complete sets of equipment, perfect production processes and strong technical forces. The establishment of ISO9001-2000 international quality management system,helps us to provide the leading pharmaceutical equipment which meet the requirements of GMP to cusomers.We believe in the business philosophy of “customer first, forge ahead”. Adhering to the principle of “customer first”, we provide customers one-stop services, and guarantee customers’ 100% satisfaction through good quality and credibility. Welcome your patronage!
