Blast freezer Bitzer semi-hermetic screw 2FES-2 two stage compressor refrigeration equipment system condensing unit

Supplier: Guangzhou Xi Maike General Refrigeration Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Zoe Lee
Price: $100.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Compressor:	bitzer;	Payment Terms:	L/C,D/P,T/T,Western Union;
Color:	Green;	Product name:	bitzer condensing unit;
suction line:	16;	Certification:	CE;
liquid line:	9.52;	Voltage:	380v;
Type:	Compressor;	Place of Origin:	Guangdong China (Mainland);
Port:	Huangpu port;	Cooling capacity:	2450w;
power:	1.68;	Warranty:	Unavailable;
After-sales Service Provided:	No after-sales service;	Brand Name:	XMK;
compressor model:	2FC-2.2;	Supply Ability:	1000 Piece/Pieces per Month;
Packaging Detail:	packed with wooden case;	Refrigerant:	R404/R22;

Product Description

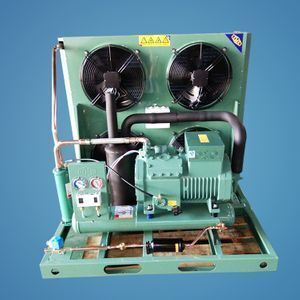

This open type condenser unit is mainly assembled with Bitzer semi-hermetic compressor, other brand compressors are also optional.

1. Open-type style makes it easier for moving, installation and maintenance.
2. High and low pressure controller are designed to protect the whole compressor system when the equipment breaks down or overloads.
3. Main components are Bitzer compressor, condenser, receiver tank, filter drier, solenoid valve, pressure controller, pressure gauge, connection box and electrical controller box etc.

Technical Parameters

Bitzer Compressor
New model	Compressor model	Power	Capacity	Connection		Outiline size			Installing size
New model	Compressor model	KW	W	Suction line	Liquid line	A	B	C	a	b
2HES-2	2HC-2.2	1.6	3450	ø16	ø9.52	1050	750	555	729	750
2GES-2	2GC-2.2	1.87	4070	ø16	ø9.52	1050	750	555	729	750
2FES-3	2FC-3.2	2.29	4980	ø16	ø9.52	1100	750	655	770	750
2EES-3	2EC-3.2	2.63	6270	ø22	ø9.52	1100	750	655	770	750
2DES-3	2DC-3.2	3.17	7500	ø22	ø9.52	1100	750	655	770	760
2CES-4	2CC-4.2	3.9	9250	ø22	ø12.7	1250	800	705	955	800
4FES-5	4FC-5.2	4.06	9800	ø22	ø12.7	1250	800	655	925	800
4EES-6	4EC-6.2	5.21	12480	ø28	ø12.7	1300	800	705	950	800

We are a manufacturer, we can customize products for you according to your requirements.If you don't know which model is suitable for you, you could send message to us.We have several professional engineers to make a customized solution for you.

We can provide a complete set of cold storage equipment.
