30w 50w pipeline bearing fiber laser marking machine laser marking machine all in one fiber marking machine

Click here to contact

Product details

Laser power:	30W raycus;	Package Preview:	;
Certification:	ce;	Application:	Laser Marking;
Control Software:	EZCAD;	Voltage:	110V/220V;
Condition:	New;	Filed lens:	Laserhous;
Laser Source Brand:	RAYCUS;	Laser Type:	Fiber Laser;
Galvanometer:	Scanleb;	Control system:	EZCAD (Original version);
Cooling Mode:	Air Cooling;	Laser source:	Raycus;
Working Accuracy:	0.02mm;	Brand Name:	SHUBIN;
Place of Origin:	Shandong China;	Selling Units:	Single item;
Use for:	Marking on all kinds of metal and some non-metal;	Working area:	150*150mm;
Single package size:	15X15X15 cm;	Packaging Detail:	STRONG PLYWOOD PACKAGE;
Single gross weight:	50.0 KG;	Marking Head Brand:	scanleb;
CNC or Not:	yes;	Cooling:	air cooling;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	After-sales Service Provided:	Online support,Video technical support;
Key Selling Points:	High Productivity;	Warranty:	1 year for machine, 3 years for laser source;
Graphic Format Supported:	AI,PLT,DXF,BMP,Dst,Dwg,LAS,DXP;	Optional:	Rotary axis;

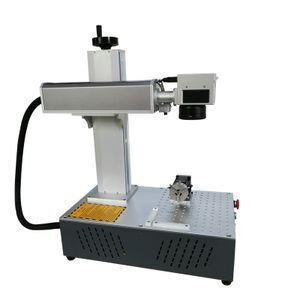

Fiber Laser Marking Machine 20W/30W Raycus ,working size 150*150mm 200*200mm (other working size aviable)

Laser form

Model	Fiber Laser Marker
Laser Power	20W / 30W Raycus
Supports Graphical Format	PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF
Beam Quality	M2<2
Power Stability	(8h)<±1%rms
Pulse Repetition Frequency	20KHZ----100KHZ
Power Consumed	<800W
Minimum Line Width	50μm
Minimum Character	0.3mm
Laser Wavelength	1064nm
Working Size	110110mm 150150mm 200200mm 300300mm
Whole Machine Power	500W
Cooling Way	Air Cooling
Operating Voltage	110/220V ±10%, 50/60Hz
Ambient Operating Temperature	15℃-35℃
Packing	Plywood Wooden Packaging
Red Pointer	Double Red Pointer
Galvanometer	Scanleb
Filed Lens	Laserhous
Laser Source	Raycus
Optional	Rotary axis
Control system	JCZ (EZcad)
