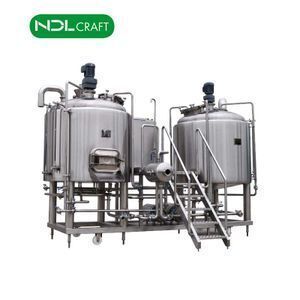

Per Batch 100L 200L 300L 500L 1000L Beer Brewing Equipment Micro Brewery

Supplier: Shandong Shendong Fermentation Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr NDLCRAFT Team
Price: $5699.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	3500KG;	Place of Origin:	Shandong China;
Heating way:	Electricity/Steam/Fire;	Local Service Location:	Canada,United Kingdom,United States,France,Germany,Australia;
Cooling way:	Dimple plate cooling;	Brewhouse type:	2/3/4 vessels;
Port:	Qingdao/Tianjin/Shanghai/Ningbo/Shenzhen port and so on;	After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;
Power:	35KW;	Plate type:	Mirror polishing/2B/wire Drawing;
Insulation:	Polyurethane/rockwool;	Control system:	PID/PLC;
Packaging Detail:	1. LCL/FCL(20GP/40GP/40HQ) 2. Packed with plastic film in fumigation free wooden case or fixed with iron frame 3. Up to export standard, suitable for delivery 4. Customer's requirements available.;	Applicable Industries:	Hotels,Manufacturing Plant,Food & Beverage Factory,Restaurant,Food Shop,Food & Beverage Shops;
Supply Ability:	20 Set/Sets per Month 100L 200L 300L 500L 1000L Beer Brewing Equipment Micro Brewery;	Warranty:	5 years;
Showroom Location:	Canada,United Kingdom,United States,France,Germany,Australia;	Package Preview:	;
Dimension(LWH):	35 Cubic Meter;	Condition:	New;
After-sales Service Provided:	Field installation, commissioning and training,Engineers available to service machinery overseas;	Material:	SUS304/SUS316/red Copper;
Brand Name:	NDL Craft;	QA & QC:	Yes;
Certification:	CE ISO BV SGS;	Processing:	Fermenting Equipment;
Name:	100L 200L 300L 500L 1000L Beer Brewing Equipment Micro Brewery;	Payment Terms:	L/C,D/A,T/T,Western Union,Alibaba Trade Assurance;
Voltage:	220/380V or customization;	Processing Types:	Craft Beer;

Per Batch 100L 200L 300L 500L 1000L Beer Brewing Equipment Micro Brewery

Related Products

All our professional food-grade stainless steel beer brewing equipment with your special and innovated idea to make it practical and popular in the world. Welcome your new design on our standard brewing equipment and get more suitable in your local brewing market. Welcome your any new inquiry at anytime.

Product Description

1. 500L Brewery Configurations

Milling system	Malt miller	300-500kg/h	1pcs
	Auger(option)	Ability is 1000-1500KG/h	1pcs
	Hopper(option)	Volume is 0.5m3. SUS 304 with pre-masher	1pcs
Brewhouse	Mash tun/ Lauter tank	Volume is 500L, with false bottom, grant, raker with motor	1pcs
	Kettle/Whirlpool tank	Volume is 500L, electric heating	1pcs
	HLT water tank	Volume is 1000L, electric heating	1pcs
	Includes plate heat exchanger, wort pump, motors, hops filter, yeast adding tank, oxygen device and pipelines
Fermenting	Fermenters	Volume is 500L or 1000L (double batches)	6pcs
	BBT(option)	Volume is 500L or 1000L (double batches)	2pcs
	Racking arm, spunding valve, pressure gauge, carbonation stone, sample valve
Cooling system	Glycol tank	Volume 1000L or 1500L	1pcs
	Cold water tank(option)	Volume 1000L, cooled by glycol tank	1pcs
	Chiller	3HP, Copeland	2pcs
Cleaning	CIP	50L two tanks, heated by electric, with pump and trolley	1pcs
Controlling	Control cabinet	PLC touch screen or PID controller	1pcs

2. 500L Mashing System

NDL Craft experienced team of engineers and brewers work together to design every brewhouse. We meticulously focus on the details, like pump and valve placement, aiming to maximize brewhouse efficiency and ease of use. With a NDL Craft Brewhouse you will hit your gravity targets quicker and run up and down the platform less often.

Send Inquiry>>

Click to Contact Us Now!!!

3. 500L Fermentation System

NDL Craft professional fermenters are made from stainless steel as it is easy to clean and can be reused almost indefinitely. They all have a valve at the very bottom of the cone which can be used to remove sediment, and also drain the finished beer for bottling or kegging when done. Most also have a second port higher on the cone which can be used to draw samples of beer for measurement or tasting.

1). A serials of the fermetation tanks

Fermentation tank series	Volume in US Gallon	Diameter	Height
100l Fermentation tank	26US Gallon	640mm	1500mm
200l Fermentation Tank	53US Gallon	760mm	1800mm
300l Fermentation Tank	79US Gallon	860mm	2000mm
500l Fermentation Tank	132US Gallon	960mm	2350mm
1000l Fermentation Tank	264US Gallon	1260mm	2650mm
2000l Fermentation Tank	528US Gallon	1560mm	3150mm
3000l Fermentation Tank	793US Gallon	1800mm	3550mm
5000l Fermentation Tank	1321US Gallon	2000mm	4450mm
10000 Fermentation Tank	2642US Gallon	2200mm	6100mm
