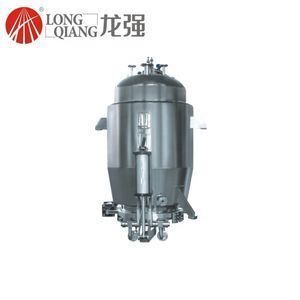

Natural color/Pigment dye extraction tank

Product details
Place of Origin:Zhejiang China;Packaging Detail:Wooden case;
Application:Pharmacy factory,food,juice and beverage factory;Port:Ningbo Port;
Processing:Solvent extraction;Supply Ability:200 Set/Sets per Month;
Brand Name:Longqiang;Construction material:SUS304,SUS316;
Payment Terms:L/C,T/T;
Herbal extraction tank

1.Description

The Extractor is used to extract the active ingredient from medicinal materials in Chinese medicine, food and chemical area.



2.Construction material:SUS304,316L



3.Consists of: Defoamer, condenser,cooler, oil&water separator,filter and product transfer pump etc.



4.Parameters:

Model \ Item

TQ-Z-1.0

TQ-Z-2.0

TQ-Z-3.0

TQ-Z-6.0

TQ-Z-8.0

TQ-Z-10

Volume

1200L

2300L

3200L

6300L

8500L

11000L

Pressure in tank

0.09Mpa

Pressure of jacket

0.3Mpa

Pressure of compressed air

0.6-0.7Mpa

Diameters of material inlet (mm)

400

400

400

500

500

500

Heating area(M2)

3.0

4.7

6.0

7.5

9.5

12

Condensing area(M2)

4

4

5

5

8

10

Filtering area(M2)

3

3

3

5

5

6

Diameter of sewage outlet (mm)

800

800

800

1000

1000

1000

Energy consumption(Kg/h)

245

325

345

645

7200

8500
