Aviation Aluminum Softgel Capsule Die roll tooling Softgel Mold cuter for paintball with wedge

Supplier: Beijing Kun You Pharmatech Co., Ltd.
Region: Beijing, China
Contact: Ms congjuan guo
Price: $1500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Standard:	GMP;	Brand Name:	KUNYOU;
Port:	Tianjin;	die roll:	softgel mold;
Place of Origin:	Beijing China;	Packaging Detail:	export wood case.;
Supply Ability:	30 Set/Sets per Week;	Payment Terms:	L/C,T/T;
brand:	Kunyou;	Application:	Softgel encapsulation;
Material:	high hardness aluminum alloy;	Brand:	USPE/SunShine;

Product Description

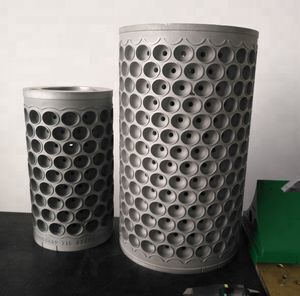

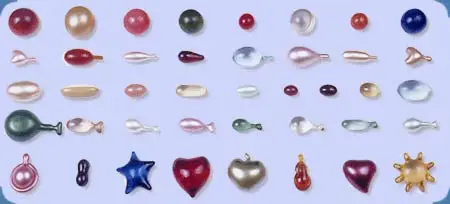

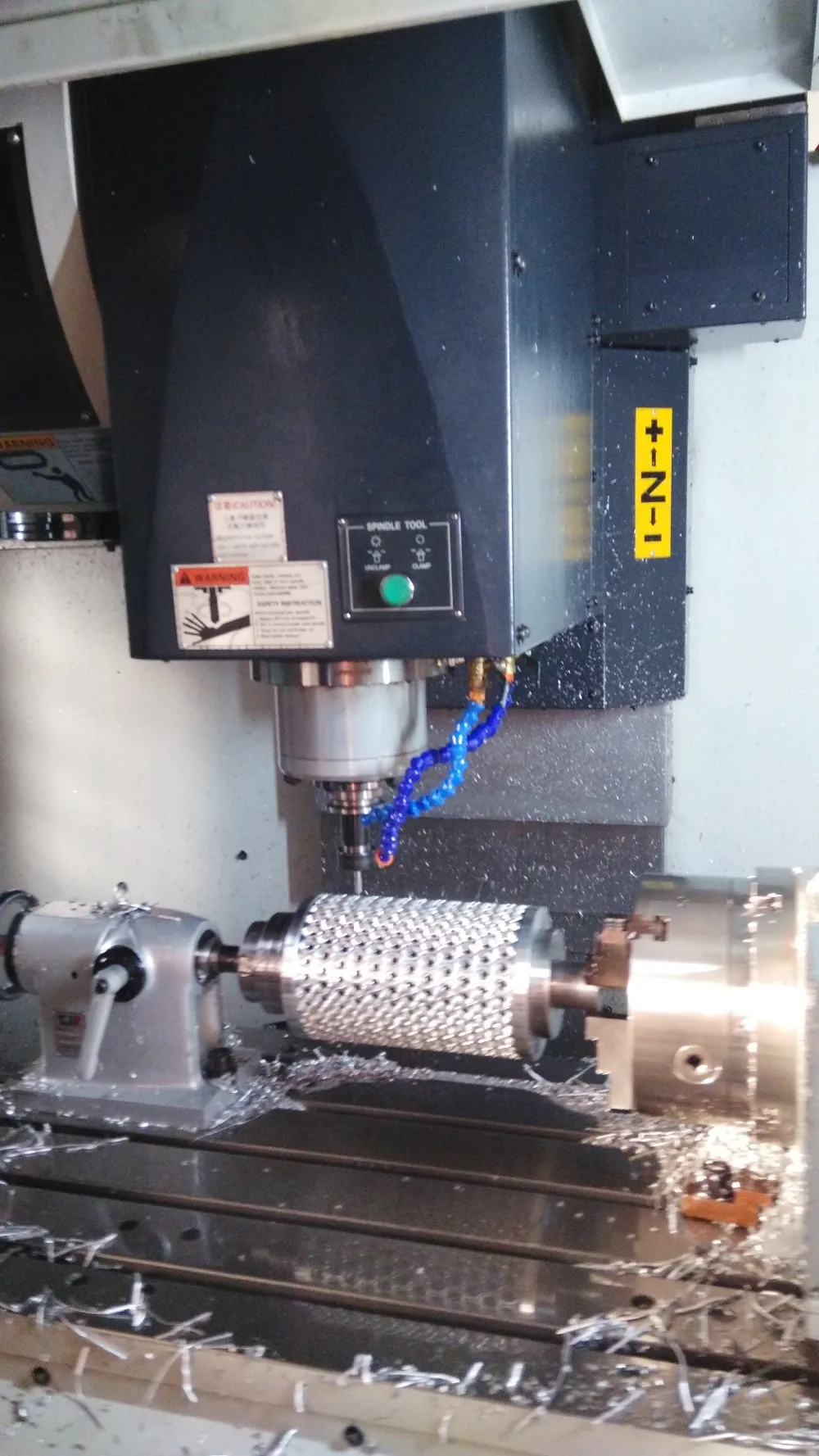

Our high precision CNC center, manufacturing many sets of alumimium alloy or copper die roll for softgel encapsulation machine or for painball machine use. Suitable for fishi oil softgel, Vitamin softgel, propolis softgel, other softgel and paintball production, etc.

Model	Dimension	Production Rate	Raw Material
S403 Softgel Roller	Φ80×100	20000 PCS / H	High Quality Alloy
S403 Paintball Roller	Φ80×100	8000 PCS / H	High Quality Alloy
S406 Softgel Roller	Φ103×152	40000 PCS / H	High Quality Alloy
S406 Paintball Roller	Φ103×152	18000 PCS / H	High Quality Alloy
S610 Softgel Roller	Φ150×250	120000 PCS / H	High Quality Alloy
S610 Paintball Roller	Φ150×250	32000 PCS / H	High Quality Alloy

Packaging & Shipping

Soft Capsule Die roll

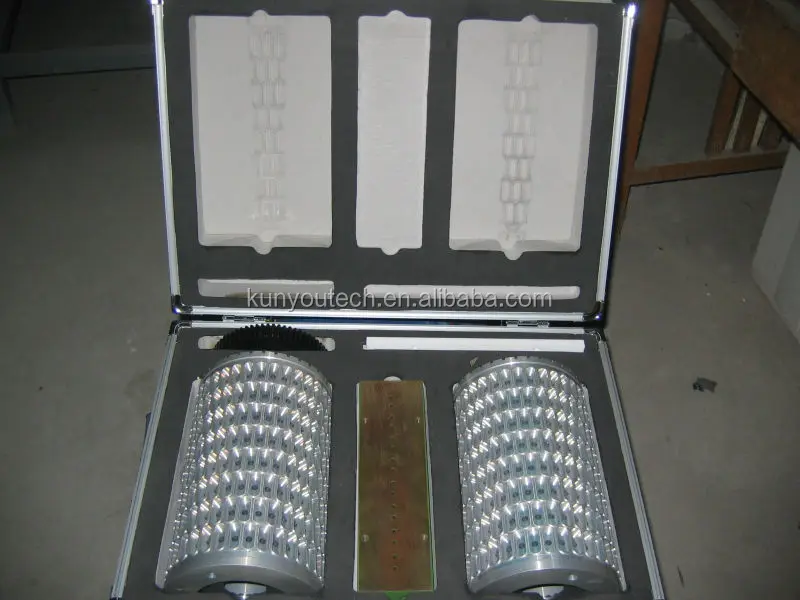

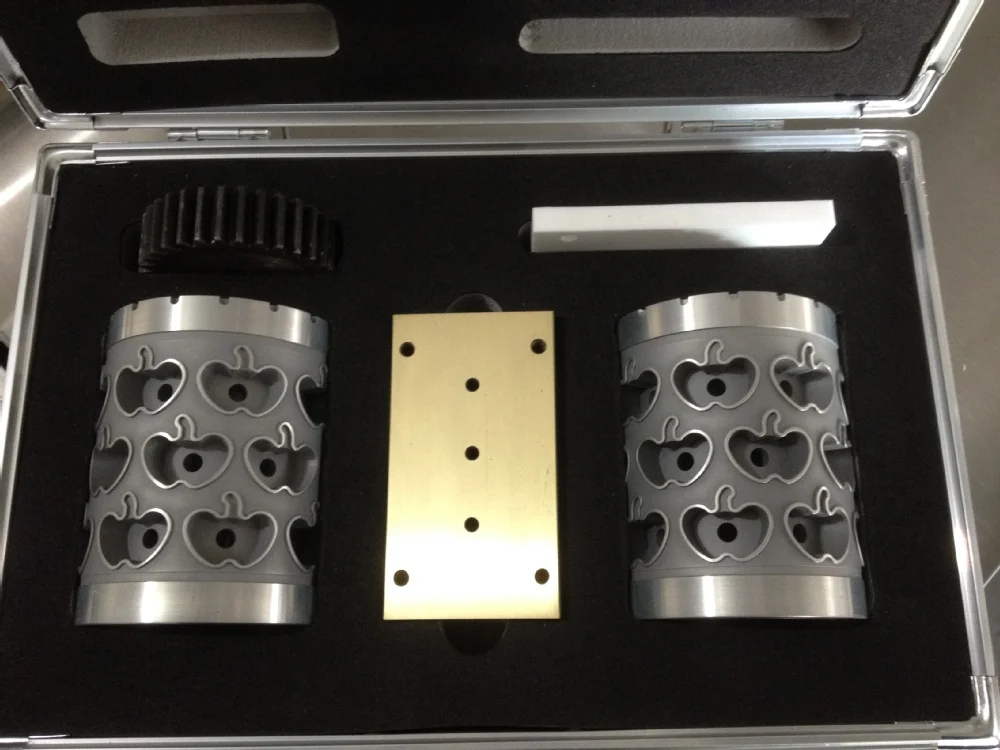

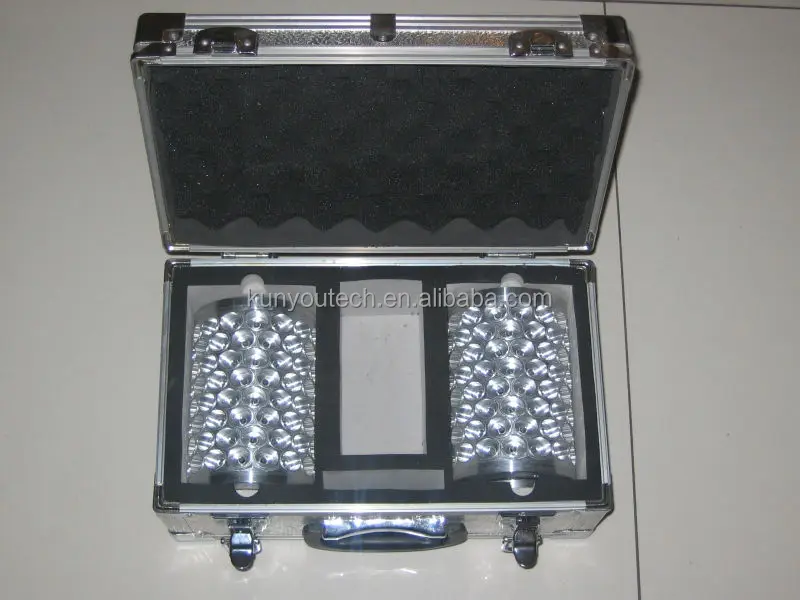

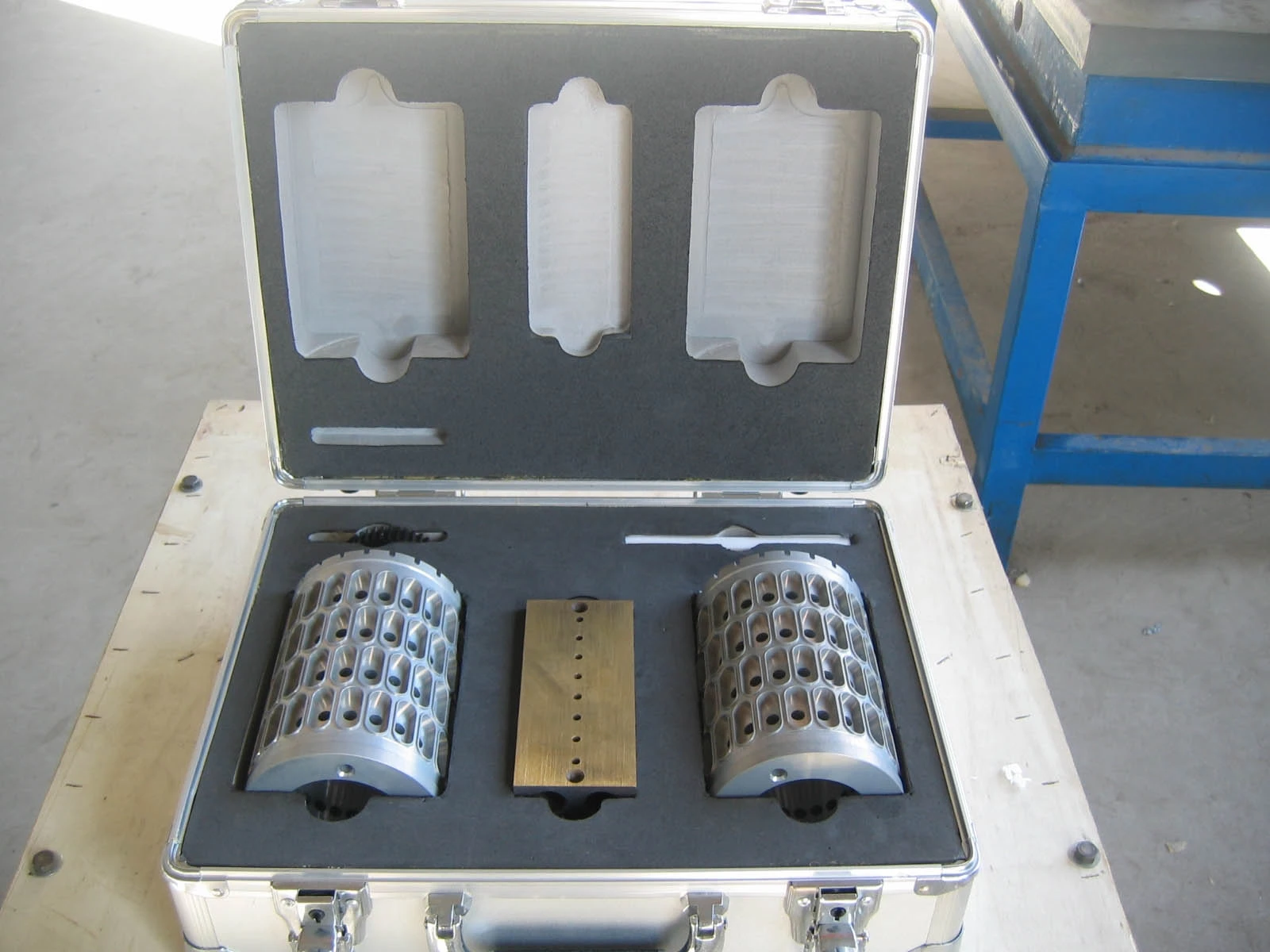

one die roll box: two die rolls, one injection wedge, one distributor, one alterable gear, one seal mat.

The shape and loading number are ordered by customer.

The main machine is the center of the production line, which function is to simultaneously finish the preparation of the gelatin of ribbon, quantitative feeding of the content (liquid or stickly materials), and packing to form the capsules.

Mould Size (mm)	Dia. 80 X W: 100
Mould Revolution: (RPM)	0-5 Rpm (adjusted variable speed)
Volume of Plunger Pump	0-1.5 ml (adjustable continuously)
Pump Accuracy:	+/-0.5% (filling volume not less than 500 mg)
Pump Type	8 plunger pump
Production Capacity : (4# OV capsule)	30,000 pills/hrs (4.0 RPM)
Power Supply:	1.8 Kw, 360V 3 phases (can be modified as user’s requirement.)
Weight:	400 Kg
Machine Dimension:	14406601350mm (LWH)

The Rotating tumbling dryer is special R &D for S403 fully automatic Soft gel encapsulation machine. Include 2 pcs of tumbler and control by PLC. Easy to operate, reliable, and small space occupation.
