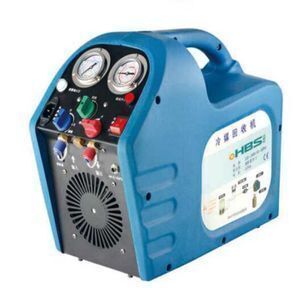

HBS refrigerant recovery unit HBS-2A, twins piston style refrigerant recovery system freon recovery tank

Supplier: Wenling Hongbaoshi Vacuum Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Mr Vacuum Pump
Price: $100.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Core Components:	Motor;	Compressor:	oil-less,Air-cooled,2 piston style;
Net weight:	14.5kg;	Marketing Type:	New Product 2020;
Maximum current:	6A;	After-sales Service Provided:	Engineers available to service machinery overseas,Online support;
Supply Ability:	8000 Piece/Pieces per Month;	Machinery Test Report:	Not Available;
Application:	Recovery All common refrigerants;	High pressure switch:	38bar/550psi;
Place of Origin:	Zhejiang China;	Demension:	460mm226mm345mm;
Warranty:	1 Year;	Type:	other;
Voltage:	220 ~ 240V/AC/ 50 ~ 60Hz;	Showroom Location:	none;
Video outgoing-inspection:	Not Available;	Motor Speed:	1450rpm/1750rpm;
Brand Name:	HBS;	Local Service Location:	none;
Port:	Ningbo;	After Warranty Service:	Online support;
Applicable Industries:	refrigerant;	Payment Terms:	L/C,T/T,Western Union,Paypal;
Warranty of core components:	1 Year;	Packaging Detail:	one pcs packed in carton;
Certification:	ce,ISET;	POWER:	1HP AC;

Product Description

220 ~ 240V/AC /50 ~ 60Hz 1 HP AC,2 piston style HBS Freon recovery tank,best refrigerant recovery machine/ r134a recovery machine/r22 recovery tank/r410a reclaiming machine

The HBS refrigerant recovery cylinder /hvac recovery machine are widely used for recoverying the refrigerant and freon of air conditioner , household air conditioner or automotive air conditioner and industrial refrigeration system.

Quick Detail:
Best refrigerant recovery machine - Power: 110v 60Hz；220v/50hz; Compressor: 1hp, direct drive,Horizontal bar oil-free, air-cooled; Capabilities: Push-Pull, Liquid, Vapor; Motor speed: 1750rpm@60Hz; High pressure shut-off: 38bar/558psi; Operating temperature: 32-104 ℉; Overall dimensions: 19.1"x8.7"x14.4"; N.W.: 33lbs
Used as R134 A recovery machine, ac refrigerant recovery tank and refrigerant recovery tool, R22 recovery device etc.

Main Feature:

(1) Can recover R22, R134A,R407CR404A,R410A, etc. All kind of general Refrigerants;
(2) The design of a oil less lubricated high efficiency compressor can directly recover the refrigerant of gaseous, liquid or gas-liquid mixture;
(3) Large fan and high efficiency condenser design, recovery and injection speed;
(4) It can be recycled to negative pressure and recycled more thoroughly;
(5) Multi-function valve design can automatically remove the residual refrigerant in the machine.
(6) The external design of large filter can effectively remove moisture and impurities after the refrigerant is recycled;
(7) Complete high voltage protection, current protection, providing security for the operation of the system;
(8) Humanized portable design, it is very convenient to carry out;
(9) The shell USES rotary disposable molding technology, with high strength, impact resistance and strong practicability;
(10) High power motor design can work 24 hours a day;
(11) The refrigerant recycling is complete, and the suction pressure reaches -0.04mpa and the recovery is completed automatically;
(12) High efficiency compressor design, faster speed.

Specification:

Refrigerant Recovery Machine Project		HBS-2A
Refrigerant gas	Cat III:	R12 R134A R401C R406A R500
	Cat VI:	R22 R401A R401B R402B R407C R407D R408A R409A R411A R411B R412A R502 R509
	Cat V.	R402A R404A R407A R407B R410A R507
Voltage		220 ~ 240V/AC /50 ~ 60Hz
Motor		1 HP AC
Motor Speed		1450rpm/1750rpm
Maximum current		6A
Compressor		oil-less,Air-cooled,2 piston style
Recovery rate (kg/min)		category III	category VI	category V
	Vapor	0.46kg/min	0.50kg/min	0.52kg/min
	Liquid	3.14kg/min	3.62kg/min	3.7kg/min
	Push/Pull	9.28kg/min	11.04kg/min	12.44kg/min
High pressure switch		38bar/550psi
Low pressure switch		Optional
Oil separator		Optional
80% Liquid overcharge protector optional		80% Liquid overcharge protector optional
Operation temperature		0 °C- 40 °C
Size		460mm226mm345mm
Net weight		15kg

Details

Certification

Our Team

Packing & Delivery

Packaging
Size
Weight
Packaging Details	one pcs packed in a carton box. if ucstomer has special require, we can do as customers' requirement. We can print customer's logo on the box.
