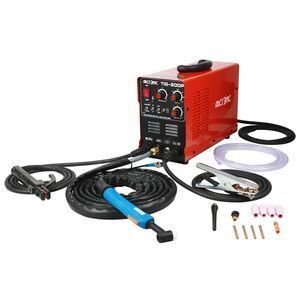

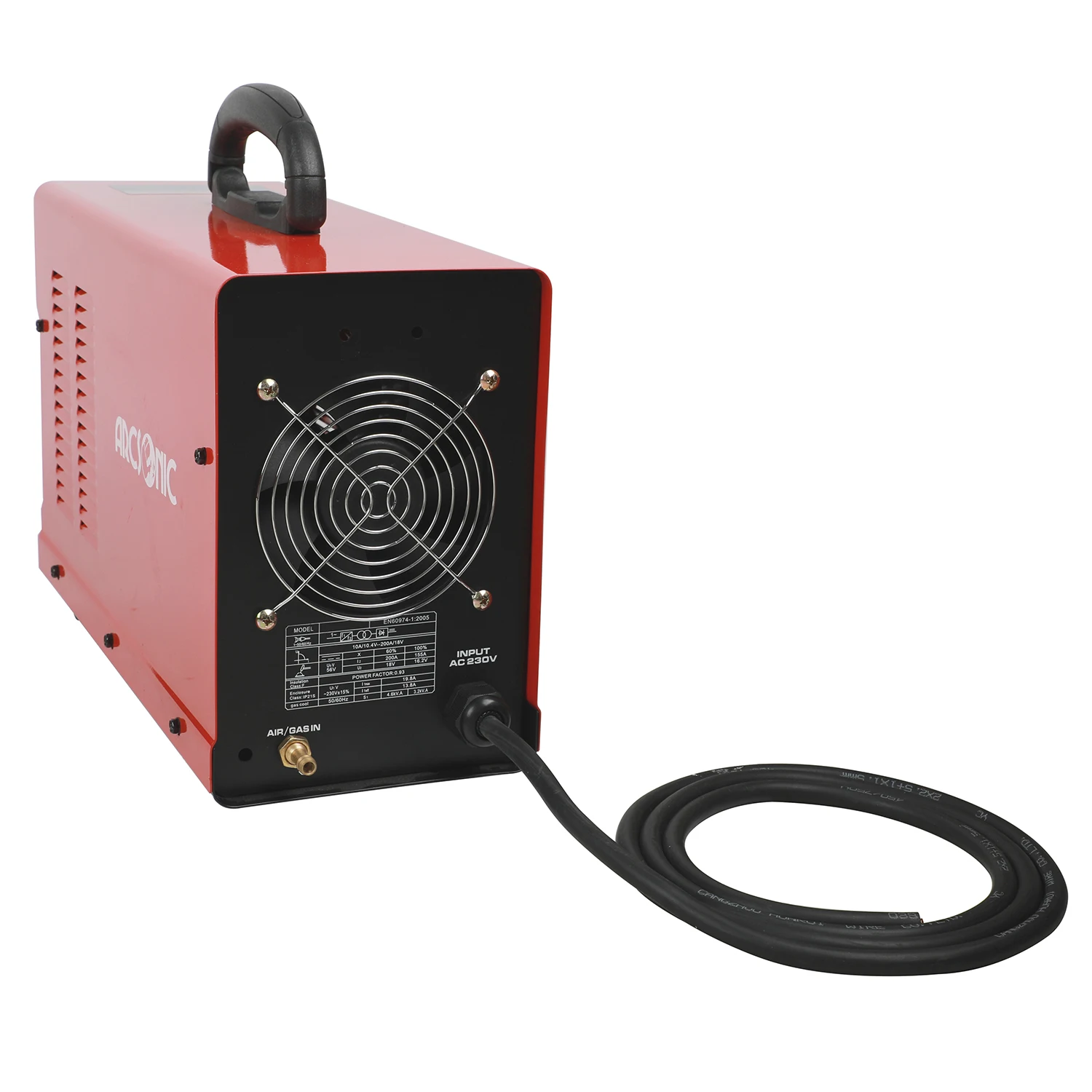

Arcsonic Popular TIG200P 200 Amps ARC TIG Welding Machine Multi Function Portable Inverter TIG Welder Argon welding

Product details
Selling Units:Single item;Function:TIG/ARC;
Color:Red;Welding Process:TIG,Stick;
2T/4T:Yes;Brand:Herocut;
Max Material Thickness:10mm;Packaging Detail:Packed use Carton;
No-load loss:40W;Weight:8.5kg;
Welding Current:200 Amps;Voltage:AC220V±15%;
Single package size:44X26X34 cm;For Material Type:Stainless Steel;
Brand Name:Herocut;Place of Origin:Guangdong China;
Single gross weight:8.5 KG;Frequency:50 /60 Hz;
Model Number:Tig200P;After-sales Service Provided:Engineers;
Rated Output Current:200Amps;Dimension (L x W x H):450*270*350 mm;

Arcsonic Popular TIG200P 200 Amps ARC TIG Welding Machine Multi Function Portable Inverter TIG Welder Argon welding



Description

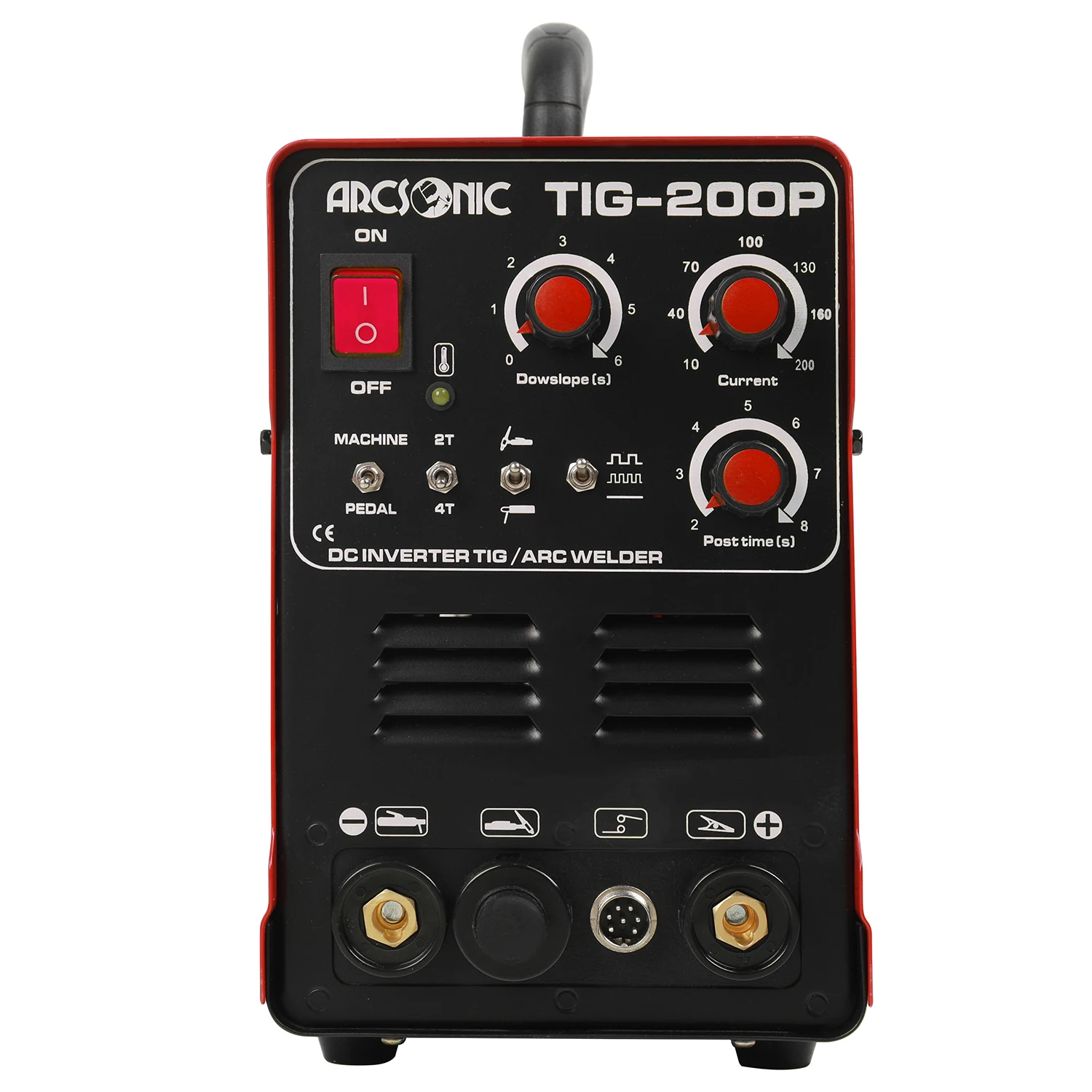

This machine is TIG200P with pulse, Can easy weld stainless steel, Function with 2T/4T, MMA/TIG, Pulse, Also can work with pedal, Current range from 10 to 200Amps can be adjust, Dlowslope from 0 to 6 second, Post time from 2 to 8 second, All of these function help user easy weld.



Specifications:



Model:

TIG200P

Input voltage

AC220V±15%

Frequency

50/60 Hz

Rated input current

43.6/28A

No-load voltage

56V

Ouput current range

10-200A

Rated output voltage

28/18V

Duty cycle

60%

No-load loss

40W

Arc starting

HF

Efficient

80%

Power factor

0.73

Insulation glass

F

Protection class

IP21

Net weight

8.5 kgs

Packing dimension

440X260X340mm

Welding material

carbon stainless, low-alloy steel

Plate thickness

0.3 – 1 mm

Welding process

DC TIG / ARC Pluse 3 in 1

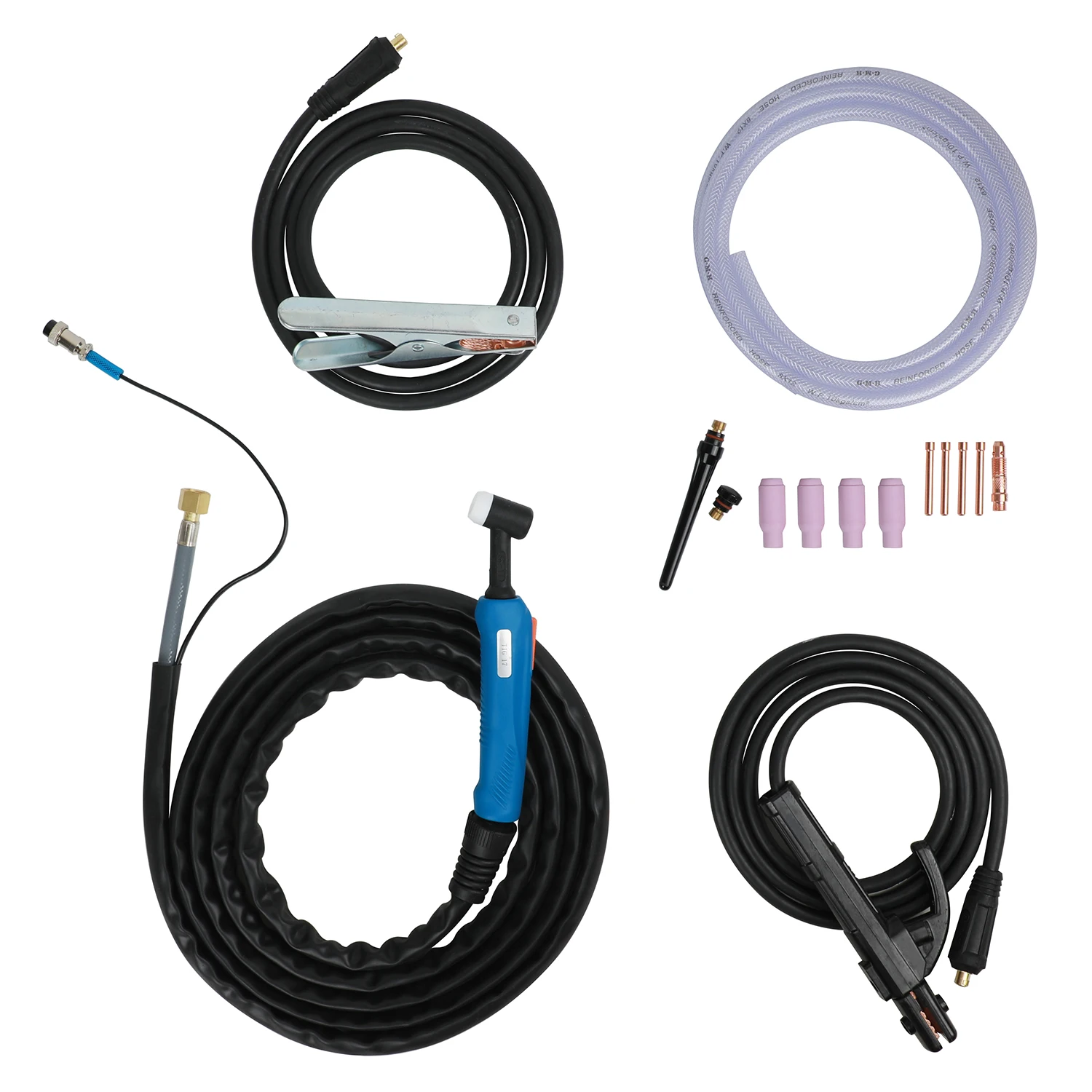

Package Content:

1 X Earth clamp

1 X Electrode holder

1 X Gas hose

1 X Tig torch 4 meters length

1 X Pack of tips and nozzles
