NDT_Image Quality Indicator_Penetrameter_IQI EN W10 FE 10

Supplier: Zhejiang Jinque Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms. Zhang Anna
Price: $1.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Port:	shanghai ningbo;	Model Number:	JQ-6ALEN;
Packaging Detail:	Carton;	Place of Origin:	Zhejiang China;
Brand Name:	jinque;	Supply Ability:	10000 Piece/Pieces per Month;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;

Welcome to Zhejiang Jinque
Walking by, Passing by, never missing Jinque

WHY CHOOSE US?
1). Price advantage
We have the professional workshops, we are radiography testing accessories specialist. we can supply your source
directly and save the agent fees and reduce your cost. We sure that our price is competitive.
2).Fast delivery time
Sample lead time is in 7 days.
Bulk productions lead time is 45 days after the final approval sample.
3).Quality Control

We have professional QC system, and professional workers ensure the products with high quality.

If you have any inquires ,please contact with us.
We are looking forward to make business with you!

4).Design Team

We have our own design team,so we can do both ODM/OEM

Wire Type Image Quality Indicators to EN462-1

The European Standard, which was introduced in 1994, replaces well-known national standards such as DIN54 109 and BS 3971. The wire diameters and system of numbering follow the previous DIN practice. JQ-NDT Ltd manufactures EN 462-1 IQIs in steel, aluminum, copper, titanium.

Description

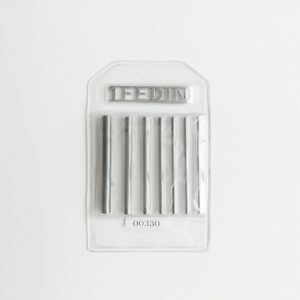

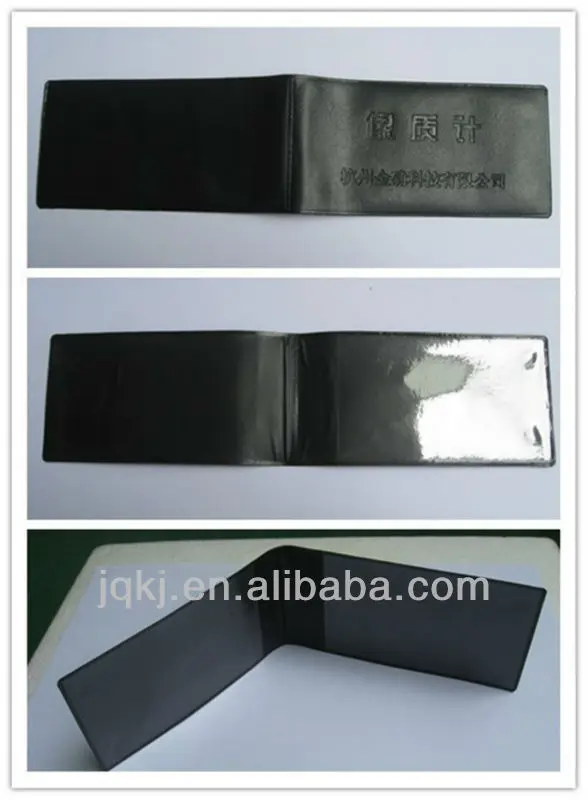

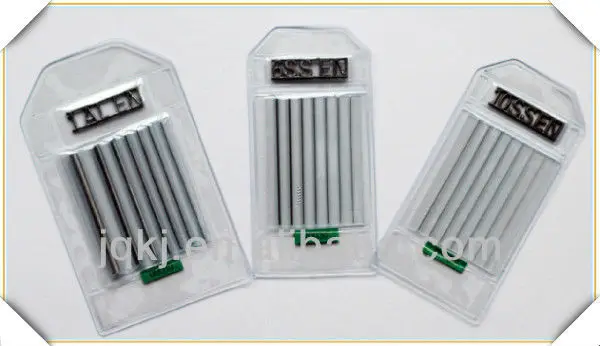

Wire type IQIs to EN462-1:1194 manufactured by EN462-1:1994 comprise seven parallel wires 10,25 or 50mm long, which are encapsulated in thin, transparent plastic. Each IQI is supplied in a wallet. For ease of recognition, the wallet carries stickers showing the IQI model and wire length it contains. These are color coded:

Green	Yellow	Red	White	Grey	Blue
Steel	Aluminum	Cupper	Titanium	Nickel	Stainless Steel

Encapsulation.

The wires in models W1, W6 and W10 as well as W13 in FE and CU are encapsulated in thin PVC. Because of the low radiation energy normally appropriate when models W13AL and W13TI are used, these wires are encapsulated in thin, less radiation absorbent polythene (complies with Standard requirement 4.2)

Quality Assurance.

Manufacturing, including inspection, follows a written procedure, which forms part of a Quality Management System registered according to ISO 9002. Each IQI carries a unique batch number. The Declaration of Conformity provides a complete manufacturing history as well as a printout showing the measured diameter of each wire.

The official description of an IQI reads, for example, IQI EN W10 FE 50. This means an IQI containing wire W10 to W16 in steel with a wire length of 50mm.

Wire 1-Wire7

Wire 6-Wire12

Wire 10-Wire16

Wire 13-Wire19

Ferrum

IQI EN W1 FE 50

IQI EN W1 FE 25

IQI EN W1 FE 10

IQI EN W6 FE 50

IQI EN W6 FE 25

IQI EN W6 FE 10

IQI EN W10 FE 50

IQI EN W10 FE 25

IQI EN W10 FE 10

IQI EN W13 FE 50

IQI EN W13 FE 25

IQI EN W13 FE 10

Alumium

IQI EN W1 AL 50

IQI EN W1 AL 25

IQI EN W1 AL 10

IQI EN W6 AL 50

IQI EN W6 AL 25

IQI EN W6 AL 10

IQI EN W10 AL 50

IQI EN W10 AL 25

IQI EN W10 AL 10

IQI EN W13 AL 50

IQI EN W13 AL 25

IQI EN W13 AL 10

Cupper

IQI EN W1 CU 50

IQI EN W1 CU 25

IQI EN W1 CU 10

IQI EN W6 CU 50

IQI EN W6 CU 25

IQI EN W6 CU 10

IQI EN W10 CU 50

IQI EN W10 CU 25

IQI EN W10 CU 10

IQI EN W13 CU 50

IQI EN W13 CU 25

IQI EN W13 CU 10

Titanium

IQI EN W1 TI 50

IQI EN W1 TI 25

IQI EN W1 TI 10

IQI EN W6 TI 50

IQI EN W6 TI 25

IQI EN W6 TI 10

IQI EN W10 TI 50

IQI EN W10 TI 25

IQI EN W10 TI 10

IQI EN W13 TI 50

IQI EN W13 TI 25

IQI EN W13 TI 10

Nickel

IQI EN W1 NI 50

IQI EN W1 NI 25

IQI EN W1 NI 10

IQI EN W6 NI 50

IQI EN W6 NI 25

IQI EN W6 NI 10

IQI EN W10 NI 50

IQI EN W10 NI 25

IQI EN W10 NI 10

IQI EN W13 NI 50

IQI EN W13 NI 25

IQI EN W13 NI 10

Stainless Steel

IQI EN W1 SS 50

IQI EN W1 SS 25

IQI EN W1 SS 10

IQI EN W6 SS 50

IQI EN W6 SS 25

IQI EN W6 SS 10

IQI EN W10 SS 50

IQI EN W10 SS 25

IQI EN W10 SS 10

IQI EN W13 SS 50

IQI EN W13 SS 25

IQI EN W13 SS 10

Wire :

IQI No.	w1	w2	w3	w4	w5	w6	w7
w1	3.20	2.50	2.00	1.60	1.25	1.00	0.80
w6	1.00	0.80	0.63	0.50	0.40	0.32	0.25
w10	0.40	0.32	0.25	0.20	0.16	0.125	0.100
w13	0.20	0.16	0.125	0.10	0.08	0.063	0.05

Limit deviation

Wire diameter(mm)	up to 0.125	0.125-0.50	0.50-1.60	More than 1.60
Limit deviation(mm)	± 0.005	±0.01	±0.02	±0.03

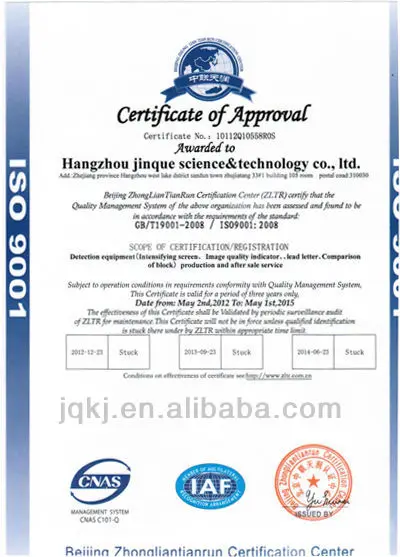

Certification

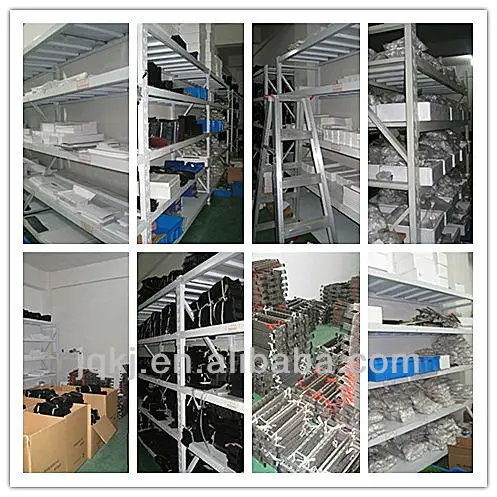

warehouse

Application

It can be widely used in chemical, shipbuilding, power generation, aviation, machinery, automobile, metallurgy, railway, pressure vessels and other departments emphasize the requirements of radiography testing.
