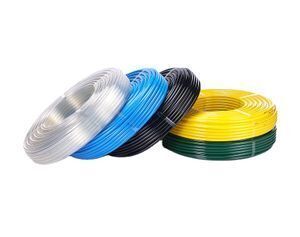

Blue White Black Red Orange Transparent Color 3 4 6 8 10 12 14 16 mm OD Polyurethane Air Pneumatic Hose For One Touch Fittings

Supplier: Ningbo Pneumatic Technical Expert Co., Ltd.
Region: Zhejiang, China
Contact: Ms Liling Zhou
Price: $11.00 /roll
Min. Order: 1 roll

Click here to contact

Product details

After Warranty Service:	Online support;	Environment and Fluid Temperature:	-20-80 degree;
Material:	Polyester Polyurethane;	Condition:	New;
Supply Ability:	5000 Roll/Rolls per Day;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Home Use,Retail,Printing Shops,Construction works ,Energy & Mining,Advertising Company;
material:	Polyester Polyurethane;	Port:	Ningbo;
Machinery Test Report:	Provided;	Video outgoing-inspection:	Provided;
Type:	PU series,PIPE;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Max Pressure:	1.5Mpa;	Brand Name:	NBPT or neutral;
Hardness:	95A-98A;	Fluid:	Air,Vacuum;
Local Service Location:	none;	Showroom Location:	none;
Packaging Detail:	Standard NBPT box;	Marketing Type:	Hot Product 2019;
Place of Origin:	Zhejiang China;	Warranty:	1 Year;

Product Details

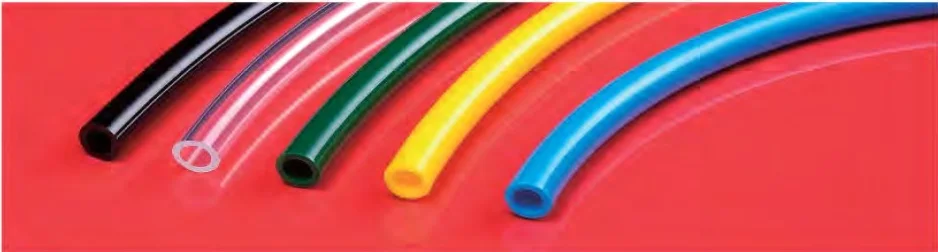

Polyester Polyurethane Pneumatic Hose

(1) Material: Polyester Polyurethane

(2) Hardness:95A-98A

(3) Fluid Admitted: Air

(4) Environment and fluid temperature: -20℃ - +80℃

(5) Features: The ester-based PU tube, featuring excellent pressure resistance, weather resistance, corrosion resistance and flexibility, used for the piping of air concerned system.

(6) Application: industrial automation, pneumatic tools, tube for water and fluids, vacuum tubes, protective sleeve for metal and electronic products.

Specification

Item No	D1	D2	L	Net Weight (Kg Roll)	MAX working pressure at 20℃(bar)	MAX burst pressure at 20℃(bar)	MAX bend radius pressure at 20℃(mm)
PU-0320	3mm	2mm	200m	1.4	10bar	30bar	10mm
PU-0425	4mm	2.5mm	200m	1.9	10bar	30bar	10mm
PU-0640	6mm	4mm	200m	3.9	10bar	30bar	15mm
PU-0855	8mm	5.5mm	100m	3.3	8bar	24bar	20mm
PU-0850	8mm	5mm	100m	3.8	10bar	30bar	20mm
PU-1065	10mm	6.5mm	100m	5.6	10bar	30bar	30mm
PU-1280	12mm	8mm	100m	7.8	10bar	30bar	35mm
PU1410	14mm	10mm	100m	9.4	8bar	24bar	55mm
PU-1612	16mm	12mm	100m	11	8bar	24bar	65mm
PU-5/32	3.94mm	2.5mm	200m	1.9	10bar	30bar	10mm
PU-1/4	6.35mm	4.23mm	200m	4.4	10bar	30bar	15mm
PU-5/16	7.94mm	5mm	100m	3.8	10bar	30bar	20mm
PU-3/8	9.52mm	6.35mm	100m	4.9	10bar	30bar	30mm
PU-1/2	12.7mm	8.46mm	100m	8.8	10bar	30bar	35mm
