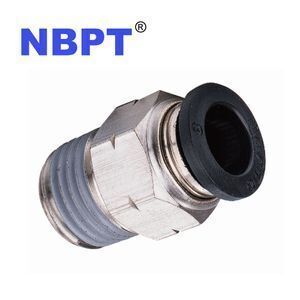

Straight male PC one touch push to connect fitting, tube to thread connector, Brass Fittings
-
Supplier: Ningbo Pneumatic Technical Expert Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Liling Zhou -
Price: $0.18 /piece -
Min. Order: 1 piece
Product details
| Collar Materials: | PBT; | No-Load Speed: | Variable; |
| Payment Terms: | L/C,T/T,Paypal; | Package: | 100pcs/box; |
| Packaging Detail: | Standard NBPT box; | Working Pressure: | 0~1.0 MPa, 0~140 Psi; |
| OEM, ODM: | Upon request; | Body color: | Siver; |
| Place of Origin: | Zhejiang China; | Certificate: | ISO 9001:2016; |
| Brand Name: | NBPT; | Type: | PC Straight brass gas fitting; |
| Port: | Ningbo; | Supply Ability: | 100000 Piece/Pieces per Week; |
| Shape: | Straight reducer; | Body material: | Brass; |
| Model Number: | PC; |
Product Description
| |||||||||||||||||||||||||||||||||||||||||||||
1) Brass with good nice nickel plated.
2) BSPT thread (British Standard Taper Pipe Thread).
3) The thread part of the fitting is longer and more thick than many other supplier of China.
4) Each and every pcs was tested at 10kgs/cm2.
5) Thread with teflon coating which can seal directly without any other seal material.
6) Bottom was hexagonal suitable for fitting by lkey.
7) Inner seal can bear 75 degree
8) The snap spring is stainless steel with heat treatment and the life time is more than 1000 times.
9) Body: Brass or PBT
10) Body Color: Nickel plated or natural brass; Black or Grey PBT
11) Release Ring Color: Black, Blue, Red, Grey, Orange, Green etc.
12) Certification: ISO9001,2000
