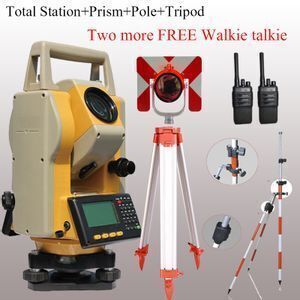

Hot Sale Total Station With Prism&Pole&Tripod&Free Walkie Talkie Total Station

Click here to contact

Product details

Weight:	5.8kg;	Product name:	total station;
Packaging Detail:	Less than Container Load ( LCL) Service to US ,Get shipping quote. Hot Sale Total Station With Prism&Pole&Tripod&Free Walkie Talkie Total Station packing in one carton box;	Working temperture:	-20℃~50℃;
Imaging:	Erect;	Place of Origin:	Jiangxi China;
Single package size:	55X45X35 cm;	Carton size:	0.530.330.41cm;
Single gross weight:	27.0 KG;	Interface:	USB,RS-232C;
Model Number:	TS1-1;	Model:	TS1-1;
Customized support:	OEM,ODM,OBM;	Storage:	40,000 POINTS;
Selling Units:	Single item;	Brand Name:	OEM;
Warranty:	1 years;	Angle accuracy:	2'';
Package Preview:	;	Size:	174X207X383mm;

Total Station Data

Models and technical parameters		TS1-1
Distance	without prism	300m/500m
	With prism	sigle prism 3000m,Triangular prism5000m
Accuracy	without prism	±(5mm+3ppm·D)
	with prism	±(2mm+2ppm·D), ± (3mm+2ppm·D)
unit		(m)/(ft)
Display	max	99999999.9999m
	min	0.1mm
Normal measurement		1'(normal)0.8'(quick)
Measurement time		1~99
Angel measurement
Angle measurement mode		absolute angle encoder system
Diameter		79mm
minimun reading		1''
TEST	Horizontal scale	pair-radius reading
	Vertical scale	pair-radius reading
Accuracy		2''
Telescope
Imgaing		Erect
Tube length		170mm
Objective aperture		48mm
Magnification		30X
Field of view		1.5°
Resolution		3.5''
Minimum of focusing distance		1.5m
Compensation
system		Single /dual spindle
Conpensation range		±3'
resolution		1''
Dispaly
type		Double LCD display
Date transmission
Interface		USB,RS-232C
Storage		40,000 POINTS
Other
Device		optical/laser
Power		Rechargeable lithium battery,DC7.4V,4000mAh
Continuous-time		8 hours
Size		174X207X383mm
Weight		6.8kg
Working temperture		-20℃~50℃
