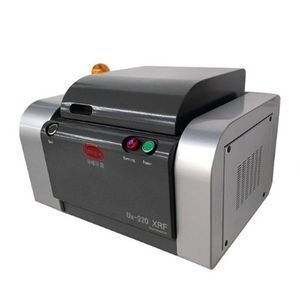

LIYI RoHS Testing X-Ray Fluorescence Spectrometer Energy Dispersive XRF Analyzer Price

Supplier: Dongguan Liyi Environmental Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Vickey Jin
Price: $14580.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Shenzhen, Guangzhou,Hongkong;	Supply Ability:	50 Unit/Units per Month;
Weight:	About 45Kg;	Sample Fretting Range:	XY8mm;
Test Sample Type:	solid, powder and liquid;	Packaging Detail:	Standard Wooden Case;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Package Preview:	;
Measurement Time:	120-400s (system automatically adjust);	Place of Origin:	Guangdong China;
Certification:	ISO,CE;	RoHS Detection Limit:	Pb≤5ppm, Cd/Cr/Hg/Br≤2ppm, Cl≤50ppm;
Collimator:	2mm, 5mm;	Warranty:	12 Months,12 months;
Test Element Range:	elements in S-U;	Customized support:	OEM,ODM;
Detection Range:	1ppm-99.99%;	Power Supply:	220V 50Hz / 380V 60hZ;
Brand Name:	LIYI;

LIYI RoHS Testing X-Ray Fluorescence Spectrometer Energy Dispersive XRF Analyzer Price

Product Description

It’s for RoHS Directive control: large household appliances, small household appliances, information technology and communication equipment, electric tools, toys and other equipment.

For halogen-free instruction control: products that use flame retardants containing elements such as Cl,Br as raw materials.

Analysis and content Test of elements in Copper Alloy, Ferroalloy, Aluminum Alloy, Titanium Alloy, Superalloy and all kinds of Hybrid Alloy

Introduction:

It specializes in RoHS instructions, halogen-free instructions, WEEE instructions, soil, ore composition analysis, copper alloy, stainless steel grade identification of high-end models. Keywords triple ray protection system; humanized operation interface; It can control the Cr of Br, hexvalent chromium in Pb,Cd,Hg,PBB and PBDE of RoHS instruction and the Cl and Br elements in halogen-free instruction, and can also identify soil, ore composition analysis, copper alloy and stainless steel grade. It can fully meet the requirements of customer environmental control and material identification. Carefully designed open working curve function, especially suitable for Multi-material plant process control.

Specification

Instrument Size(WDH)	680* 400* 390mm
Sample Cavity Size	300 * 360 * 100mm
Test Element Range	elements in S-U
Detection Range	1ppm-99.99%
RoHS Detection Limit	Pb≤5ppm, Cd/Cr/Hg/Br≤2ppm, Cl≤50ppm
Test Sample Type	solid, powder and liquid
Measurement Time	120-400s (system automatically adjust)
The Best Resolution	see the detailed description of the detection system below
Collimator	Φ2mm, Φ5mm
Filter	8 kinds of composite filters automatically switch
CCD Observation	1.3 million pixel HD CCD
Sample Fretting Range	XY8mm
Input Power	AC220V ~ 240V, 50 / 60Hz
Rated Power	350W
Weight	About 45Kg
Working Environment Temperature	temperature 15-30 ° C
Working Environment Relative Humidity	≤ 85% (no condensation)

Performance advantage:

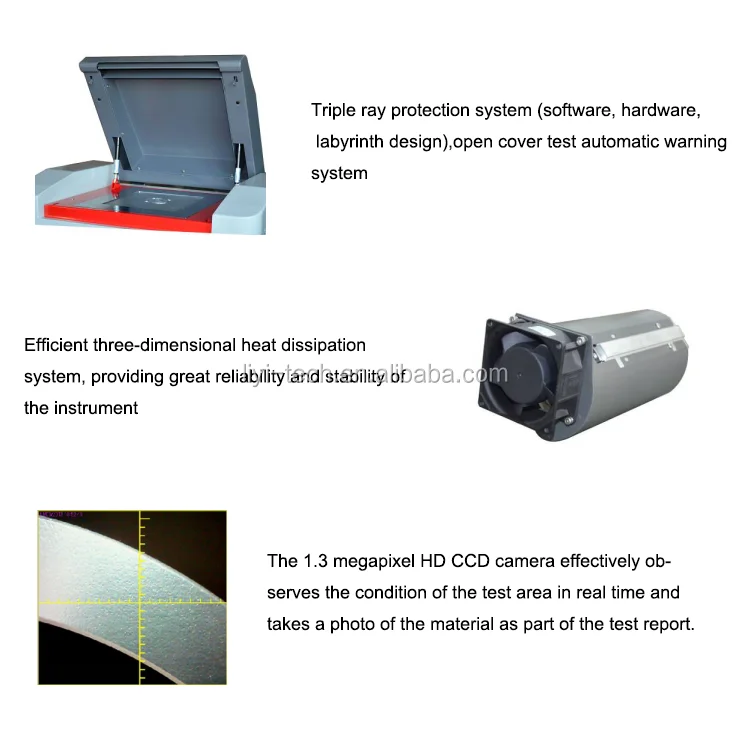

1. Triple ray protection (software, hardware, maze design) to ensure the personal safety of operators and radiation damage caused by accidental operations;

2.the large sample chamber is designed to be adapted to the detection of a large sample, and the hand-held XRF function is partially substituted;

3. It can realize the function of automatic one-click operation, automatic switching of collimator, automatic switching of filter, automatic stop of open cover, automatic photography of sample test photo, automatic saving and automatic pop-up of test report. Automatic screening and preservation of supplier information;

4. The new optical path design is adopted to solve the negative influence of air optical path on the measurement of Cl elements to the maximum extent, and the detection lower limit and stability of chlorine (Cl) elements are guaranteed.

Which product needs to use RoHS?

Large household appliances;

Small household appliances;

Information technology and telecommunications equipment;

Consumer equipment;

Lighting equipment;

Power tools;

Toys, entertainment and sports equipment;

Medical equipment; Monitoring equipment;

Vending machines;

Other electronic and electrical equipment not covered by the above 10 categories of products

Product Effects

Company Information

Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.

Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.

Our Services

During the whole business process, we offer Consultative Selling service.

1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms	FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency	USD, EUR, HKD, CNY
Accepted Payment Type	T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port	Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
