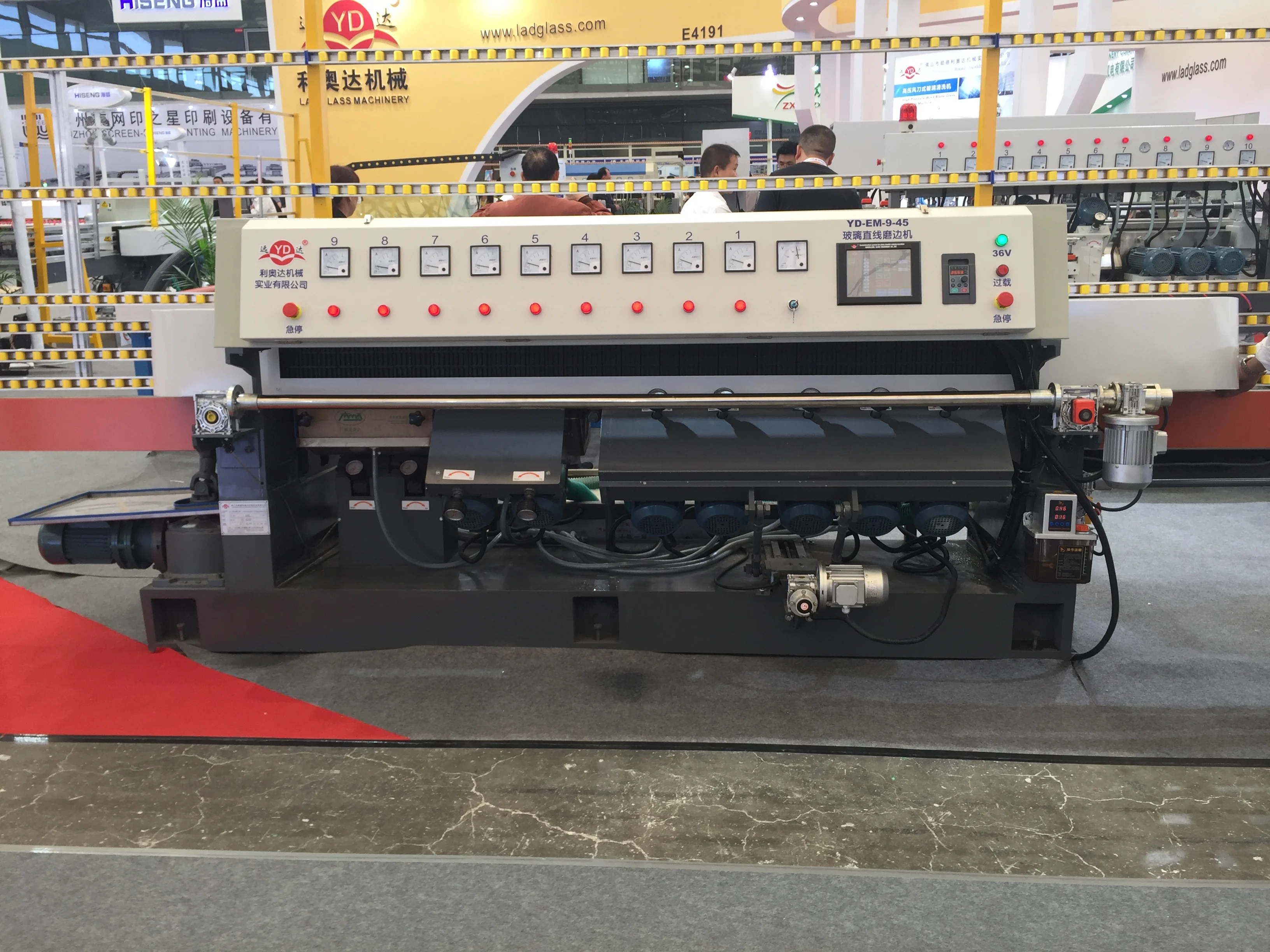

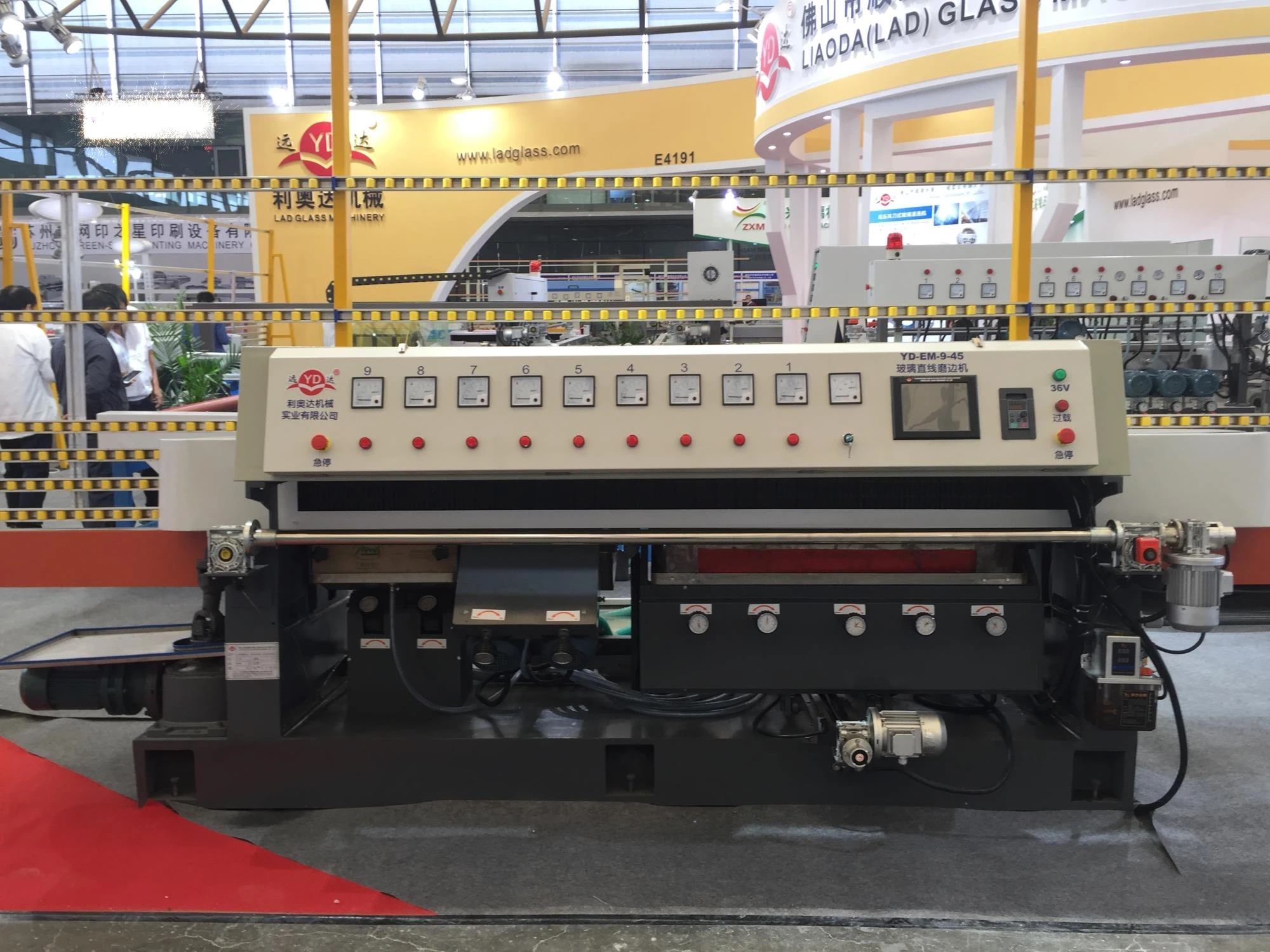

PLC control 9 engine automatic glass processing machine / glass edging machine / glass polisher

Supplier: Liaoda (LAD) Glass Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Dawn Ding
Price: $9400.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	6800x1000x2600mm;	Brand Name:	Yuanda;
Voltage:	220/380/415/480V,50/60HZ;	Certification:	ce;
Package Preview:	;	Place of Origin:	Guangdong China;
Vertical:	straight line edging;	Packaging Detail:	The main struture(processing part) and support part (water container, support flame) are seperated. Before wrap the machine with plastic bubble sheet, anti-rust oil will be spread easy to rust part. Then each parts will be fixed on pallet or wooden box are requirement.;
Warranty:	1 Year;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ,glass machines;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Payment Terms:	L/C,Western Union,MoneyGram;
Port:	Shunde, Guangdong;	Key Selling Points:	Easy to Operate;
Local Service Location:	Egypt,Turkey;	Production Capacity:	0.5-5m/min;
Showroom Location:	Egypt,Turkey,Saudi Arabia,India,Uzbekistan;	Supply Ability:	240 Set/Sets per Year;
Condition:	New;	Power:	18kw;
Machine Type:	Glass Edging Machine;	Straight:	line edging;
Weight:	3000kg;	After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Engineers available to service machinery overseas;

PLC control 9 engine automatic glass processing machine / glass edging machine / glass polisher

Machine application

This machine is used to process glass straight edge widely used for glass door, window, shower room, stairs etc. It is a basic machine for glass process factories and 9 wheels edging machine is the most popular size.

Macine function

1, To process flat edge with 45 degree arris when the first 5 spindles at 0 position

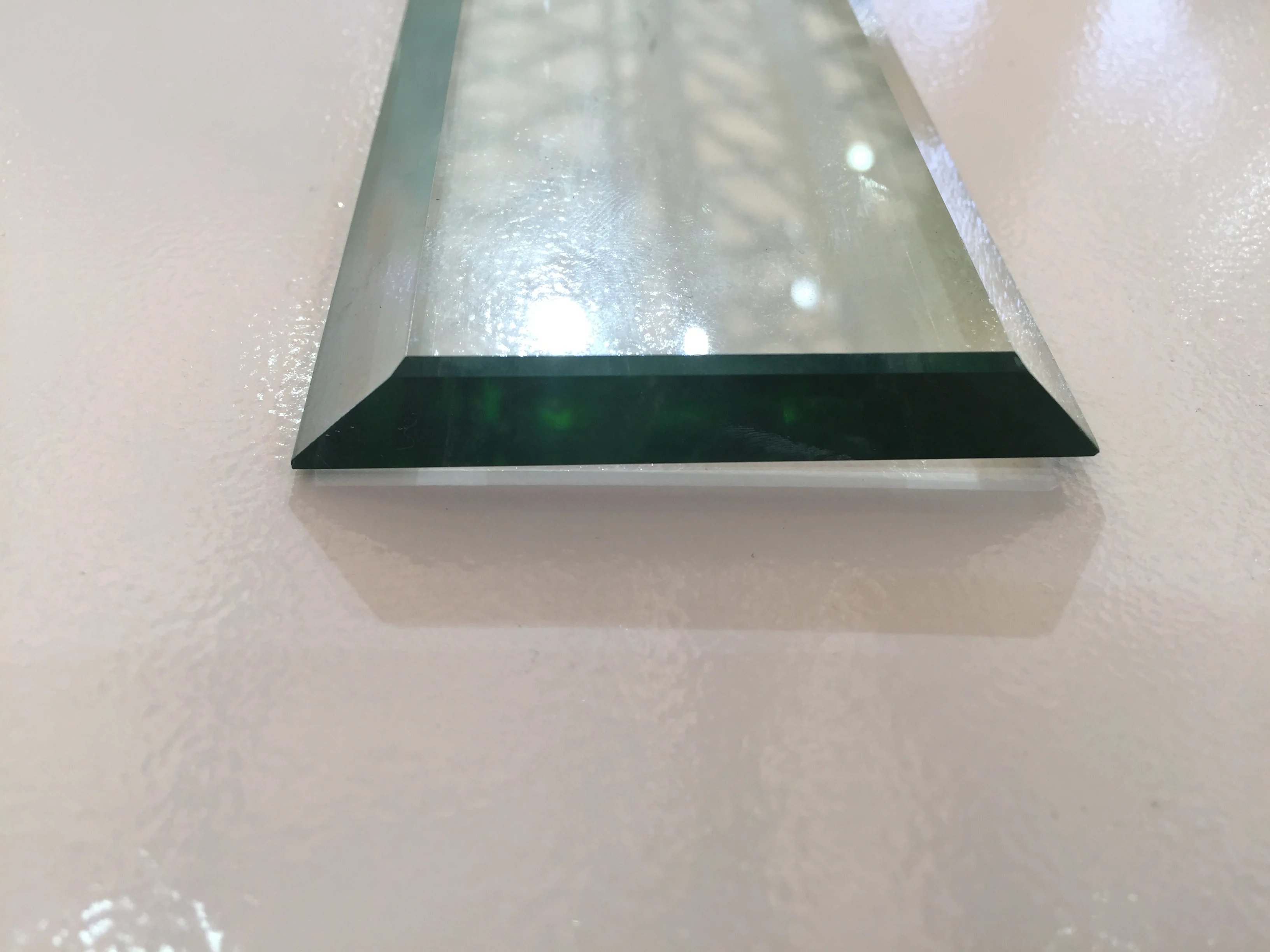

2, To process 45-90 degree chamfer edge when the first 5 wheels on 45-90 degree position

Machine specificatons

Item	Specification
Max. glass size:	2440x3660mm
Min. glass size:	80x80mm
Glass thickness:	3-26mm
Maximum flat edging level:	3mm
Maximum arrising width:	2.5mm
Chamfer angle:	45° -90 °
Working speed	0.8-6.0m/min
Installed power	18.5kw
Voltage	220/380/415/480V,50/60HZ
Worktable height	750mm
Overall dimension	6500x1000x2600mm
Weight	3000kg

Advantage of machines

1.With the use of cast steel machine basement

PLC control, manual, single chip control for option

2.Famous and durable Chinese motors

3.High quality conveyor belt

4.With feeding rail height adjustment, automatic lubrication pump and other function for option

5. Bearing structure edging machine for option.

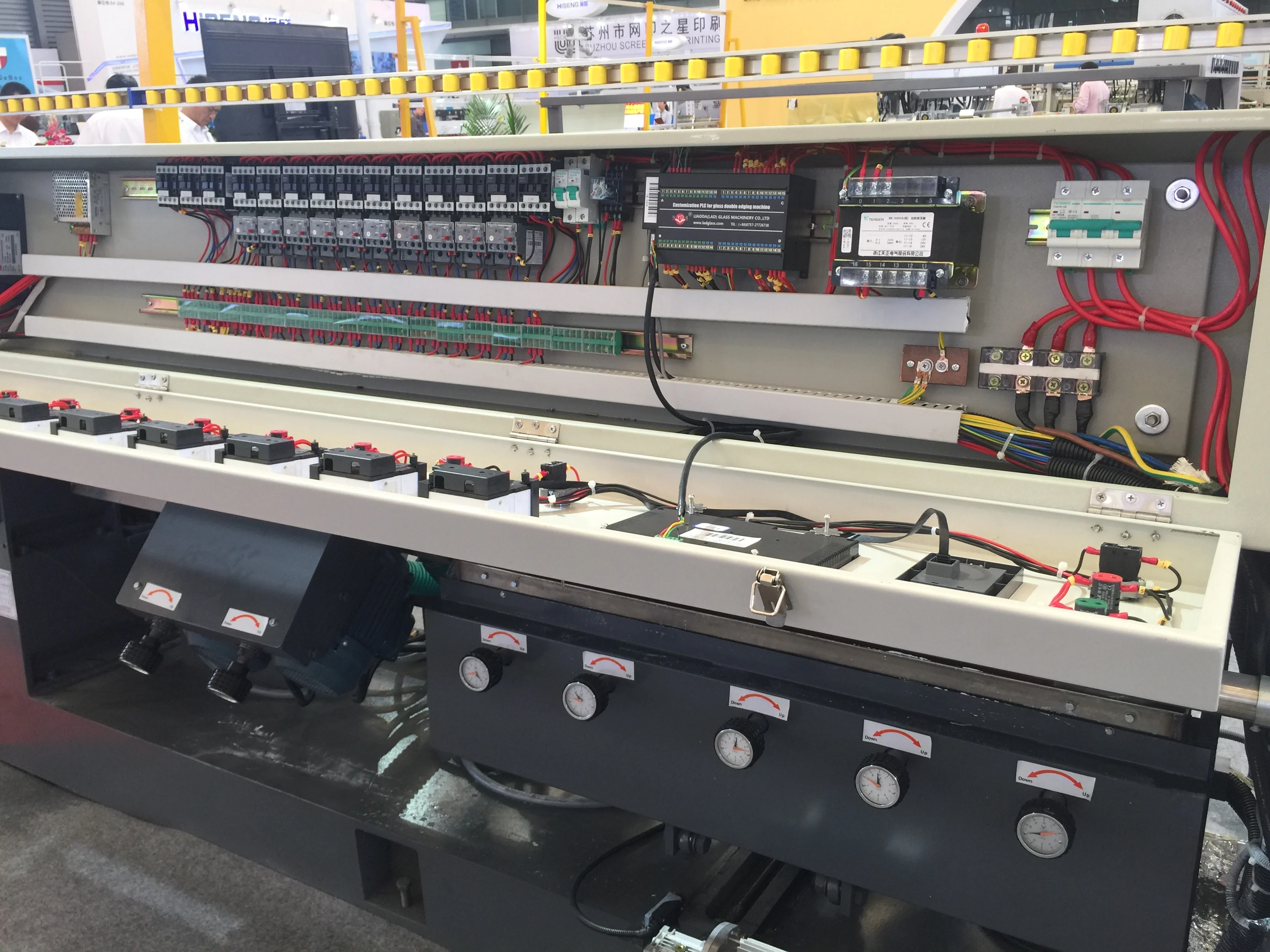

6.Schneider electric elements

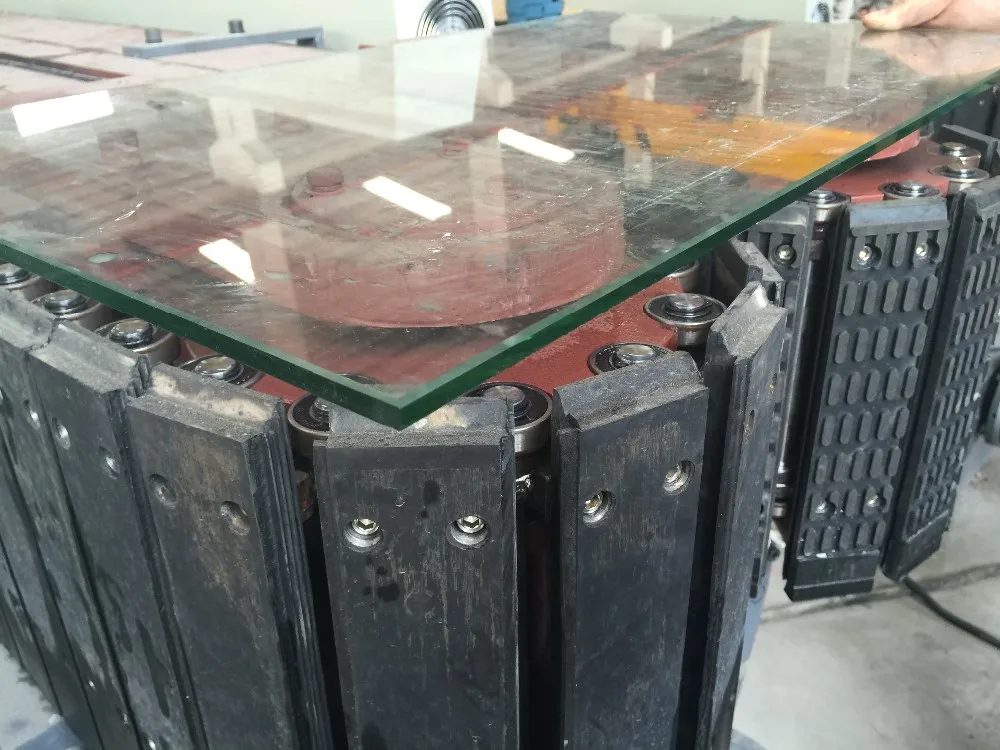

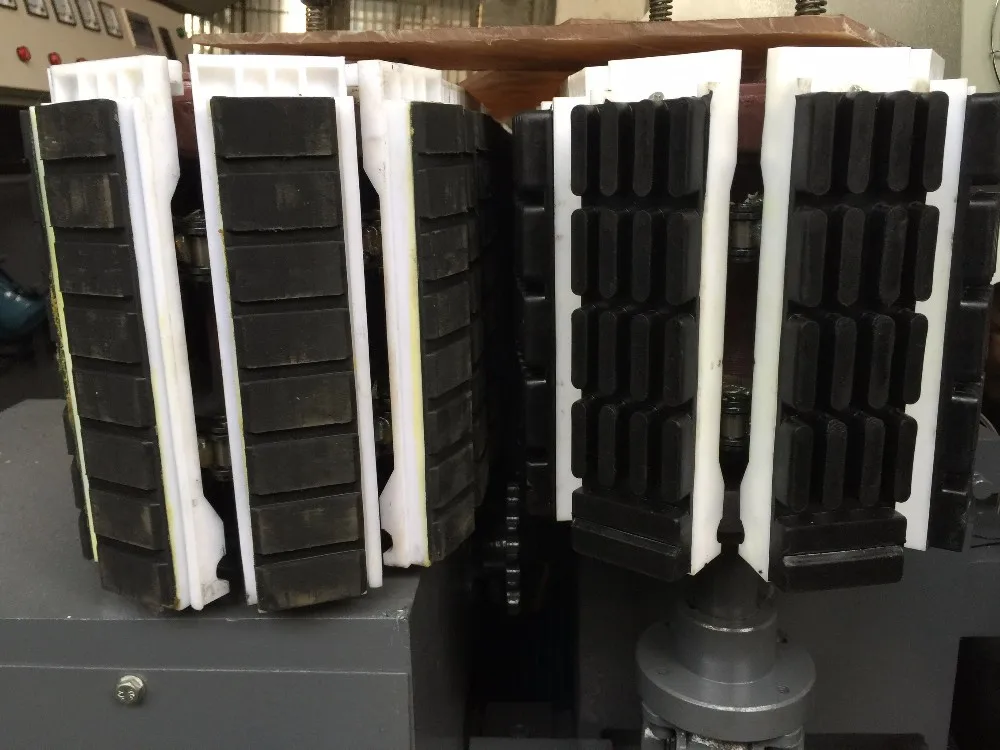

7.High quality and durable pads

Warranty and service:

1. 1 year warranty for the machine

2. Life time technical support and parts

3. English version machine operation manual, machine operation video and on site service if necessary

Machine package and loading

Introduction of the company

LIAODA(LAD) Glass Machinery Co.,Ltd, is a company integrating R & D, production and glass and stone processing machine. IThe company located in Lunjiao Town, Shunde Disctict, Foshan City, center of Pearl River Delta, with unique geographical location, easy to get technical support and human resources. The company was born in 90s of the last century, adsorbed huge amount of advanced technology and experience during production. In 2000, our former company, Yuanda glass machinery was established and in 2005, we changed our company name to "Liaoda (LAD) glass machinery" and use Yuanda as our brand name.

After years of research and development, "Yuanda" brand machines are widely used all over Chinaand over 40 countries and areas around the world. In the future, we will continuous supply high quality machines and service to meet the requirement of our clients in China and aboard. Welcome to visit our company, order our products and work together in the glass field!
