API 10D standard factory supply integral casing pipe centralizer, one-piece centralizer for oil drilling

Supplier: Shijiazhuang Dibo Petroleum Machinery Co., Ltd.
Region: Hebei, China
Price: $25.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Package Preview:	;	Applicable Industries:	Petroleum cementing tool;
Single gross weight:	1.42 KG;	Packaging Detail:	Wrap the product with foam and seal the box with a wooden carton.The machines could be well protected against dampness,moisture,rust and shock.;
Selling Units:	Single item;	Condition:	New;
Warranty:	Unavailable;	Single package size:	15X20X55 cm;
Certification:	API 10D;

Product Description

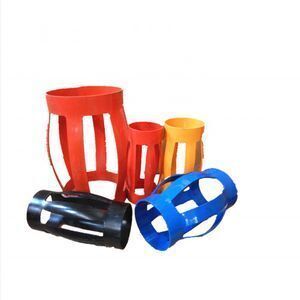

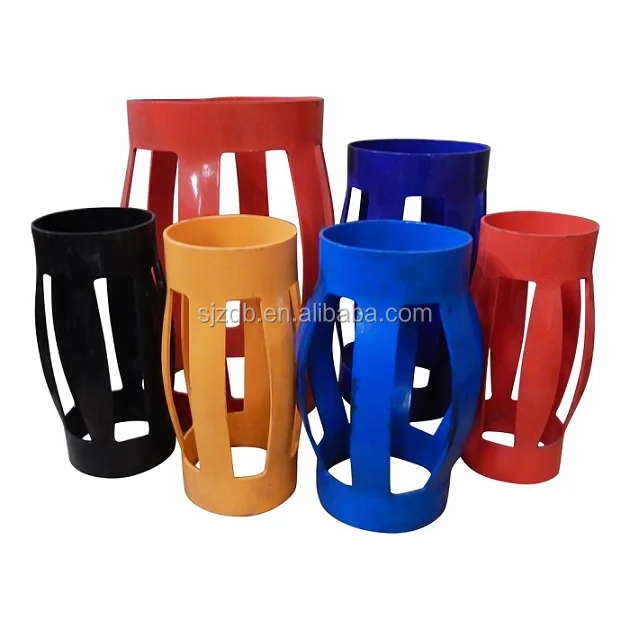

Integral Centralizer

The integral centralizer has ultra-high strength without any weak point. The centralizer provides High restoring forces while keeping starting and running forces at or near Zero lbf. This Minimizes drags during casing running and maximizes stand off during cementing operations.

Application:

Horizontal and deviated hoes,

the slim and irregular holes,

Oil reservoir

Advantage:

Available in 4 ½” to 20” sizes.Customized sizes are also available.

The one piece construction results in a robust centralizer that can withstand immense forces, remain intact, and never leave debris in the hole.

Optimum Standoff capability in even the most challenging well conditions.

At or near zero starting and running forces.

Minimal cross-sectional area minimizes flow restrictions and increase equivalent circulating densities.

All Size have been tested and validated to exceed API Spec 10D

Property Parameter

Specification	Casing size (mm)	Hole Size (mm)	Inner Diameter (mm)	Outer Diameter (mm)
4-1/2″×6″	114	152	118	152
5″×6-1/2″	127	165	132	165
5-1/2″×6-1/2″	140	165	142	165
5-1/2″×8-1/2″	140	216	142	218
6-5/8″×8-1/2″	168	216	172	218
7″×8-1/2″	178	216	182	218
7″×9-1/2″	178	241	182	243
7-5/8"×9-1/2"	194	241	198	243
7-5/8″x9-7/8″"	194	251	198	253
9-5/8″×12-1/4″	244	311	249	311
10-3/4"× 12-1/4"	273	311	278	311
12 3/4"×17-1/2"	324	445	328	445
13-3/8″×17-1/2″	340	445	344	445
14-3/8"×18-3/4"	365	476	369	476
16"×20"	406	508	410	508
18-5/8"×24"	473	610	474	610
20"×26"	508	660	512	660

Our Services

Packing & Delivery

Company Information

Shijiazhuang Dibo Petroleum Machinery Co.,Ltd was established in 2015 focusing in the oilfield cementing casing centralizers’ design and production in Shijiazhuang City. Hebei Province .China.

We have passed API 10D, ISO9001 International Quality System,GB/T24001 Environment Management System & GB/T28001 Occupational Healthy Safety Management

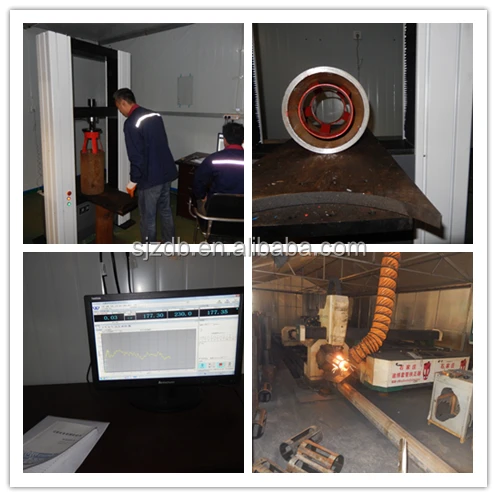

To guarantee new products R&D, we adopt CAD. UG design and modular design to shorten products developing circle. With electronic universal testing machine. hardmeter and automatic impact testing machine we could control quality of the raw material and finished products properly.

Our vision is to provide high quality and effective solutions for downhole operations in oilfields.
Our products have been sold to major domestic oil fields, as well as the United States, Canada, Russia, Mexico, Argentina and other overseas countries.

FAQ:

Q1: Are you manufacturer & exporter?

A1: Yes, we are manufacturer & exporter.

Q2: What is your Core Products?

A2: Our Main Product is casing centralizer

Q3: How long is your delivery time?

A3: 15 days to 20 days for normal order, Delivery time depends on order Qty.

Q4: free of cost sample?

A4: Samples are for free. Postage should be paid by customer.

Q5:Do you accept custom products?
A5:Yes, we can make it according to the size of the paper you provide
