dc small air compressor micro air solenoid valve with air compressor safety valve

Product details
Certificate:CE, RoHS, ISO9001;Type:Air & Vacuum Release Valves;
Structure:Diaphragm;Standard or Nonstandard:Standard;
Port Size:Standard;Brand Name:pincheng;
Low noise:Yes;Voltage:3V, 4V, 5V, 6V, 9V, 12V 24V etc;
Application:Beauty apparaturs, Medical care, air pump,General;Media:Other;
Power:Solenoid;Valve type:vacuum valve;
Food grade:Yes;Place of Origin:Guangdong China;
Material:PPS;Packaging Detail:plastic bag&Foam pallet inner, Export carton package Carton size: 60cm*40cm*30cm;
Adjustable flow:Yes;Single package size:3X2X3 cm;
Temperature of Media:Normal Temperature;Model Number:PYF3-6A;
Single gross weight:0.02 KG;Selling Units:Single item;
Product Description

dc small air compressor micro air solenoid valve with air compressor safety valve
Features:low pressure, low noise ; Longlife span; FDA standard, CE and RoH

1. Pump with self-priming function;
2. Food grade material; DC 3V/4V/6V/9V/12V are all availiable;
3. Short-term dry run (no more than 15 minutes);
4. Low noise, easy installation, stable performance;
5. Working medium: water, beer, other beverages; no oil, no strong corrosive, non-acid and alkali, without solid particles of liquid;
6. Installed in a dry, ventilated area; do not operate it with pump submersed in water;
7. Appropriated for liquid circulation, transfer etc.


Production Name
dc small air compressor micro air solenoid valve with air compressor safety valve
Rataed voltage
DC3.7V
DC5.0V
DC6.0V
Rataed current
<370mA
<400mA
<220mA
Impedance
10Ω±10%
12.5Ω±10%
25Ω±10%
Air flow
Max 3 seconds from 300mmHg reduce to 15 mmHg at 100CC tank
Leakage
Max 3 mmHg/min from 300mmHg at 100cc tank
Noise
<65dB
Life test
200,000 times
insulation class
A
Using environment
0-50℃,75RH

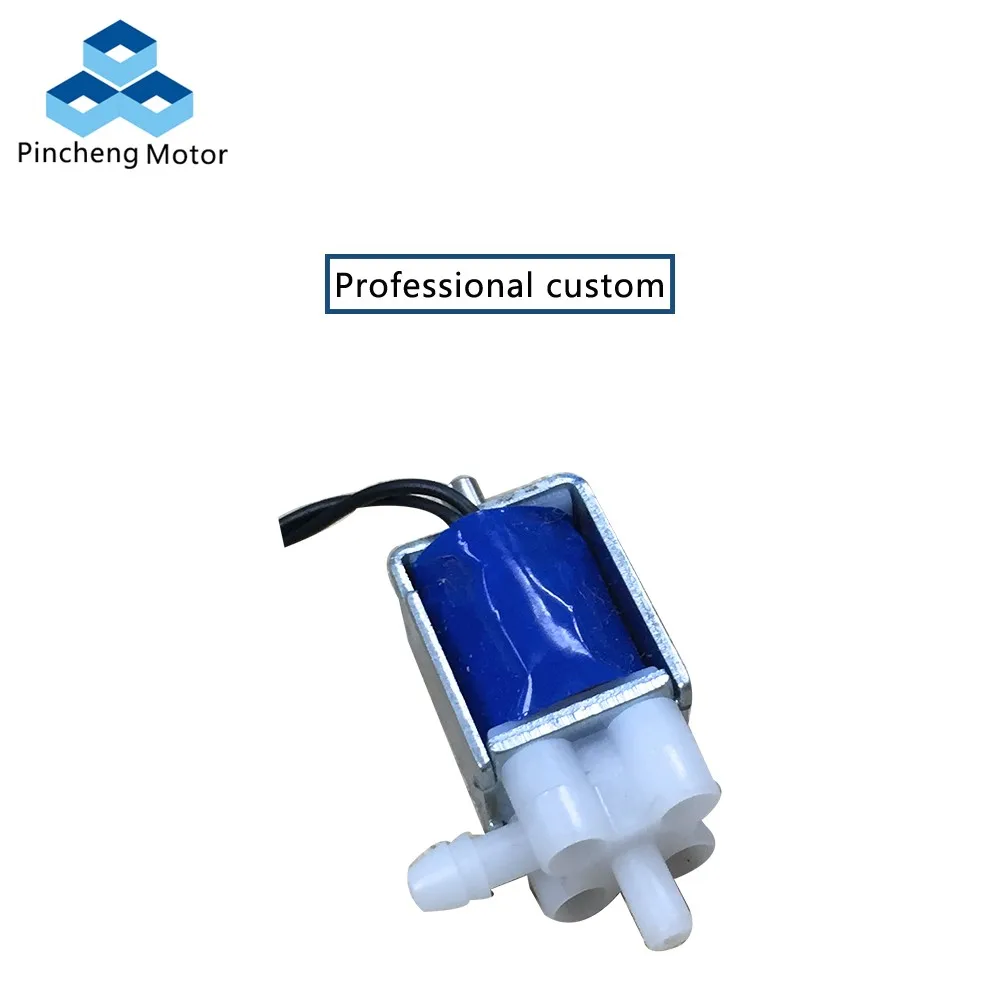

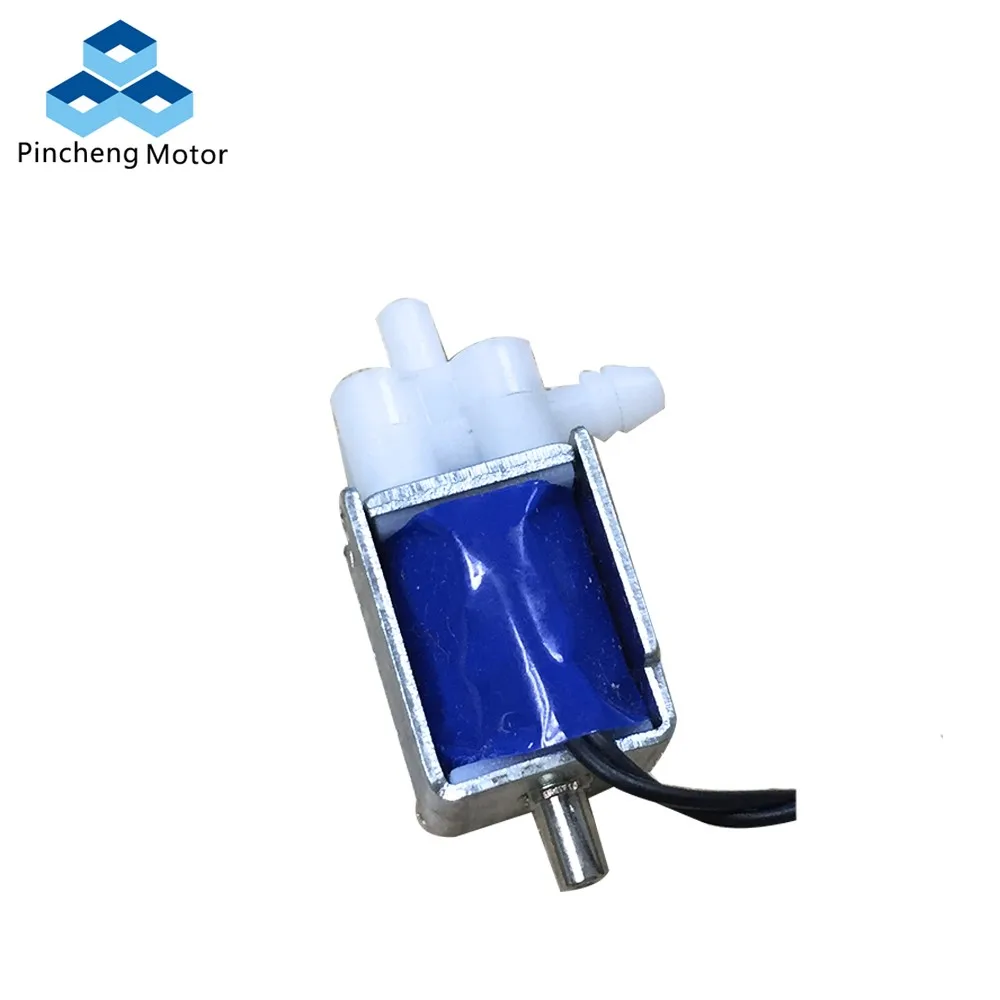

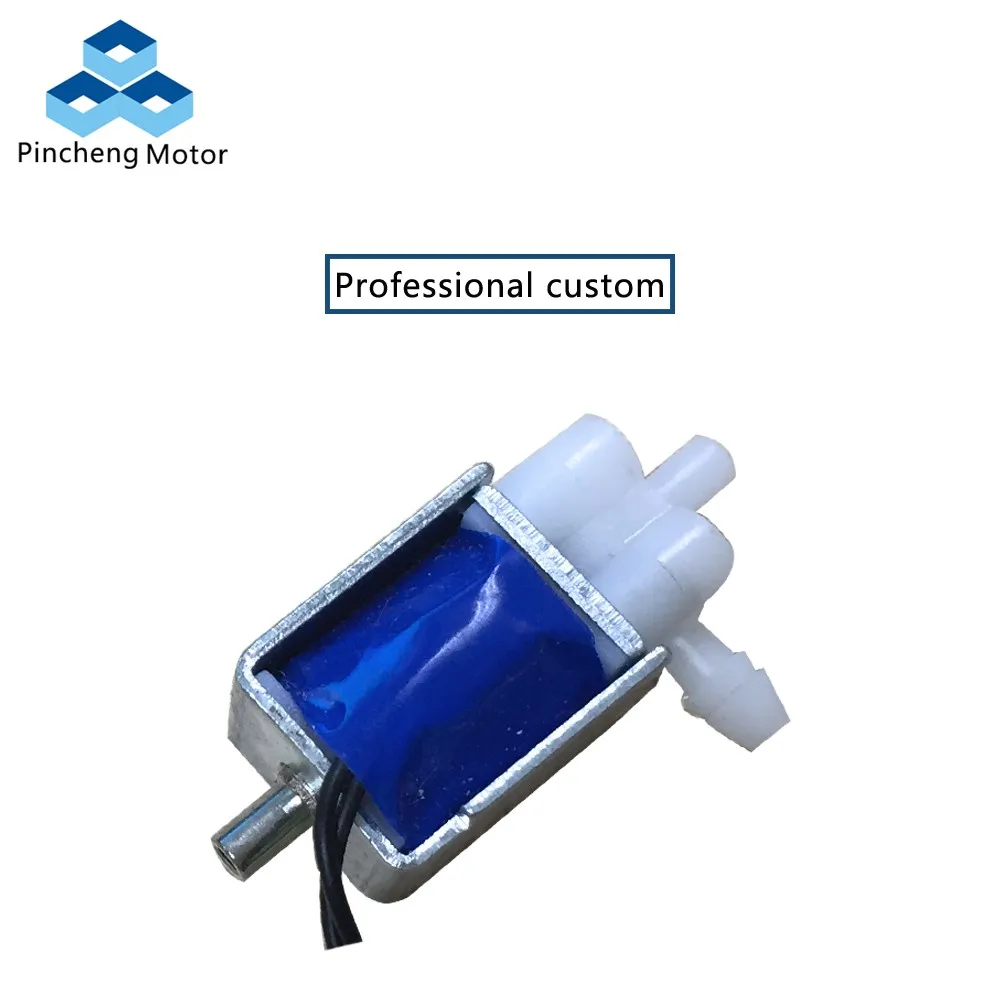

Products Show
Typical Application

Typical Application


Air pump and water pump are widely used in Medical instruments, massagers products.
 Typical application:blood pressure instrument, water purifier, massage glasses, massager waist, massager chair, Coffee machine, Ozone box, fish tank etc. They are main features: stable in performance, long life in using, good quality.
Our Company
Packing & Delivery

Every foam pallet inside to pack each item well

A safe foam packed again


Standard export outer cartons


Our Certifications

CE approved, all is RoHS compliant.


Our advantages

Profile


Pincheng motor is specialized in manufacturing micro motor and pumps. With over 300 employees, we had great capacity to produce more than 50000 unit of motor/pump daily.  Automatic testing equipments make sure our product are 100% tested and qualified.

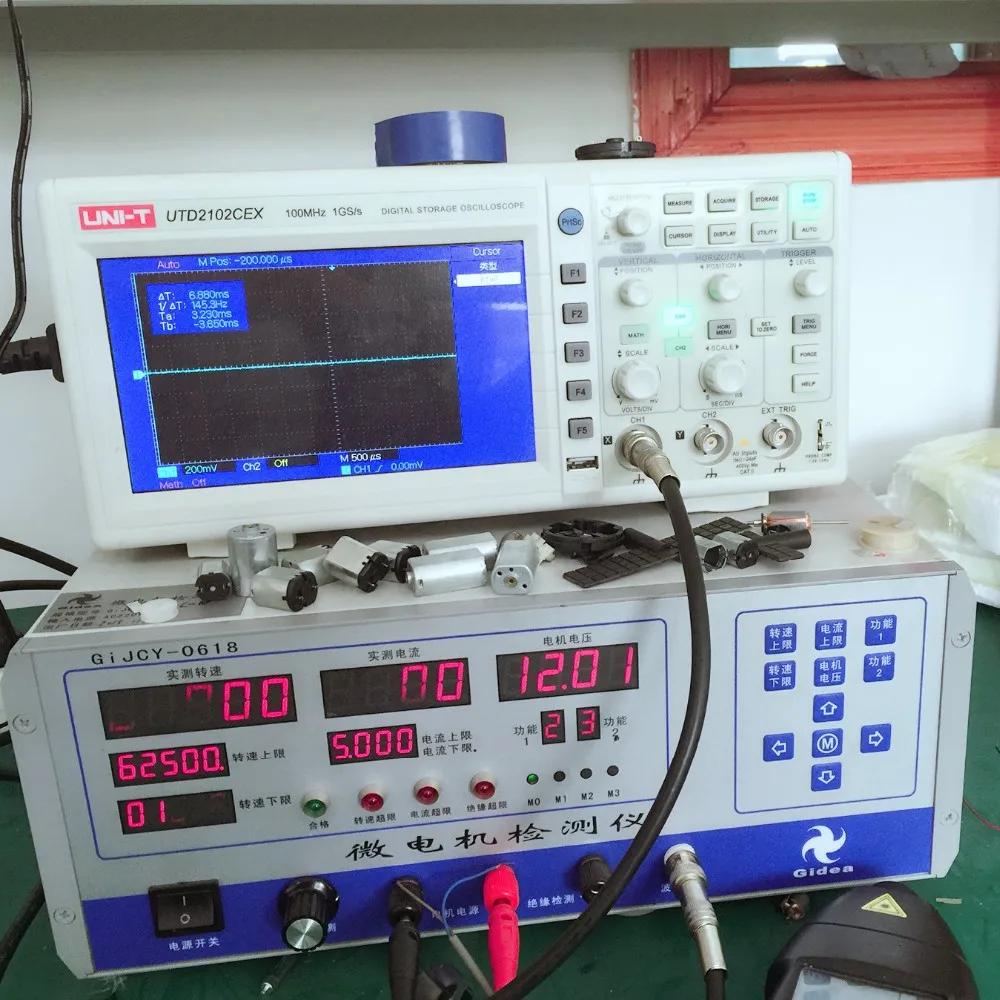

Quality Control

Pincheng motor offers miniature pump technologies to solve the motion needs of end markets, from medical devices to various industrial applications. Our items range includes micro air pump, micro vacuum pump, micro water pump, nebulizer air pump. 100% tested and inspection, satisfied our customer will consistence quality.


R&D Ability


We have the ability to help in every phase of our customers' product design - from selecting an optimal pumping solution to customizing products to meet their application needs. With proven quality product and professional service, we are surely can be your powerful partner.


Facilities


We had facilities to manufacture complete pump in house, starting from steel body, copper winding and plastic cover. Our products deliver pumping quality in a compact package with high efficiency and low power consumption.
