High temperature high pressure jigger dyeing machine

Supplier: Wuxi Hongda Dye-Finishing Equipment Producing Co., Ltd.
Region: Jiangsu, China
Contact: Ms Fan Yang
Price: $50000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Machinery Test Report:	Provided;	Power:	11/15/22KW;
Weight:	6~8.5T;	Warranty:	1 Year;
Packaging Detail:	Packed in nude;	After-sales Service Provided:	Engineers available to service machinery overseas,Video technical support,Online support,Field installation, commissioning and training;
Condition:	New;	Warranty of core components:	1 Year;
Video outgoing-inspection:	Provided;	Frenquency converter:	2 sets of Yaskawa frequency converter;
Dimension(LWH):	590027002850;	Local Service Location:	none;
Core Components:	PLC,Motor,Pump;	After Warranty Service:	Video technical support,Online support;
Port:	Shanghai;	Voltage:	380V 50Hz optional;
Payment Terms:	L/C,T/T;	Place of Origin:	Jiangsu China;
Supply Ability:	30 Set/Sets per Month;	Certification:	CE Marking;
Automatic Grade:	Automatic;	Controller:	Omron PLC;
Marketing Type:	Ordinary Product;	Operation interface:	10 inches Weinview Colorful touch screen(Taiwan);
Showroom Location:	none;	Brand Name:	HD;
Applicable Industries:	Manufacturing Plant;	Electric:	SS electrical control cabinet, Schneider electrical element(France);

Product Description

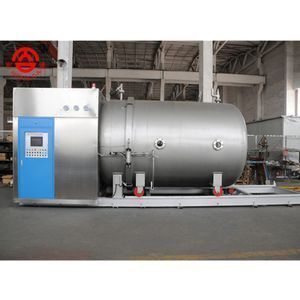

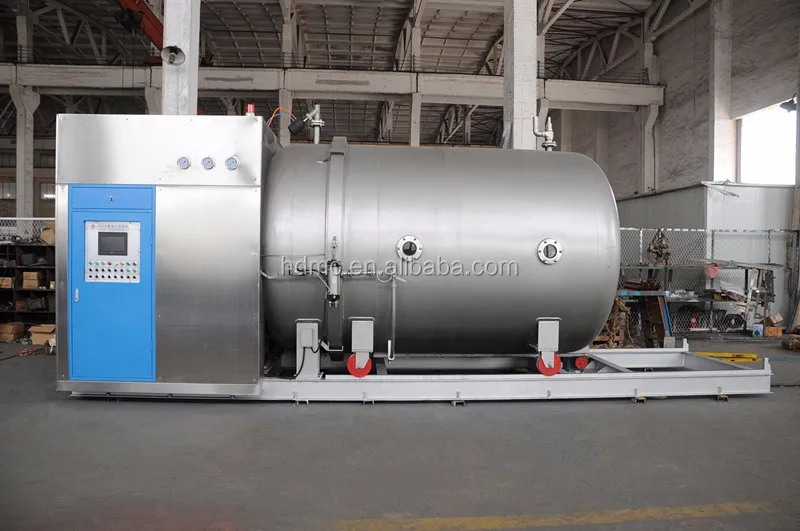

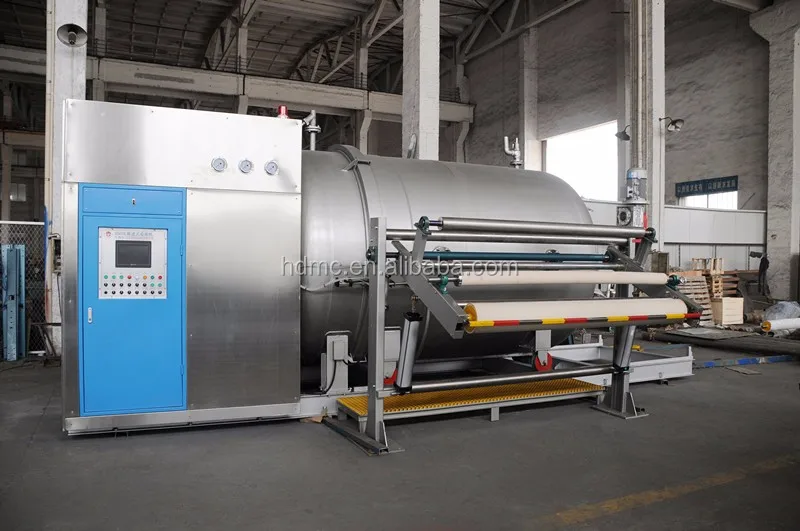

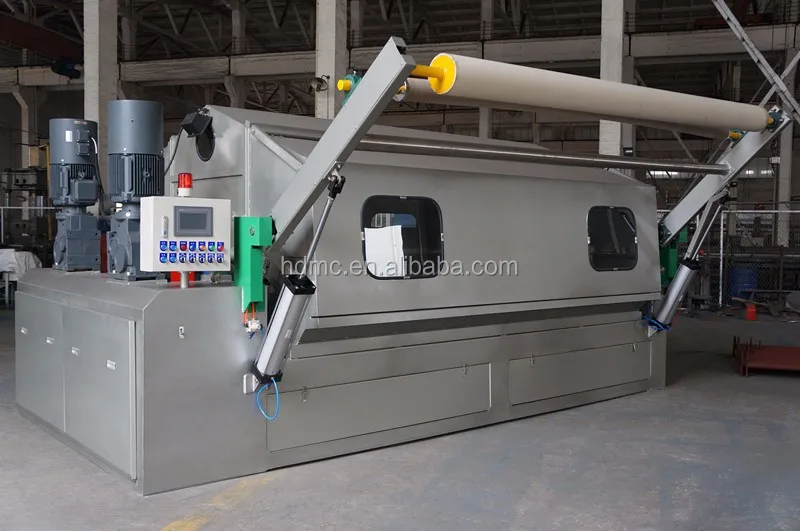

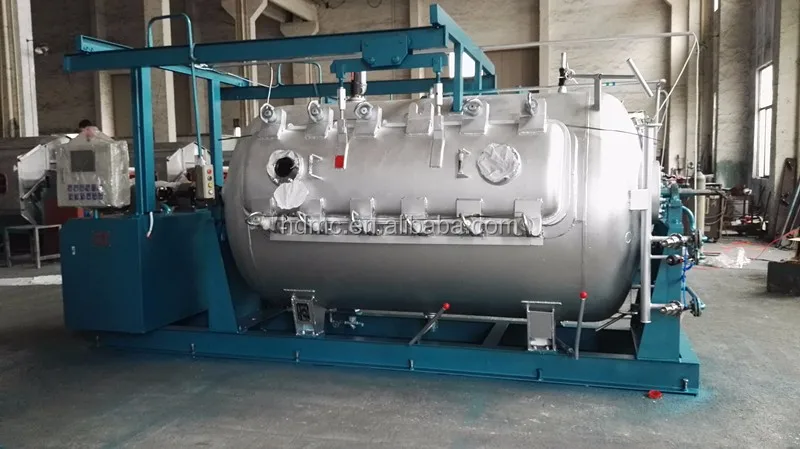

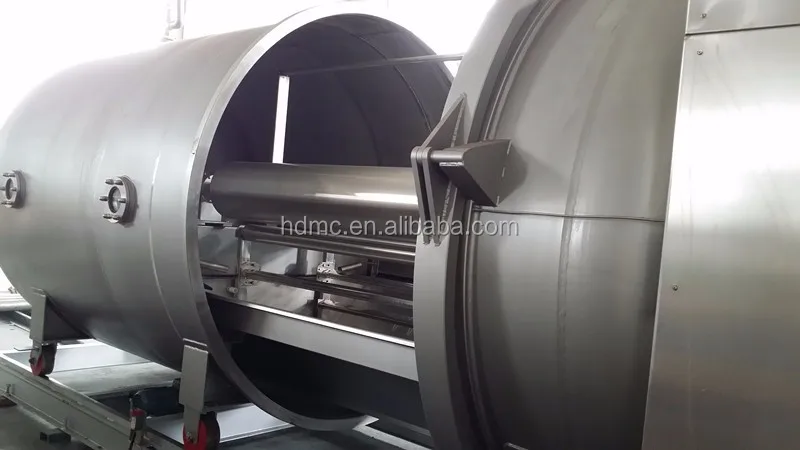

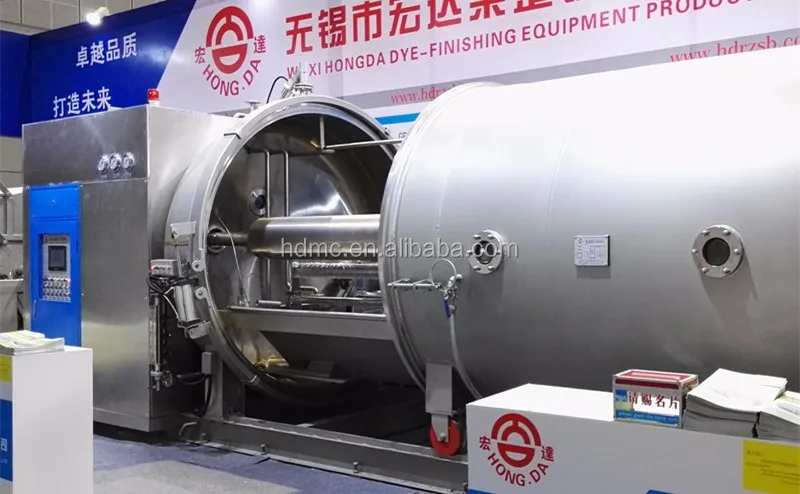

HD618 High temperature High pressure Jigger Dyeing Machine

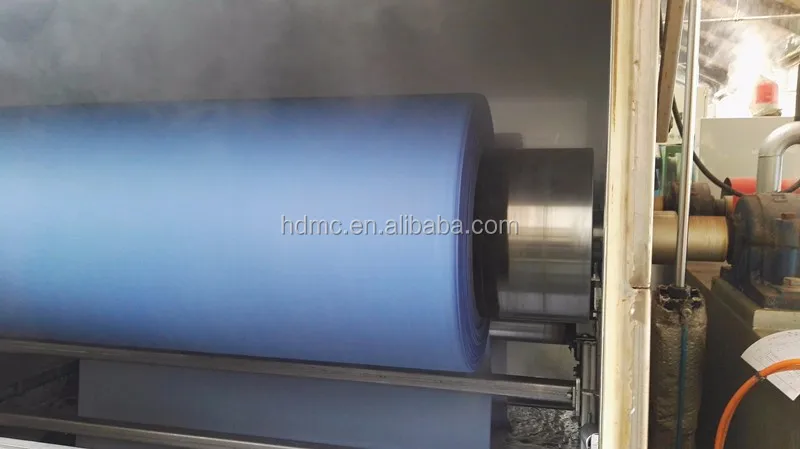

Cloth rolling diameter: Φ680mm~1200mm

Efficient working width: 1600mm~3400mm

Features: 1. High temperature high pressure
2. Open width dyeing
3. Double frequency converters

Application:

Suitable fabrics: Polyester, polyester cotton, viscose, nylon, cotton, linen, silk, elastic fabric, blended fabric, etc.

It is suitable for dyeing various kinds of fabrics in open-width form, and it's also widely used in desizing, bleaching, washing open-width fabrics.

Main technical parameters
1	Rolling diameter	Φ680mm / Φ800mm / Φ1000mm / Φ1200mm
2	Roller width	1800mm ~ 3600mm
3	Efficient width	1600mm ~ 3400mm
4	Fabric speed	2~120m/min
5	Tension range	0~60KG
6	Temperature control range	0~135℃
7	Rolling roller diameter	Φ220mm / Φ245mm / Φ300mm / Φ325mm
8	Motor power of main roller	2 sets, 5.5~11KW /set
9	Tank body mobile motor power	0.75KW
10	Motor power of circulating pump	1.5~3KW

Main control functions
1	Whole machine is dual frequency converter control system, human-computer operation interface
2	Set of constant tension, constant linear speed
3	Functions of manual, automatic, speed up, slow down
4	Automatic head back, automatic record, automatic stop machine, automatic swing function if line is full
5	Whole machine automatic temperature control, technological operation
6	Operation screen programmable set, technology storage, automatic identification, automatic alarm
7	Liquid level automatic control, automatic charging, automatic circulating

Detailed Images

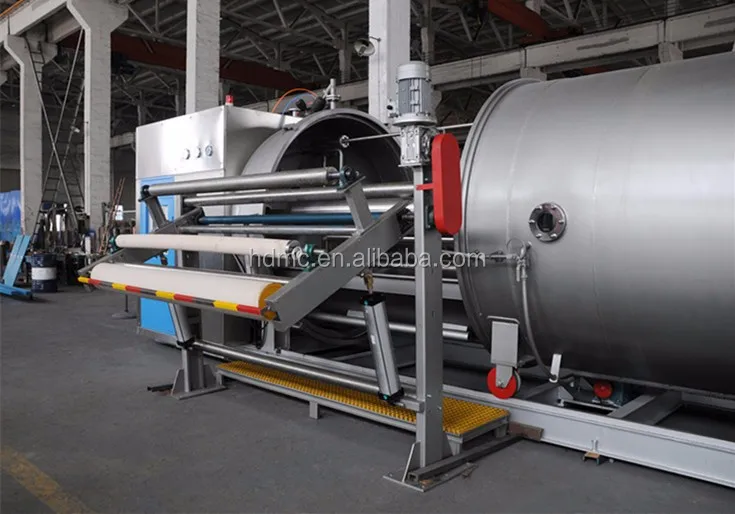

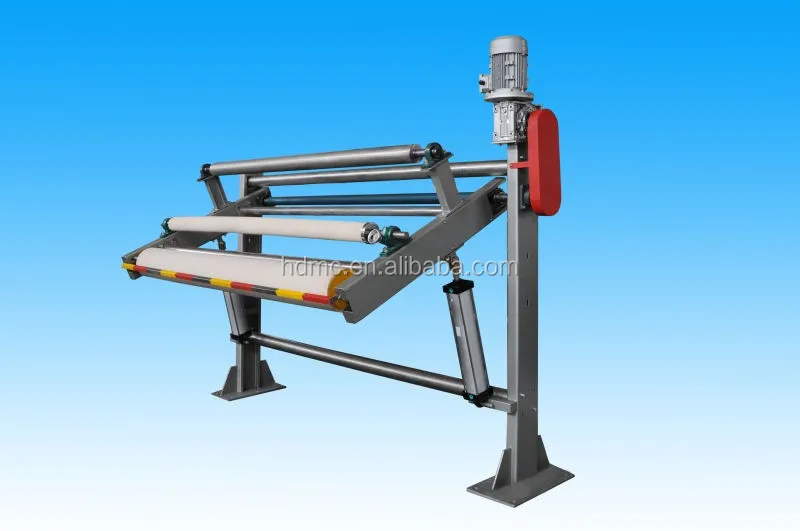

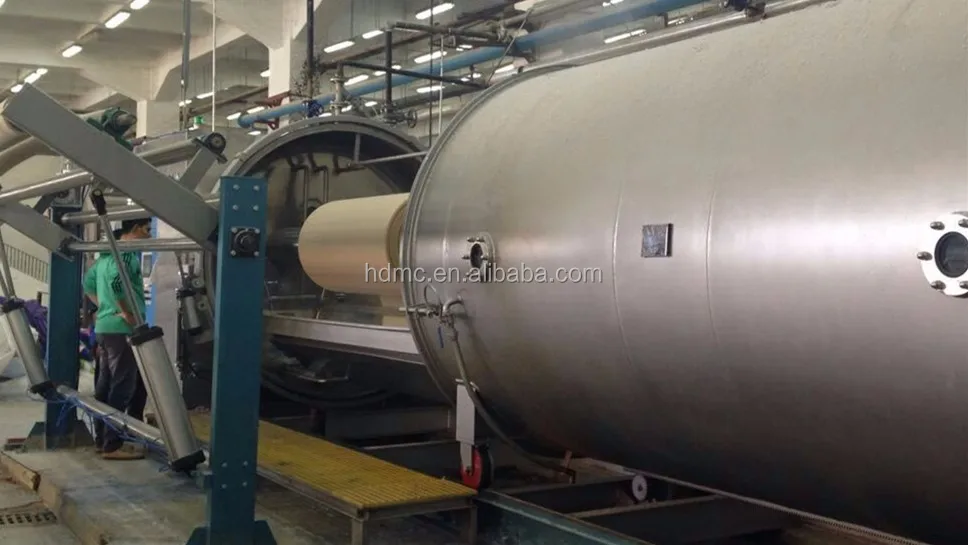

Doffing frame

For drawing out fabric (fabric unloading)

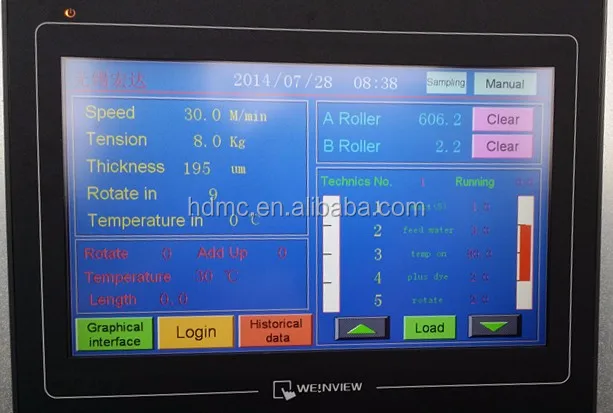

Touch screen

English/Russian/Spanish version

Heat exchanger

A external heat exchanger

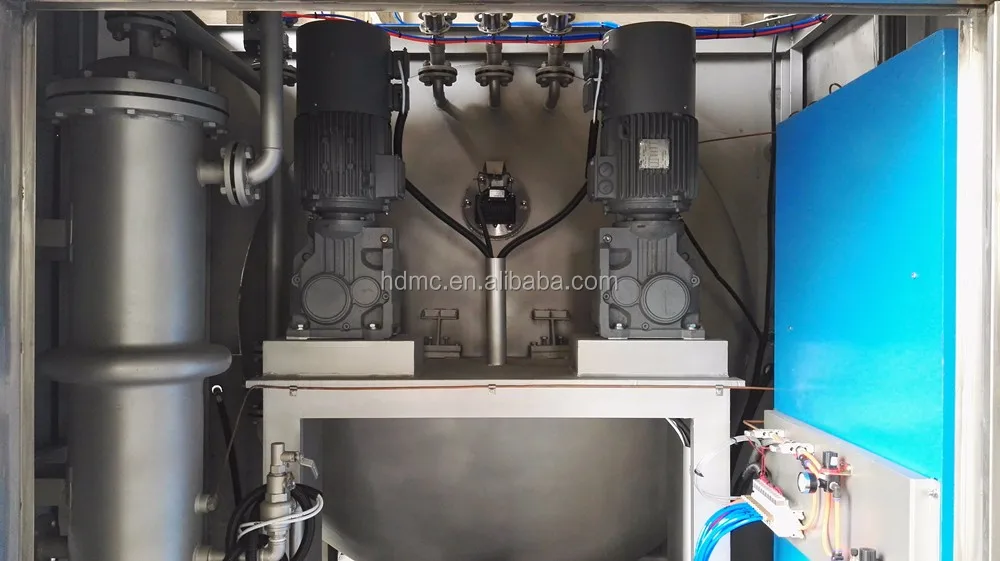

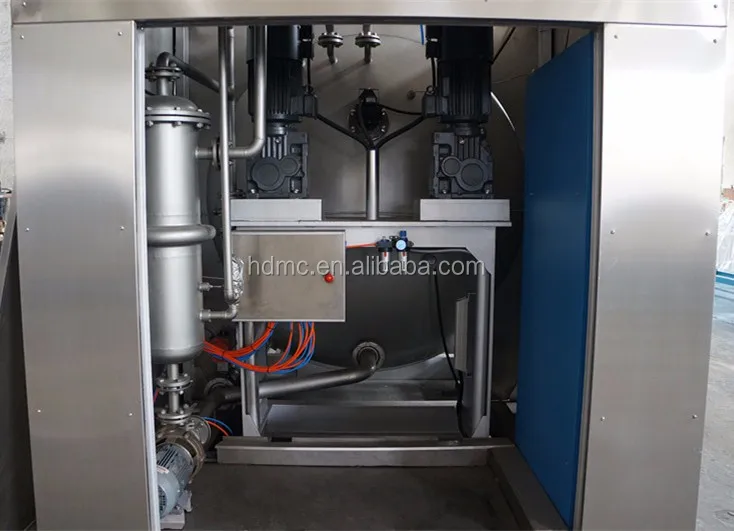

Motors

Two linking type motor reducing gear

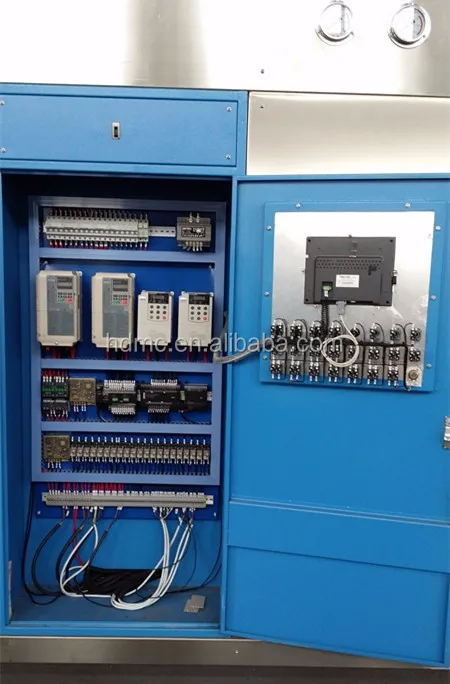

Electrical cabinet

Including PLC, frequency converters, relay, etc.

Main electrical components
Controller	Omron PLC
Frequency converter	2 sets of Yaskawa inverter
Low-voltage electrical components	Schneider
Motor	Two linking type motor reducing gears
Operation interface	Taiwan Weinview touch screen
