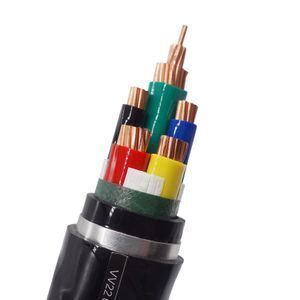

4 core underground electrical armoured cable power cable 25mm 35mm 50mm 70mm 95mm 120mm 185mm 240mm 300mm power cable

Product details
Type:LOW VOLTAGE;Conductor:Copper Core;
Rated Voltage:0.6/1KV;Insulation:xlpe;
Conductor Material:Copper;Place of Origin:Guangdong China;
Packaging Detail:Inner packing:Wooden reel,Plastic reel,Paper reel Ourter pakcing:Carton box,Pull outbox,Palleta available.;Material:Copper;
Jacket:PVC Jacket,PVC;Port:SHENZHEN;
Product name:armoured cable;Stock:>500roll;
Certification:UL,ROHS;Payment Terms:L/C,T/T,Western Union;
Model Number:YJV;Color:black;
Application:Underground;Cores:3 core;
Brand Name:JZD;Insulation Material:Xlpe;
Supply Ability:10000 Kilometer/Kilometers per Month;

4 core underground electrical armoured cable power cable 25mm 35mm 50mm 70mm 95mm 120mm 185mm 240mm 300mm power cable


Product Description



Product feature and purpose:

 Cross-linked polyethylene insulated power cables is characterized with high mechanical   strength,strong   resistance to environmental stress,excellent electrical properties ,powerful resistance   to
 chemical attack.In addition,the light and simple products are user-friendly.This product is suitable and   designed   for power transmission and distribution system of rated voltage 0.6/1kv.In terms
 of the main feature of anti-flaming cable,the cable is not liable to ignite or continued ignition is only   limited to a certain scope applicable to power station ,subway ,tunnel ,high-rise building,large
 industrial and mining enterprise,oil field,coal mine and other places of intensive distributed electric   cables.
Operative standard:
 GB/T 12706,IEC 60502 and relevant domestic and international standard.For   example,BS,VDE,JIS,AEIC,and so on.
Operational performance:
 The maximum allowable operating temperature of the cable conductor:90 C in normal condition and   250 C in case of short circuit (maximum duration of short circuit is 5s).

NO.of cores×section
(mm²)

Normal insulation

 thickness(mm)

Normal thickness of

oversheath

Approximate overall

diameter of cable(mm)

Approximate weight

of cable(kg/km)

CuAL
UnarmouredArmouredUnarmouredArmouredYJVYJV22YJLVYJLV22
4×40.71.81.812.5 18.1282430//
4×60.71.81.814.717383545//
4×100.71.81.816.919.1565752390517
4×160.71.81.819.321.67831020416663
4×250.91.81.823.525.712411502593902
4×350.91.81.826.728.7163119577761096
4×501.0 1.81.928.0 32.6208028129611770
4×701.12.0 2.1 33.237.5 2952379613022222
4×951.12.1 2.338.0 42.63970496216932757
4×1201.22.32.440.946.44894591320773363
4×1501.42.42.646.0 51.35980717028523878
4×1851.62.62.752.557.87442880231734618
4×2401.72.83.0 59.464.697641128940325782
4×3001.83.0 3.166.271.6121221385649246735
4×4002.0 3.3 3.473.880.3 156241840762729313
4×5002.23.53.789.3961987723264766711062
4×6302.43.84.0 99.6106.32512428895951413293
