R404a copeland scroll refrigeration condenser unit for freezer room

Supplier: Shanghai Meluck Refrigeration Equipment Co., Ltd.
Region: Shanghai, China
Price: $480.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Condition:	New;	Local Service Location:	Egypt,Viet Nam,Kenya,Uzbekistan;
Video outgoing-inspection:	Provided;	Port:	shanghai;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Restaurant,Retail,Food Shop,Food & Beverage Shops;	Payment Terms:	L/C,T/T;
Packaging Detail:	wooden case/carton;	Voltage:	380V/3P/50HZ,220V/1Ph/50HZ,220V/3PH/60HZ;
Refrigerant:	R404a/R134a/R507a;	Type:	COMPRESSOR;
After Warranty Service:	Video technical support;	Marketing Type:	New Product 2020;
After-sales Service Provided:	Free spare parts;	Certification:	ce,UL;
Warranty:	1 Year;	Compressor:	Copeland Compressor;
Brand Name:	Meluck;	Supply Ability:	100 Unit/Units per Day for freezer;
Showroom Location:	Egypt,Viet Nam,Kenya,Uzbekistan;	Place of Origin:	Anhui China;

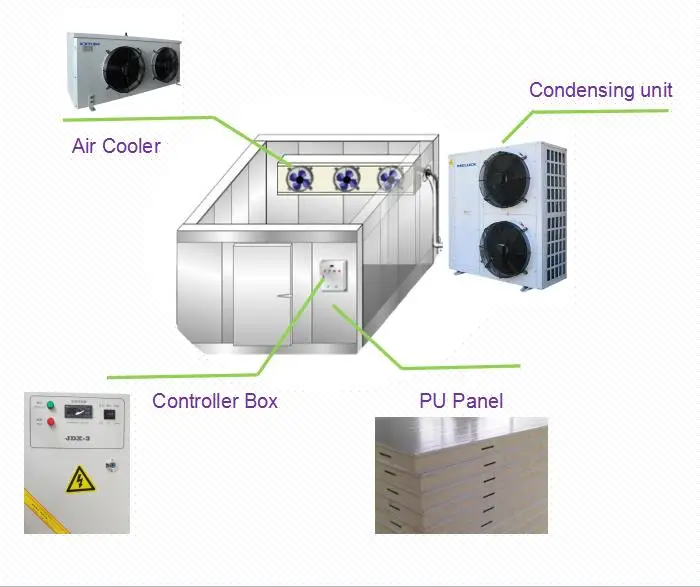

Application:	Cold Storage Room Freezer Room;	Warranty of core components:	1 Year;
Core Components:	compressor,condenser;	Machinery Test Report:	Provided;

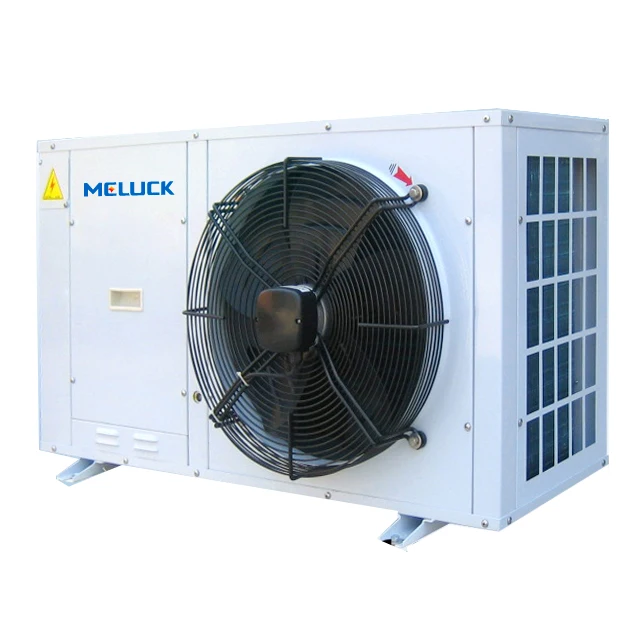

R404a copeland scroll refrigeration condenser unit for freezer room

1. Product description

This series products feature box type structure with hermetic Emerson Copeland hermetic scroll compressor, that is compact and pleasant looking. They use U shape condensers and external fans, are applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are: -15~5℃,-18~-20℃ They can be used in hotels, restaurants, medicines, agricultureral, chemicals industries all other place where cold storage is needed.

2. Main components

1:Compressor, 2:oil heater 3:oil separator 4:vibration eliminator 5:filter 6:solenoid 7: pressure limitator 8:oil pressure protector 9: gas separator 10: condenser 11: liquid receiver 12: sight glasses 13: pressure switch 14: H/L pressure gauge.

3.Specifications

Model	XJW02MAGY	XJW03MAGY	XJW04MAGY	XJW05MAGY	XJW06MAGY
Comp Power	2HP	3HP	4HP	5HP	6HP
Comp Model	ZB15KQE	ZB21KQE	ZB29KQE	ZB38KQE	ZB45KQE
Cooling Capacity KW (Evap Temp -10℃)	3080	4680	6360	8020	9380
(Notes:Cold room temp -15~5℃ Ambient Temp 32℃ Condensing Temp 45℃)

Model	XJW02LAGY	XJW03LAGY	XJW04LAGY	XJW05LAGY	XJW06LAGY	XJW07LAGY
Comp Power	2HP	3HP	4HP	5HP	6HP	7HP
Comp Model	ZSI06KQE	ZSI 09KQE	ZSI 11KQE	ZSI 5KQE	ZSI 18KQE	ZSI 21KQE
Cooling Capacity KW (Evap Temp -25℃)	1620	2290	2920	4220	5180	5770
(Notes:Cold room temp -18~-20℃ Ambient Temp 32℃ Condensing Temp 45℃)

Click Here Get Product Prices!

FAQ

Q1: Are you a factory or a trading company?

A1: We are one of the largest refrigeration equipment manufacturers in China.

Q2: Where is your factory located?

A2: Our factory was located in Fenggong Rd,North Xuanzhou Economic Development Zone,Xuancheng City,Anhui,China.

Q3: Is Anhui Meluck be the same with Shanghai Meluck?

A3: Yes, Anhui Meluck, Shanghai Meluck and Zhengjiang Bingfeng are belong in Meluck group.

Q4: Can the product be customized according to specifications?

A3: Yes, we are pretty strong on design and manufacturing of tailor made products, the drawings will be sent to our clients for approval before the samples are made.

Q5: What are the payment terms?

A5: We support 30% deposit in advance and the balance 70% T/T will be paid against copy of BL
