2020 new 5 to 20 cars space Automated Tower Vertical Rotating Car Parking system

Supplier: Beijing Jiuhong Heavy Industry Machinery Co., Ltd.
Region: Beijing, China
Contact: Ms. Wang Fannie
Price: $61200.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Loading Capacity:	1800-2500kg;	Warranty:	1;
Place of Origin:	Beijing China;	Port:	Qingdao;
Control system:	PLC;	Voltage:	380V/50HZ/3Phase;
Operation Model:	Slot card+digital button;	Car no.:	3n-2;
Packaging Detail:	package with shock absorption plastic; Iron shelf it could design for your requirement.;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Lifting model:	Hoist+steel wire rope/chain;	Product Name:	rotating car parking system,vertical car parking system;
Lifting speed:	4-5m/min;	Package Preview:	;
Brand Name:	JIU-ROAD;	Lifting power:	2.2kw;
Type:	Parking Lift;	Supply Ability:	5000 Unit/Units per Year;
safety system:	included;	Model Number:	PCX;
Material:	steel painted or hot dip galvanized;

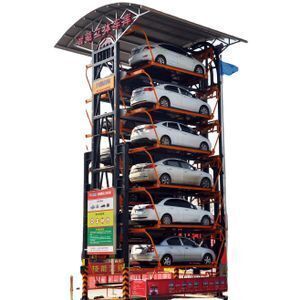

Vertical rotary car parking system

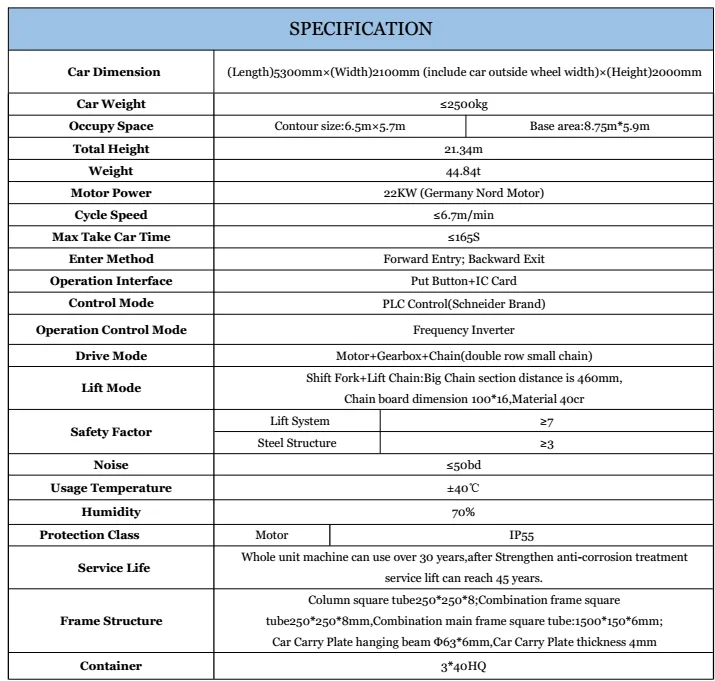

a) Technical parameter for 16 cars Rotary car parking system

b) Description

The Elevator System:

The elevator is in charged of the lifting movement of the vehicles,which mainly composed by steel structure,carriage,counter weight,drive system,guide devices,safety protection devices.

The Entrance & Exit System:

It mainly includes automatic door, turn table, scanning device, voice prompts etc, that ensure the safety of users and cars, and fast accurately find the vehicle.

Advantages:

1.Less land occupation, large capacity, high density parking.

2.Single garage could be disposed multi-entrances to improve the using efficiency and relieve congestion at the peak period.

3.Automatically revolving and U-turn while parking and picking out for users convenience.

4.Full use of spaces and flexible building garage according to area and users’ request.

5.Flexible structures as the whole ground structure or half underground structure, steel structure or concrete structure.

6.High efficiency and fast speed: realized multi-user’s parking and picking at the same time; average parking time is no more than 90 seconds.

c )Design drawings:

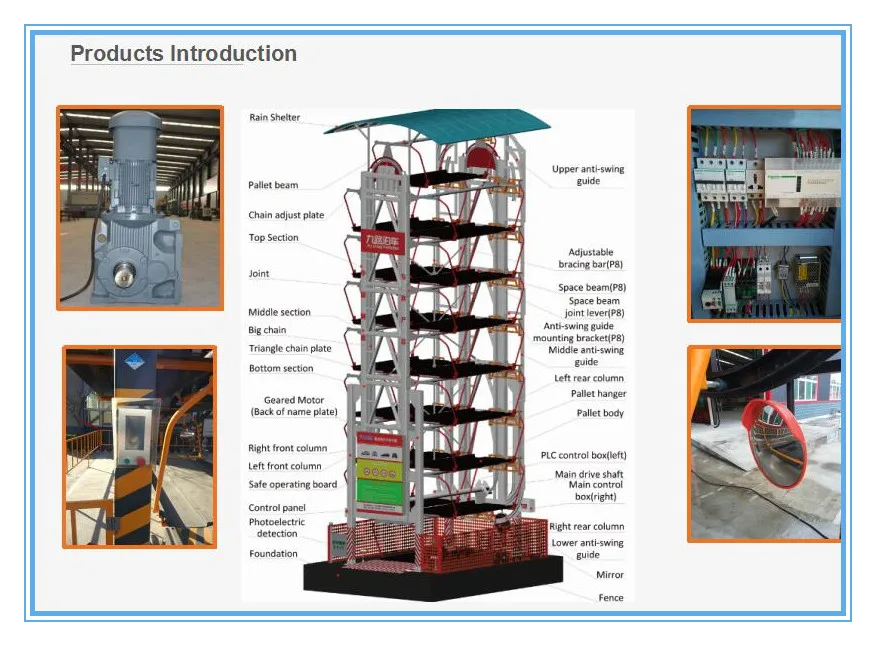

d)Main system :

1) The elevator systems

2) The entrance & exit systems

3)The carrier systems-Fork /clamp exchange structure

4) Electrical control systems

5) Intelligent management systems

6)Monitoring & chargement systems

e)Company information

Shandong jiu road parking equipment co., ltd is belonging to beijing jiuhong heavy industry group.jiu road parking is a famous fully integrated parking equipment manufacturer incorporating researching and development, design, manufacture, installation and after -sales service.with registered capital rmb 50 millions.covers 53000 square meters, has more than 300 workers, including 8 senior engineers, 23 engineers.we have 15 national invention patents, the first enterprise using the germany serva technology and hoist supporting in the china smart production parking system.we focus on research high level vertical rotary parking system;the quality is in the international leading level.we are national high-tech enterprise, member of china parking industry association;safe &standard production level a enterprise of shandong province, good standardizing practice enterprise.and we have got the adopting internationalstandard product marking certificate, etc and many other honorary titles.
