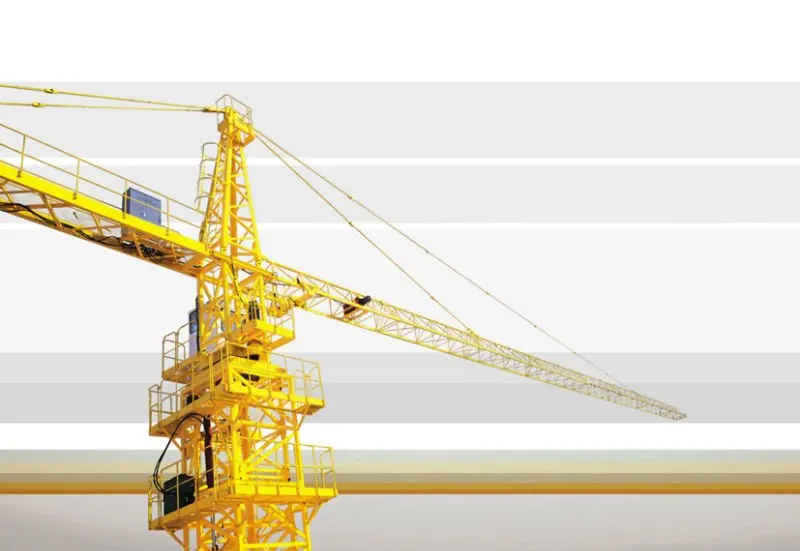

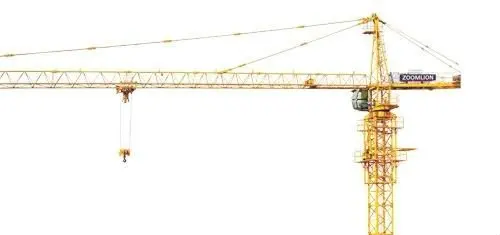

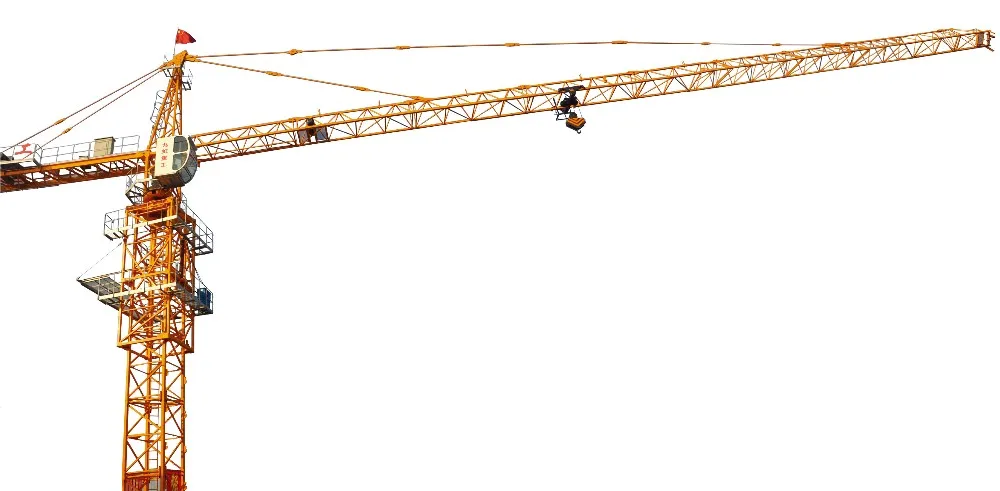

mast section hoist QTZ5210/5610 tower crane,construction hoist crane

Supplier: Beijing Jiuhong Heavy Industry Machinery Co., Ltd.
Region: Beijing, China
Contact: Ms. Wang Fannie
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Counter Weight:	15.6t;	Motor Total Power:	39.6;
Condition:	New;	Port:	Any port in China;
Model Number:	QTZ5610;	Feature:	Tower Crane;
Slewing Speed:	0.63m/min;	Traveling Speed(m/min):	40/22;
Max. Lifting Height:	150m;	Color:	Yellow;
Delivery Detail:	Shipped in 7 days after payment;	Span:	56m;
Place of Origin:	Beijing China;	Climbing Speed(m/min):	0.4;
Main Material:	13513512 Square Steel Tube;	Max. Lifting Load:	6ton;
Application:	Construction;	Rated Loading Capacity:	6t;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Brand Name:	Jiuhong;
Mast section:	1.81.82.8;	Name:	mast section hoist QTZ5210/5610 tower crane;
Packaging Detail:	mast section hoist QTZ5210/5610 tower crane package with shock absorption plastic; Iron shelf and wooden box could design for your requirement.;	Hositing Speed(m/min):	74/38/8;
After-sales Service Provided:	No overseas service provided;	Certification:	CE ISO BV SGS;
Rated Lifting Moment:	710KN.m;	Warranty:	1 Year;
Supply Ability:	2000 Set/Sets per Year;

Product Description

Product Application

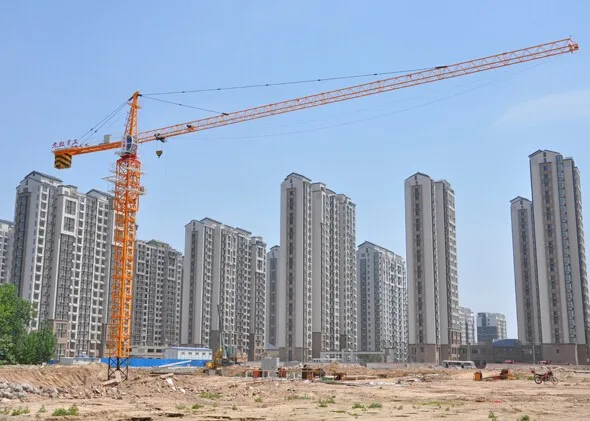

Jiuhong tower crane can be widely used for the construction of high-rise hotels,residential buildings,high-rise industrial buildings,larger-span factory buildings and tower-like building like tall chimneys.

QTZ Tower crane parameter
Model		QTZ 5610	QTZ5210
Max Working Radius (m)	t.m	71	63
hoisting height	m	40/150	30/120
Max lifting load	t	6	5
Max working scope	m	3-56	3-52
hoisting speed	M/min	0.63	0.63
slewing speed	R/min	a=2 79.4/37.7/8.5 a=4 39.7/19.9/4.3	a=2 60/30/8.2 a=4 30/15/4.1
luffing speed	M/min	40/22	45/23.5
total motor power	KW	39.6	32.6
counter weight	t	15.6	11.6
fundation weight	t	100	75
Max working wind pressure	Pa	250	250
working temperature	℃	-20~+40	-20~+40
voltage/frequency	V/Hz	~380/50	~380/50

Main Features

It is original in design,reliable in operation and satisfactory in shape.Equipped with all necessary safety devices,these cranes show a good speed-control capacity,satisfactory operating stability and high work efficiency.

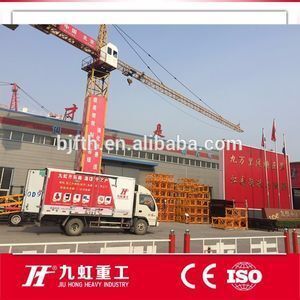

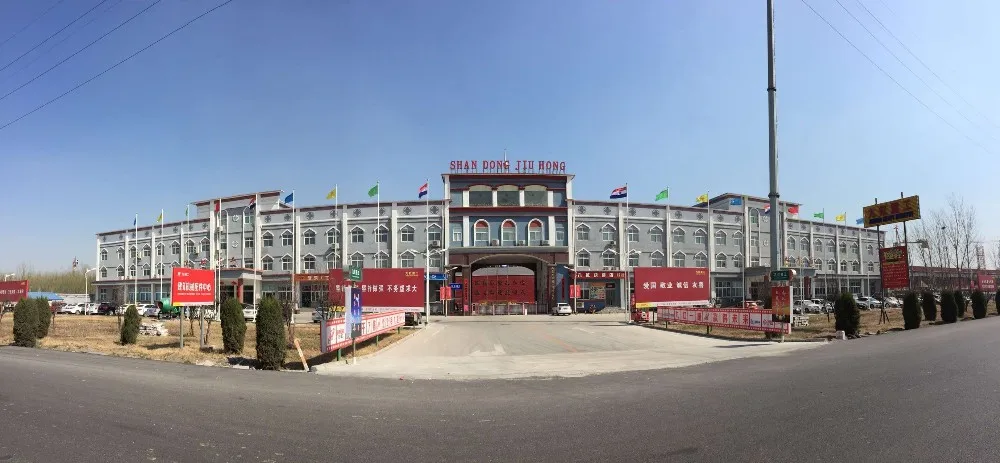

Our Company

Beijing Jiuhong Construction Machinery Co,Ltd is a professional and accurate technique corporation that specializes in researching and producing suspended platform, construction elevator, work platforms, parking system cradle, gondola,building hoist, material hoist, portal frame, suspended access equipment,which is one of the main enterprise for domestic building machine product export.In China, Jiuhong brand series product have spread all over the construction area,the product quality is first class, we could produce the all kinds of special construction machinery and non-standard equipment according to the requirements of customers.

The company covers an area of 6.1 million square meters,Building areas are 4.9 million square meters,the registered capital is 8 million RMB,and own the fixed assets of 80 million RMB. The employees more than 500 people(10 advanced engineer,25 engineer and technology worker are 37.)

Our products have been used in every corner in China, and have been exported to more than 20 counties, such as Middle South Asia, East Asia, Europe, North America, South America, Latin, Africa, Middle East Asia etc. The volume of export has reached to 30% of total year sales volume, the brand of Jiuhong has become world famous.

We insist in science and technology innovation, occupying markets with innovations, super quality and absolute faith. Our running principle is that quality comes first, customers come first, and reputation comes first. We face with friends and clients all over the world sincerely. To provide satisfied productions and services is our eternal pursuit and promise. Beijing Jiuhong hopes to cooperate with you sincerely.

Let us join hands with each other to advance and work for a prosperous future.

Certifications

Detailed Images

Machine Parts

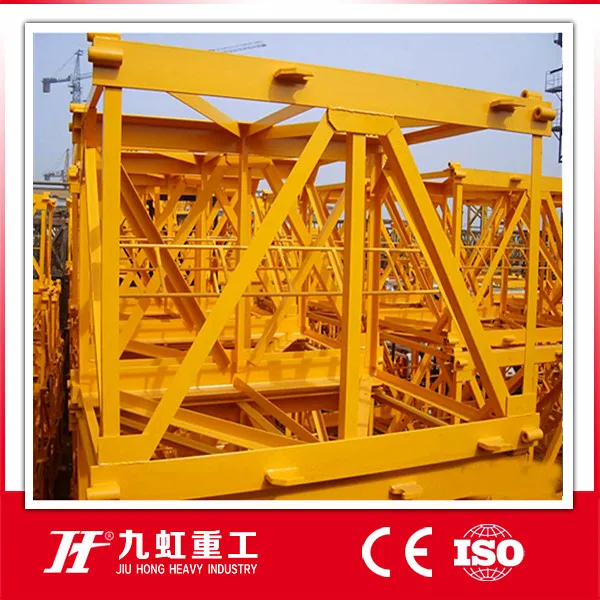

Name: Mast section

Brand: JIUHONG

Original: China

Our mast section produced by planomiller and robot welding and so on 12 working procedure.

Main Features

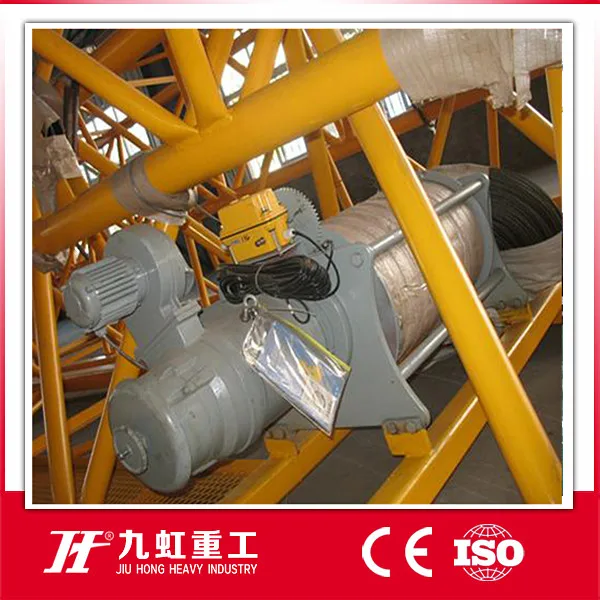

Name: Motor
Brand: JIUHONG
Original: China
The motor adopt the famous spare and inspected by our factory.Domestic famous engines, strong driving force, low fuel consumption, high economic benefits

Machine Parts

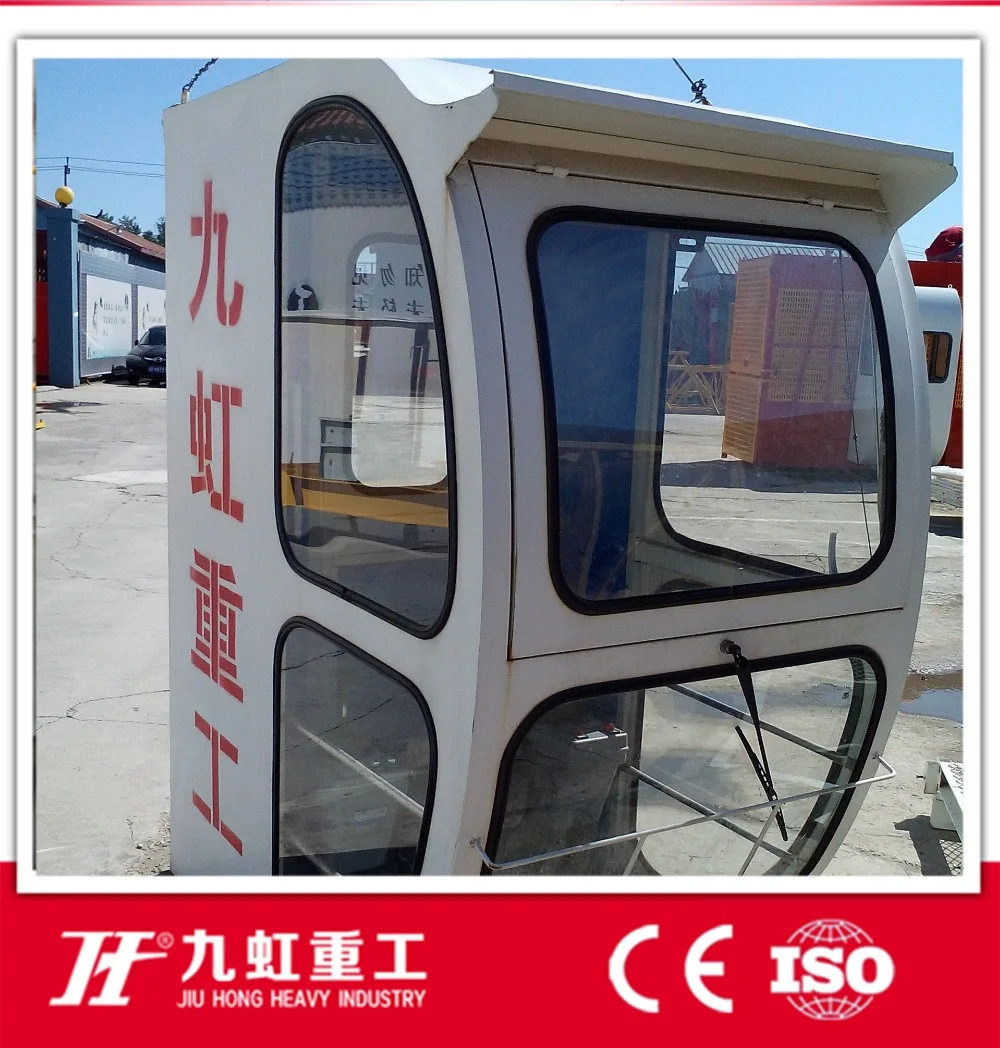

Name: Cab
Brand: JIUHONG
Original: China
The cab adopt the stalinite ensure the safety,and the structure is fit for the work to operate .

Main Features

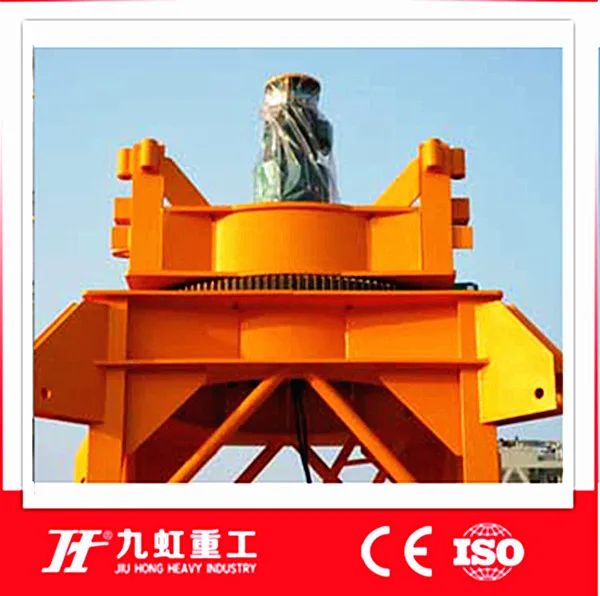

Name: slewing device
Brand: JIUHONG
Original: China
Domestic famous engines, strong driving force and adopt the q235 steel

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Customer Visit

Our products have been used in every corner in China, and have been exported to more than 20 counties, such as Middle South Asia, East Asia, Europe, North America, South America, Latin, Africa, Middle East Asia etc. The volume of export has reached to 30% of total year sales volume, the brand of Jiuhong has become world famous.

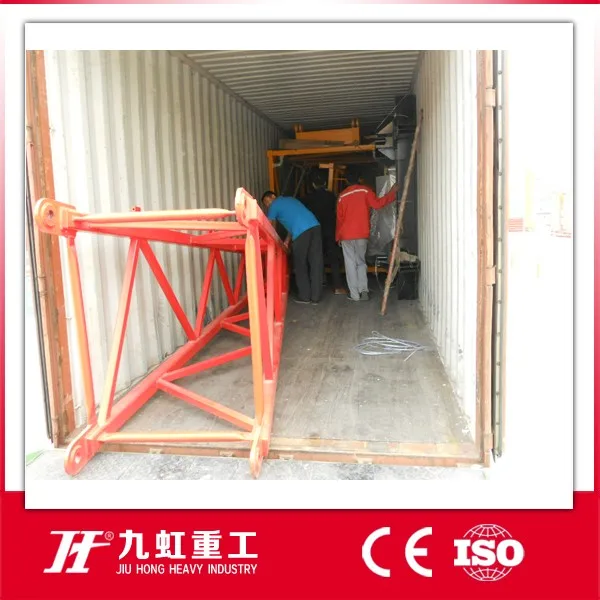

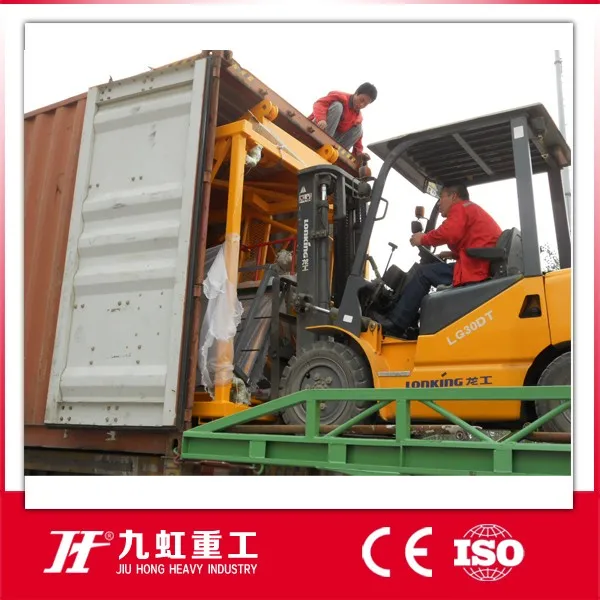

Packing & Delivery
