200w 220v Industrial electric Far Infrared ir ceramic heater plate for egg incubator
-
Supplier: Yancheng Yuheng Electric Heating Technology Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Susan Cai -
Price: $3.50 / >=10 pieces -
Min. Order: 10 pieces
| Material: | Aluminum Nitride; | Material: | Imported ceramic clay; |
| Packaging Detail: | 1. Quantity less than 200 pcs Carton Box for Infrared Ceramic Heater 2. Quantity more than 200 pcs Wooden Case for Infrared Ceramic Heater; | Supply Ability: | 5000 Piece/Pieces per Month for Infrared Ceramic Heater; |
| Type: | Electrothermal Ceramics; | Useful wavelength range: | 2-10 um; |
| Port: | Shanghai; | Recommended radiation distance: | 100-250mm; |
| Place of Origin: | Jiangsu China (Mainland); | Average Operating Life: | More than 20000 hours; |
| Accessories for option: | Thermocouple,reflector, ceramic terminal block; | Heating wire: | Nichrome 8020; |
| Brand Name: | Yuheng; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal for Far Infrared Ceramic Heater; |
| Model Number: | Infrared Ceramic Heater; | Terminal: | I or O; |
| Operating temperature: | 300-800; | Type: | Infrared Ceramic Heater; |
| Color: | Black,white or any other color in large quantity; |
Infrared Ceramic Heater

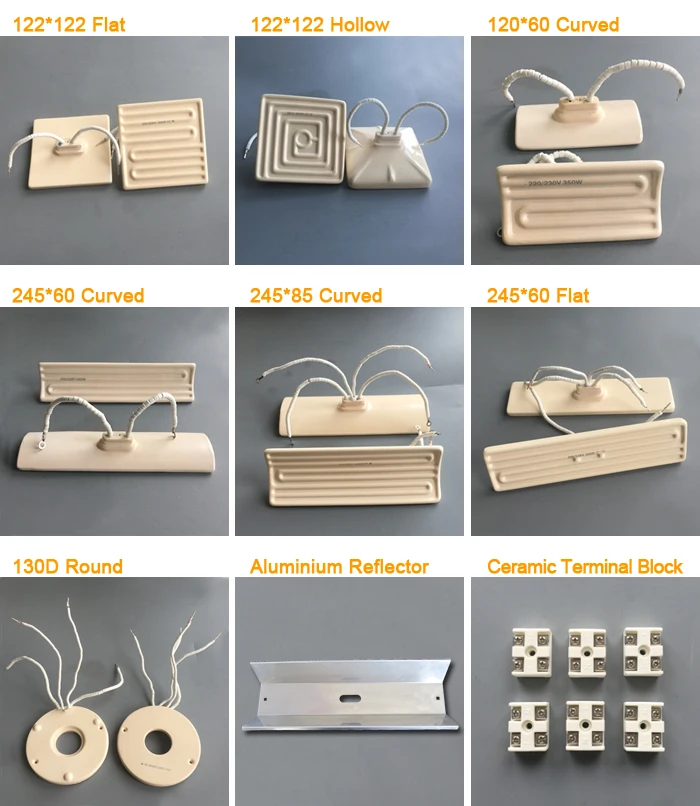

Infrared Ceramic Heater is efficient, robust heaters which provide longwave infrared radiation. Far Infrared Ceramic Heater produced by Yuheng include ceramic trough elements, ceramic hollow elements, ceramic flat elements, and ceramic infrared bulbs.
| Wattage available | 150 - 1000 watts |
| Dimensions | 122 x 122mm |
| Resistance wire | Nichrome 8020 |
| Heater Voltage | 230 Volts standard (available on request) |
| Useful wavelength range | 2-10 microns |
| Average Operating Life | Up to 20,000 hrs depending on conditions |
| Certification | CE |
| Recommended radiation distance from heater | 100 mm to 200 mm |
| 100mm ceramic beaded power leads | Supplied |
| Far Infrared Ceramic Heating Element | 150W | 250W | 300W | 400W | 500W | 650W | 750W | 1000W |
| Mean surface temperature | 262ºC | 354ºC | 400ºC | 464ºC | 486ºC | 589ºC | 634ºC | 722ºC |
| Max permissible operating temperature | 750ºC | |||||||
| Max power density kW/m² (w/inch²) | 0.9 (5.8) | 1.5 (9.7) | 1.8 (11.6) | 2.4 (15.5) | 3.0 (19.4) | 3.9 (25.2) | 4.5 (29) | 6.0 (38.3) |
| Radiant Watt density at 100mm W/cm² | 0.1 | 0.26 | 0.48 | 0.69 | 1.14 | |||
| Average Weight | 270g. | |||||||
| Dimensions | 122 x 122mm | |||||||
| Useful wavelength range | 2 to 10µm. | |||||||

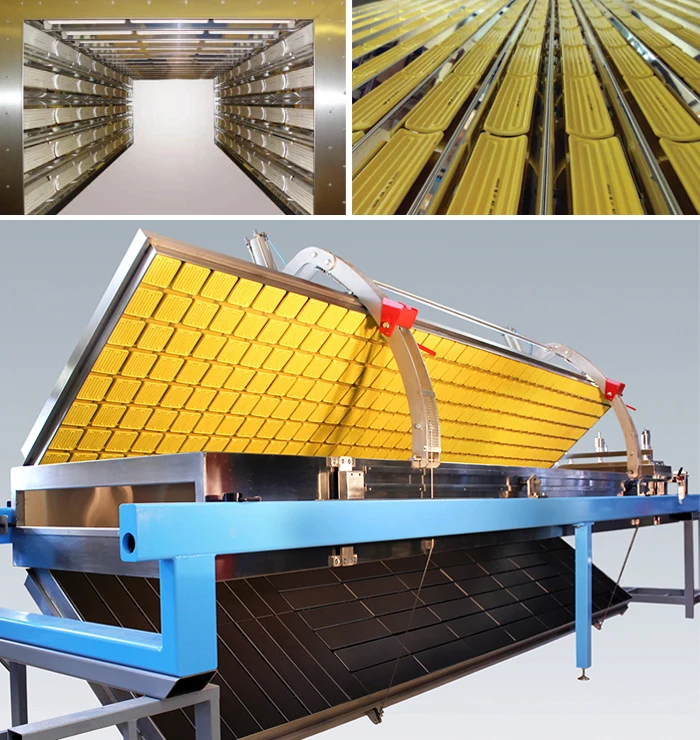

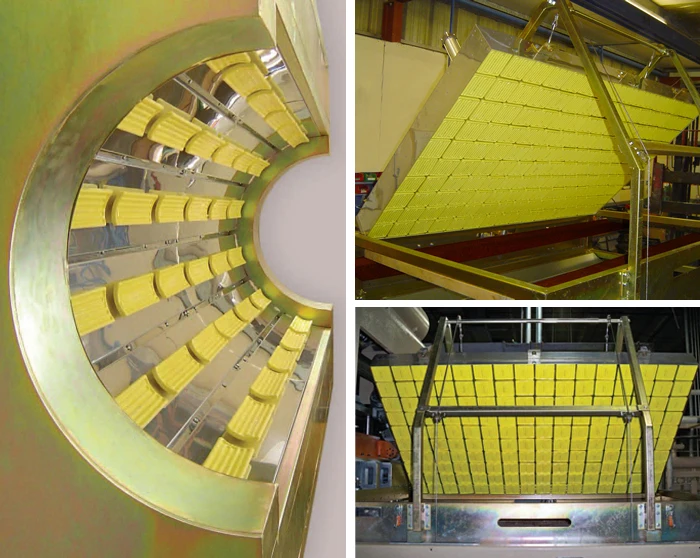

Infrared Ceramic Heater is used in a diverse range of industrial and engineering applications such as thermoforming heaters, packaging and as heaters for paint curing, printing, and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas.
1. Packing for Infrared Ceramic Heater
Export carton packing box for small qty;
Export wooden packing box for large qty.
2. Shipping for Infrared Ceramic Heater
1. Fedex/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods;
3. Customers specifying freight forwarders or negotiable shipping methods;
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
Warranty for Infrared Ceramic Heater
2-year quality assurance
Return Policy for Infrared Ceramic Heater
If our product defect within the warranty period, Pls kindly provide us pictures or video, we will show it to our engineer to figure out the problem, then send you a replacement in the next order.
1. Why the price is so low?
You are ordering directly from the factory.
2. Where is your factory located? How can I visit there?
Our factory is located in Yancheng City, Jiangsu Province, China, about 4 hours bus ride from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us.
3. What type of payment do you have available?
A:We accept TT and L/C, a sample order, the Paypal, Western Union, Money gram and Aliexpress is available.
4. How can I get some samples?
We are honored to offer you free samples, but pls take the freight for the sample.
5. How does your factory do regarding quality control?
"Quality is in my hand, customer in our heart”. we always attach great importance to quality controlling from the very beginning to the very end.
Welcome to contact us for more details, most competitive price for you!
