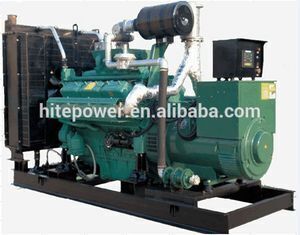

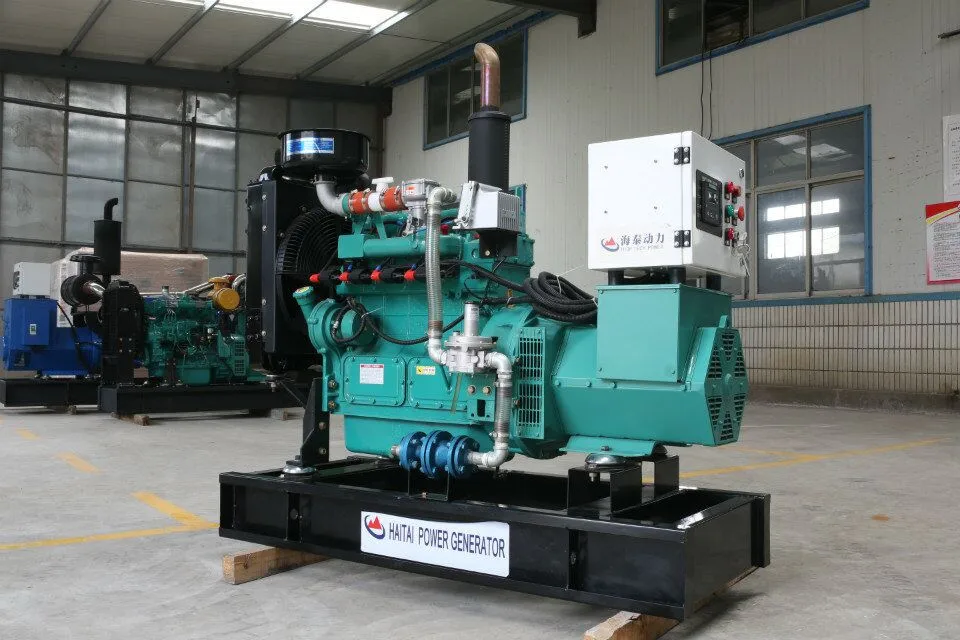

China power plant for sale wood pellets generator electric/biomass generator electric

Product details
Rated Current:18-1800A;noise level:90dBA;
Place of Origin:Shandong China;Rated Voltage:400/230V;
Packaging Detail:Shrinking film or Plywood package on export standard.;regulator:AVR;
start method:electric start;module:GU641B;
protechtion class:IP23;Insulation class:H;
Output Type:AC Three Phase;Brand Name:HAITAI;
gas mixer formation:Pre-Mix;Model Number:HT-10GF--HT1000GF;
Speed:1500/1800 rpm;Frequency:50/60Hz;
Supply Ability:380 Set/Sets per Month;Certificate:ISO,CE;
Rated Power:10-1000kw;Port:Qingdao,China;
Payment Terms:L/C,T/T;Warranty:12 months;
cooling method:water cooled;Delivery Detail:7-20 working days after the deposit.;

Product Description

Advantages:

1. An advanced high-energy ignition system, the engine ignition is reliable.
2. Using advanced electronic governor and gas regulator system, make the unit more stable and reliable.
3. Unit-specific components, convenient maintenance, low cost.
4. Good economy, low operating costs, long life unit.



Techinical requirement:

1. operation condition:
Ambient temperature: <45°c
sea level: < 1000m
Humidity ratio: <60%
2. Lubricating oil: 15w/40L-ECD suggested
3. Gas intake pressure: < 0.45 mpa
4. Impurity particle size: <5μm ,no free water
5. Content of sulfur: ≤ 250mg/Nm3
6. Heat Value >1800kcal



China power plant for sale wood pellets generator electric/biomass generator electric



ModelHT10GF-HT1000GF
Rated power range10-1000kw
Phase No.3 phase or single phase
Rated voltage400/230,as your required
Rated frequency50Hz
Rated current18-1800A
Voltage regulatorAVR
Start mode24V electrical start
Speed regulation modeElectronic Governor







Engine datas

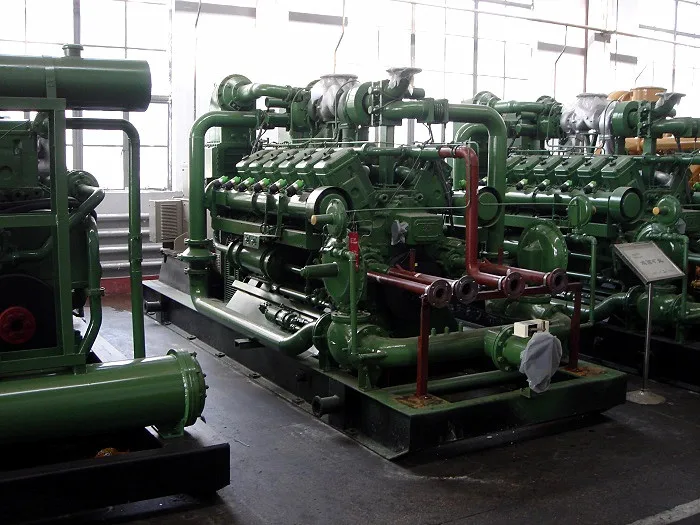

Gas Engine details
Model

Rated

Power

No. of

cylinders

Cylinder Piston

Air intake

Mode

Biomass
BoreStroke Cons.
kWmmmmcbm/kwh
H2100D142100115Natural1.8
H2100D142100115Natural1.8
H4100D254100120Natural1.8
H4100D254100120Natural1.8
H4105D 384105130Natural1.8
H6105D 586105130Natural1.8
H6105D 586105130Natural1.8
H6135D 926135150Natural1.8
H6135D 926135150Natural1.8
H6140D 1326140150Natural1.8
H6140D 1326140150Natural1.8
H12V135D17012135150Natural1.8
H12V135D17012135150Natural1.8
H12V135D17012135150Natural1.8
H12V138D23012138150Natural1.8
H12V138D23012138150Natural1.8
H6190ZD3306190210Turbo 1.8
H6190ZD3306190210Turbo 1.8
H12V190D45012190210Natural1.8
H12V190ZLDT56012190210Turbo 1.8
H12V190ZLDT-280012190210Turbo 1.8





The brushless alternator

BrandStamford, Leroy semor, Maraton etc.
RegulatorAVR automatic voltage regulating
Excite typepret or shunt
Connecting type3PH star, 3PH-DELTA
Steady frequency change0-5%
No load voltage≥95%-105
Steady voltage≤±1
Insulation degreeH degree
Exclosure degreeIP23







Good quality spare parts:

Performance feature:

*Built-in damper for anti-vibration .

*Small size ,low weight, easy to operating,installation and maintenance.

*World most famous brand diesle engine .

*Advanced and reliable AC alternator :Stamford,Marathon,Leroy Somer ,MVC.

*Full range protect function and alarm shutdown feature.



Main function of control system:

1. Display function: loading power, voltage, currencies, frequency, speed, temperature, oil pressure, running time etc.



2. Protection function: over-current, under-voltage, auto-regulate voltage, reverse power etc.



3. optional system: AMF & ATS.

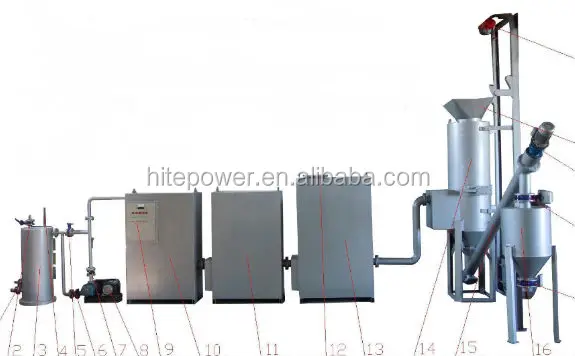

Optional Choice-Biomass gasifier:



CHP:

Packaging & Shipping



1) Shipment: by FCL or LCL.
2) Delivery time: 7-15 working days after the deposit.
3)Package:  Outside package: Plywood case on export standard.
                        Inner package: Shrinking film with foam.




Our Services

Competitive service:



1) More than 15 years advanced production experience.


2) As OEM factory, we have obvious competitive in price and leading times.


3) Provide debugging and maintenance service to you.



4) Professional 8 Hours testing for Generator before shipment.


5) 1500 hours warranty on the spare parts free provide & technical support in machine life.


Company Information

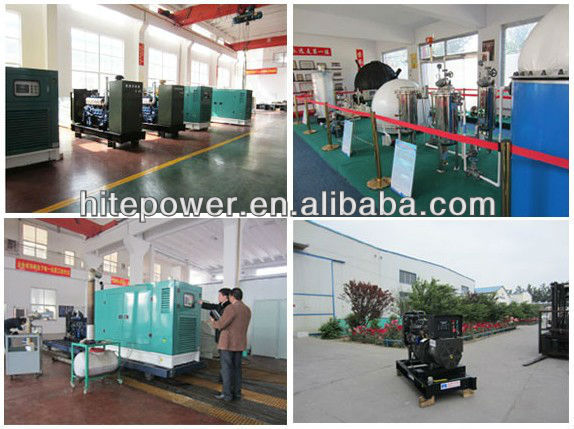

Our factory:
