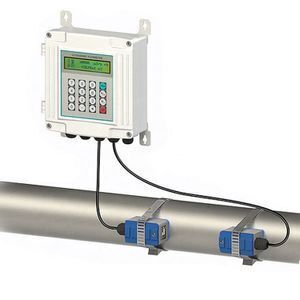

Digital wall-mounted ultrasonic flowmeter clamped on PVC, carbon steel, stainless steel water pipes

Supplier: Henan Junyuan Automation Equipment Co., Ltd.
Region: Henan, China
Contact: Mr Eric Zhou
Price: $80.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	Junyuan;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Measured pipe caliber:	DN15-6000;	Product Name:	Digital Ultrasonic Flow Meter Clamp On Ultrasonic Flowmeter;
Packaging Detail:	Digital Ultrasonic Flow Meter Clamp On Ultrasonic Flowmeter packed by Wooden case with poly foam inside Or according to customer's requirement;	Protection level:	IP67,Sensor:IP68;
Place of Origin:	Henan China;	Medium:	Water ,Sea water,beer,Sewage,oil ects;
Flow rate range:	0---±10m/s;	Port:	shanghai,qingdao,dalian,shenzhen,Dalian;
Communication:	RS485 ,Moubus;	Accuracy:	1%;
Power supply:	DC8-36V, or AC85-264V;	Output:	4-20Ma;
Supply Ability:	3000 Set/Sets per Month Digital Ultrasonic Flow Meter Clamp On Ultrasonic Flowmeter;	Model Number:	JYTUF-2000B;
Liquid temperature:	-30℃---+160℃;	Type:	Variable Area Water Flowmeters,Variable Area Petrolum Flowmeters,Variable Area Oil Flowmeters;

Product description

Digital Ultrasonic Flow Meter Clamp On Ultrasonic Flowmeter

Ultrasonic flowmeters measure water, seawater, industrial sewage, acid and alkali, alcohol, beer, various oils and other single homogeneous liquids that can be transmitted to ultrasonic waves.

Ultrasonic flowmeter consists of host and sensor.

Parameters

Category	Performance parameters
HOST	Working principle	Ultrasonic time difference principle
	Accuracy	Better than 1%
	Display	Can be connected to 2x10 backlit Chinese characters or 2x20 characters Western-style LCD monitors, which can support Chinese, English and Italian languages.
	Signal output	1 channel 4-20Ma current output, impedance 0-1K, accuracy 0.1% (optional)
		1 channel OCT pulse output (pulse width 6-1000ms, default 200ms)
		1 relay output
	Signal input	3 line 4-20Ma current input, accuracy 0.1%, can collect temperature, pressure, liquid level and other signals
		Can be connected to a three-wire PT100 platinum resistor for thermal measurement
	Data Interface	Isolating the RS485 serial interface, the flowmeter can be upgraded through a PC computer, and supports protocols such as MODUBUS.
	Data Record	Thermal printer, external SD card, capacity up to 2G
Pipe Condition	Pipe Material	Steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, etc. All dense pipes, allowing lining
	Pipe inner diameter	15-6000mm
	Straight pipe	The sensor installation point is best to meet: upstream 10D, downstream 5D, from the pump outlet 30D (D is the pipe diameter)
Measuring medium	Species	Water, sea water, industrial sewage, acid and alkali, alcohol, beer, various oils, etc.
	Turbidity	10000ppm and Less air bubbles
	Flow Rate	0-±10m/s
	Temperature	-30---+160℃
Working Temperature	Humidity	Host:-20--+60℃,Sensor:-30---+160℃
	Humidity	Host:85%RH,sensor protection level :IP67
Power supply	DC8-36V,or AC10-30V,AC85-264V
Power consumption	1.5W

Sensor selection

More Details

LCD DISPLAY

High-definition LCD backlight display meter reading is convenient for straight pipe, including instantaneous flow, cumulative flow and so on.

SMT automatic patch

SMT automatic SMD circuit guarantees high quality product performance and extremely low maintenance rate

ABS waterproof interface

Waterproof ABS electrical interface will not aging cracking, high waterproof and dustproof performance

Waterproof housing

The housing is made of IP67 waterproof grade housing, anti-corrosion and moisture proof, outdoor installation, long-term stability

Application

Ultrasonic flowmeters use the principle of ultrasonic time difference to measure water, seawater, sewage, alcohol, beer, various oils and other single homogeneous liquids that can conduct ultrasonic waves.

Click Here For More Information

Packing & Delivery

Packing:The ultrasonic flowmeter packed by cartoon ,then put into wooden box,then delieveried by air or sea.
Logistics:Usually delieveried by TNT,UPS,SF,Fed,DHL,EMS.
Payment:L/C,D/A,D/P,T/T,Western Union,MoneyGram, payments for offline orders.
Production time:After customers deposite arrived our bank,then arrange produce as soon as possible.

Our company

Henan Junyuan Automation is a high-tech enterprise specializing in the research, development and production of flow meters such as ultrasonic flowmeter and electromagnetic flowmeters ects.
The company has advanced production technology and perfect after-sales service system. The main products are: electromagnetic flowmeter, vortex flowmeter, turbine flowmeter, ultrasonic flowmeter, throttling device, rotameter, complete set of automatic instrumentation, widely used in metallurgy, water supply and drainage, electric power, mining, petroleum, chemical, papermaking , medicine, light industry, environmental protection and other industries.
Our philosophy: the pursuit of excellence, professionalism.
Our aim: to survive by quality, to win the word of mouth by service

Our Team

Our Office

Our Certifications

FAQ

1.Q: you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.

2.Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you .

3.Q: What is the warranty for your product ?
A: Warranty: 2 years

4.Q:How to intallation flowmeter ?

A:We can provide manual of flowmeter ,kindly contacts us freely.

5..Q:Could I visit your factory?

A:Of course,if you need we will help you to visit our factory.

6..Q:If I have paid,when will you help me to produce?

A:When we have received the money in our account,we will give you the receipt and arrange to produce
immediately.
