coating machine BYC 400 tablet coating machine

Supplier: Jinhu Minsheng Pharmaceutical Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr mike shen
Price: $880.00 /set
Min. Order: 1 set

Click here to contact

Product details

Marketing Type:	Hot Product 2019;	Dimension(LWH):	700660970mm;
Payment Terms:	T/T,MoneyGram;	Warranty:	1 Year;
Machinery Test Report:	Provided;	Max. Load Capacity (kg):	5;
Local Service Location:	Germany;	Condition:	New;
Voltage:	220V 380V;	Coating Drum Diameter (mm):	400;
Weight:	90KG;	Core Components:	Motor;
Usage:	Pharmaceutical;	After-sales Service Provided:	Engineers available to service machinery overseas;
Applicable Industries:	Food & Beverage Factory,Pharmaceutical;	Warranty of core components:	1 Year;
Packaging Detail:	Export carton packing;	Weight (KG):	120;
Certification:	CE ISO;	Power (kW):	0.55;
Place of Origin:	Shanghai China;	Power(W):	0.55KW;
Video outgoing-inspection:	Provided;	Coating Type:	Cooling;
Port:	shanghai;	Brand Name:	MINSHENG;
Coating Temperature (℃):	0 - -80 ℃;	Key Selling Points:	Easy to Operate;
Showroom Location:	Germany;	After Warranty Service:	Video technical support;
Supply Ability:	35 Set/Sets per Month;

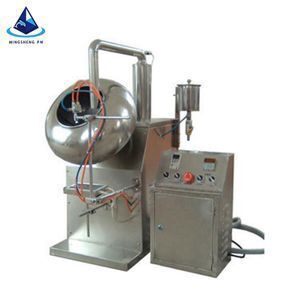

BYC-400 Tablet Coating Machine

Product Description

Descriptions

This machine is used to carry out sugarcoating and film coating to the core of Chinese Traditional and western tablets; it integrates strong power, weak power and hydraulic pressure with pneumatic operation. Mainly by the host (original sugarcoating machine), controllable temperature hot air system, automatic for the liquid, gas spray systems, exhaust and other components. The main motor has function of frequency speed control, it sprays the coating purposed auxiliary materials to the tablet surface with high atomized spray gun automatically, meanwhile, the tablets make continuous and complex track movement in the coating pan, let the coating fluid cover the tablet core evenly. And the controllable normal-temperature hot air in the pan will dry the tablets at the same time, let the tablet form a firm, fine, complete and smooth surface film rapidly.

The machine is simple, easy to operate, one-sided smooth, bright, delicate, saving accessories, maintenance, the advantages of simplicity, is the ideal choice for experimental equipment.

Technical Parameters

Parameter of Coating Machine
Model	BYC-400	BYC-800	BYC-1000	BYC-1250
Production Capacity	2-5kg/time	30~50/time	50~70kg/time	80~150/time
Inclination of Pan	15°-45°	15°-45°	15°-45°	15°-45°
Motor Power	0.55kw	1.1	1.5kw	2.2
Power of Blower Fan	40w	200	200w	370
Rotary Speed	46r/min	0-32r/min	0-32r/min	0-28r/min
Electric Thermal Power	4KW	3KW	4KW	6KW
Weight	120KG	280KG	300KG	500KG
Outline dim.	700×660×970mm	1000×1000×1550mm	1300×1000×1680mm	1350×1350×1600mm

Product Pictures

Packaging & Shipping

Packaging:Wooden Case+Film

Our Services

1.One year guarantee for whole machine

2.24 hours technical support

3.Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer’s account.

4.After a year,we can instruct you how to maintain the machine, and spare parts are provided with the best price.

5. we also can provide training service which help opeators handle the machine well.

Company Information

Our Company:

Minsheng Pharmaceutical Machinery Co., Limited. Is the professional manufacturer Specially engages in various pharmaceutical machinery. our factory developed about forty types of machine in over ten varieties including Tablet Press, Pulverize ,Packing Machine, Dryer, Mixer, Coater, Granulator, Labeling Machine, Filling Machine and etc.
All tasks from casting to metal machining, and general assembly are accomplished by itself. This company has been a leader in this particular sector of the pharmaceutical industry.Our products cover twenty-nine provinces of China with thousands of customers and have good reputation in the market. We have the best staff team ,the best and the quick responsive sales & service. We have entered into business relationship with many countries, such as America, Australia, Canada, Russia, Bulgaria, Indonesia , Israel , Pakistan and Vietnam and etc with good effect .We are confident that we can make good development in the future and we can contribute more for the people.
We have professional export office and professional engineer team. They will serve in the whole business. Same time after sales serve team can serve it if customer need on place. The world must become more better through our work hard together.
Most of machines are produced in our own factory ,thus we can offer you the best price and best technical service at the same time . we committed to providing high quality merchandise with good price.

Production workshop

FAQ

1. What about your baling machine quality?
Our factory has more than 10 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported into many countries and areas; already got customer’s good reputation.
2. What about your baling machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.

4. To know more information about our company
