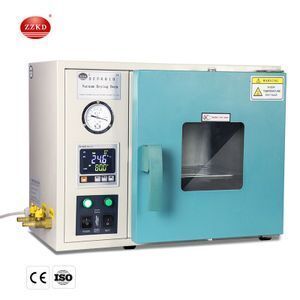

DZF-6010(8L) Drying Small Vacuum Oven

Product details
Time Range:1-9999;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal, Secure Payment, Credit Card;
Voltage:220/110V;Type:Vacuum Drying Equipment;
Warranty:1 Year;Certification:CE ISO;
Shelf (pcs):1;Condition:New;
Drying Capacity (kg):8kg;Packaging Detail:Wooden case or as customer's requirements. (DZF-6010(8L) Drying Small Vacuum Oven);
Weight (KG):45KG;Marketing Type:Ordinary Product;
Overall Dimension(W*D*H,mm):600*400*430;Package Preview:;
Input power:40w;Power:400;
Shell Material:Anti-corrosion;Local Service Location:India;
Inner Dimension(W*D*H,mm):200*200*200;Core Components:Gear,Motor,PLC,Engine;
After-sales Service Provided:Overseas third-party support available,Online support,Video technical support;Machinery Test Report:Provided;
Port:Tianjin, Qingdao, Dalian, Shanghai, Guangzhou, Shenzhen Port;Liner Material:304 Stainless steel;
After Warranty Service:Video technical support,Online support;Place of Origin:Henan China;
Key Selling Points:Multifunctional;Brand Name:KD;
Application:Medicine Processing,Chemicals Processing,Food Processing;Supply Ability:500 Set/Sets per Month;
Showroom Location:India;Video outgoing-inspection:Provided;
Warranty of core components:1 Year;Applicable Industries:Manufacturing Plant,Farms;
Working Temp.:+5-40;Capacity:8L;
Dimension(L*W*H):700*500*650mm;

DZF-6010(8L) Drying Small Vacuum Oven



Product Introduction





Application :


The vacuum drying oven is designed for heat sensitive, labile and readily oxidizable materials to do drying test, baking test, heat treatment test, disinfecting test, etc. It can be filed with inert gas and dry some ingredient complex materials quickly. Normally the oven is widely used in the fields of Electrics, Electronics, Instruments, Materials, Education, Medicine, chemical industry or other Scientific Research Organizations and Production Units.







Features:


1. The vacuum tube around makes room temperature more uniform, avoiding organic connecting with fires burring.
2. Set temp and control are all intelligent digital display, high accuracy.
3. The drying oven adopt jacketed vacuum glass door. On one hand, it keeps the temp in room; On the other hand you can see the dried instruments clearly.
4. The door that can be adjusted is overall the silicone rubber molding circle, can insure the vacuum degree.











Gentle drying of heat sensitive materials
Significantly reduced drying times
Elimination of oxidation associated with heat treatment
Safe drying of flammable solvents
Targeted recovery of degassed products











Ancillary Equipment
To get vacuum condition, vacuum pump is necessary.







Our products have CE Approvals:

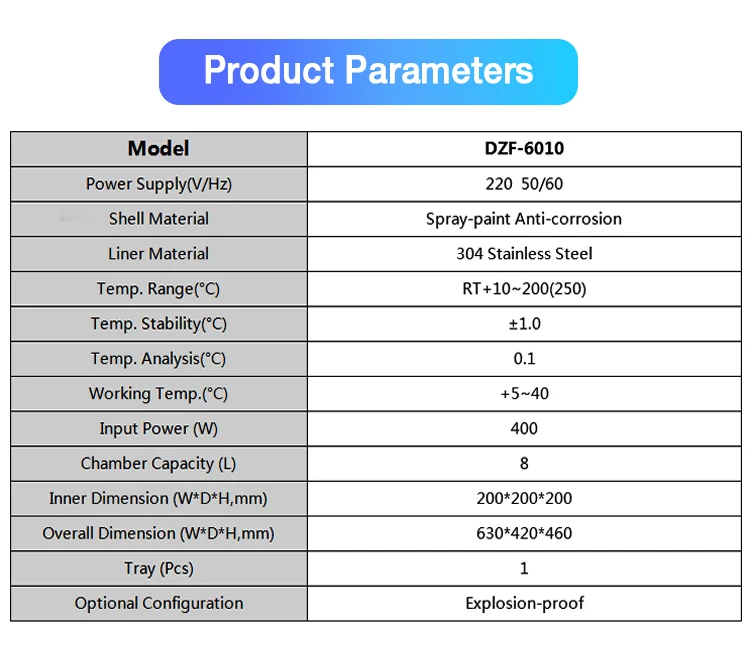

Other Types

Model

DZF-6010

DZF-6020

DZF-6050

DZF-6090

DZF-6210

Liner Material

304 Stainless Steel

Temp. Range

RT+10~200°C

Max. Vacuum Degree

0.098 Mpa

Temp. Stability

±1.0°C

Temp. Analysis

0.1°C

Working Temp.

+5~40°C

Input Power (W)

400

800

1400

2000

2400

Chamber Capacity (L)

8

25

55

90

215

Inner Dimension (W*D*H,mm)

200*200*200

300*280*300

410*400*340

450*450*450

560*600*640

Overall Dimension (W*D*H,mm)

600*400*430

620*500*480

720*570*540

770*620*710

730*730*1800



Ancillary Equipment:

Rotary Vane Vacuum Pump




Hot Goods Zone



+










Packaging & Shipping



Packaging:


-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.


Shipping:


-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.



Company Information



Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company. Company tenet: keeping reputation, valuing contracts, supplying lower prices and better quality equipments to serve the cause of China's scientific research.



The company always adheres to the "quality casting brand, professional achieves service" business philosophy, and the main products are rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven, freeze dryer, water/oil bath, magnetic heating stirrer, overhead mixer, ultrasonic cleaning machine, lift platform, etc.



Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high praise in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Egypt etc. countries and our customers have been fully affirmation.

Factory Size: 1,000-3,000 square meters
Year Established: 2009
Total Revenue : US$1 Million - US$2.5 Million
Registration No.: 410105000067362
Main Markets: Central America, Mid East, Oceania, Africa, South America





FAQ

1. How many shelves does your oven can hold?
Different models hold different number shelves like 1, 2, 3 shelves. That will be according to the models.


2. What is your max temperature?
Max 250 degree C, 200 degree C is normal.


3. What kind of size do you have?
We have 8L(0.28 cu ft), 25L(0.9 cu ft), 55L(1.9 cu ft), 91L(3.2 cu ft), 215L(9cu ft). They are normal and popular models. If you need bigger size we can supply it too.


4. Can you make 110V versions?
Yes, we can make it.


5. How is your oven heated?
There are many heating electric pipes surround the chamber inside, to keep the high temperature.


6. Could you make the temperature shows in Fahrenheit?
Yes, we can make it.
