KONGKA 25kw 30kva 400v 50hz 60hz gasoline LPG natural gas generator

Product details
Rated Current:36A/phase;Speed:3000/3600rmp;
Rated Voltage:110/220V 230/400V;Frequency:50/60HZ;
Bore*stroke (mm*mm):L4-70*79;Fuel:PET/LPG/NG;
Product name:KONGKA 25kw 30kva 400v 50hz 60hz gasoline LPG natural gas generator;Brand Name:KONGKA;
Type:silent;Port:chongqing/shanghai/guanzhou/shenzhen/qingdao;
Packaging Detail:wooden packing;Weight (kg):330KG;
Model Number:KK25REG;Size:1290*830*950mm;
Supply Ability:100 Set/Sets per Month;MAX power:26kw (LPG) / 24kw(NG);
Oil capacity (L):3.5;Engine Model:CHINA 470;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Rated power:25kw (LPG) / 23kw(NG);
Place of Origin:Chongqing China;



KONGKA 25kw 30kva 400v 50hz 60hz gasoline LPG natural gas generator

Product Description

 Product parameters

Genset Model  KK25REG
Outout Power
Rated power (PET) 26KW  /32.5KVA
Rated power (LPG) 25KW  /31.2KVA
Rated power (NG) 23KW  /28.7KVA
Rated voltage (V) 110/220V 230/400V
Rated Current(PET) 113A  / 37.6A(per phase)
Rated current (LPG) 108A  / 36A(per phase)
Rated current (NG) 100A  / 33.3A(per phase)
Phase number 1/3 phase
Rated speed (RPM) 3000/3600
power factor 1.0 /0.8
Frequency (Hz) 50/60
Engine
Engine model KK470Q1
Displacement (CC) 1216
Compression ratio 9.5:1
Electrical startup with
Fuel type PET/LPG/NG
Bore*stroke (mm*mm) L4-70*79
Oil capacity (L) 3.5
Charging mode 14V/350W switching power supply
Recommended battery cold start current (CCA) 550A
Cooling system Liquid cooling
High temperature shutdown with
Low oil pressure shutdown with
AC Alternator
Voltage regulation system AVR automatic voltage regulation
Excitation type Brush
The number of poles 2
Total harmonic distortion @ full load ≤ 5%
Insulation level F
Motor bearing 6206

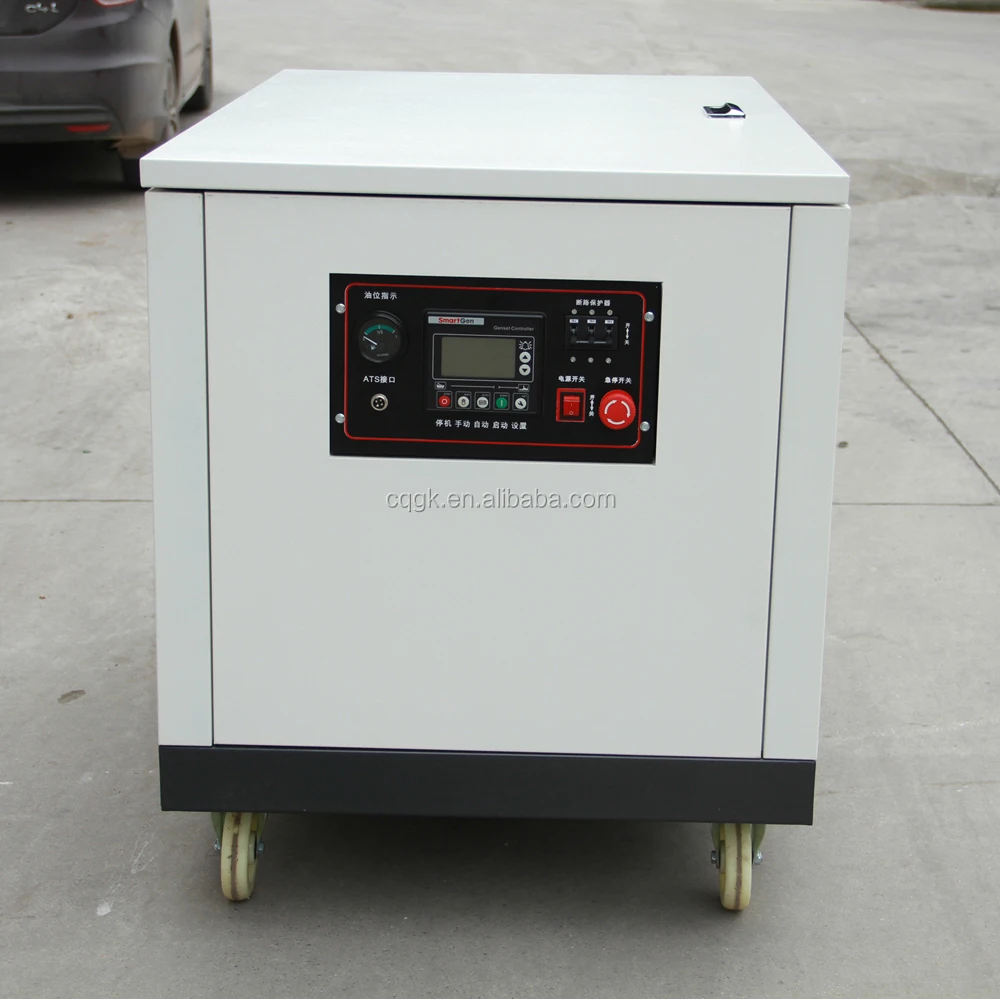

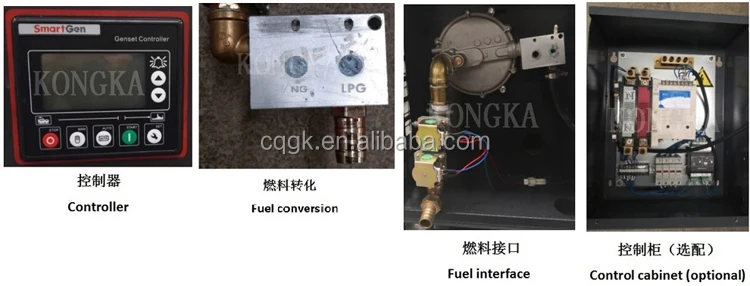

Control Pannel
Controller mounting position Inside the chassis, above the motor
Automatic / manual / closed with
Generator voltage detection with
Mains voltage detection with
Low oil pressure shutdown with
Low frequency protection with
Over frequency protection with
Genset
Protection level IP 23
Emergency stop switch with
Fuel solenoid valve Double solenoid valve
Closed silencer with
Grounding system Frame ground
Soundproof device type Metal plate + sound proof cotton
The generator  set is at low speed, (dBA/7m) 64
The generator  set is running at full speed, (dBA/7m) 70
PET consumption 50% load   gal/hr(L/hr) 1.56(5.9)
PET consumption 100% load   gal/hr(L/hr) 2.48(9.4)
NG consumption 50%, load  ft3/hr (m3/hr) 229.5(6.5)
NG consumption 100%, load  ft3/hr (m3/hr) 265.6(7.52)
LPG consumption 50%, load  ft3/hr (kg/hr) 109.5(3.1)
LPG consumption 100%, load  ft3/hr (kg/hr) 141.3(4.0)
NG inlet pressure range kPa (in.H2O) 1.3-3.5(5-14)
LPG inlet pressure range kPa (in.H2O) 1.7-3.5(7-14)
Unit size (L* w * h) (mm) 1290*830*950
Packing size (L* w * h) (mm) 1350*880*110
Net weight (kg) 330
Gross weight (kg) 360
Loading capacity of 20/40 foot cabinet 20/40



                                  Important notes on ordering products

  1.  All our products only support shipping to the port,or shipping to the door,or land transport,and do not support air transportation.
  2.  The price indicated by this product is FOB China Port Price. If there are specific Chinese port (such as Shanghai, Ningbo, Shenzhen, Guangzhou, Qingdao, etc.), please leave a message.
If you need to deliver to a designated port or warehouse or residence in your country, please leave a note so that our seller can quote you the shipping cost in time(please tell me your email).
  3.   Provide product details as much as possible, such as:
A, Voltage (110/220/230/380/400V)? frequency (50/60HZ)? Single phase or three phase?
B, Plug type (European, American...)?
C, Need wheels?
D. Use of the product?

  4.   Provide detailed consignee information: company name (required, except for customs clearance in the US), contact, phone, email, address

  5.   The product sample picture shows the goods, please refer to the actual receipt of the goods.

Packaging & Shipping

1  Wooden packing

2  Sea LCL or Sea FCL or Land Transport.The port of departure can choose ports such as

    Chongqing, Shanghai, Guangzhou,Shenzhen or Qingdao...

Certifications



Company Information
Good quality and low price is the ultimate goal pursued by our company.

FAQ

1 Q: How long is the warranty?

   A: 1000 hours or 12 months warranty, lifetime maintenance.

2 Q:How long is the delivery?
   A: Our warehouse is in stock and can be delivered quickly to the customer's designated destination port.

3 Q: Which ports can be shipped?

   A: Shanghai, Ningbo, Guangzhou, Shenzhen, Qingdao, Tianjin, Chongqing, etc.

4 Q: What are the transportation methods?

   A: Sea LCL, Sea FCL, Land transport, Does not support Air transport.

5 Q: Can you customize?

   A: Yes

6 Q: New customer payment method?

   A: 30% T/T in advance + 70% balance before shipment.
