IP streaming SD card recording RTMP mobile drone dv video encoder
- 740.00 piece
| Place of Origin: | Beijing China; | Port: | Beijing; |
| Delivery Detail: | 3days after receiving payment; | Packaging Detail: | Carton box; |
| Output: | RTMP; | Feature: | ethernet,4g,wifi streaming; |
| Brand Name: | TCHD; | Supply Ability: | 300 Piece/Pieces per Month; |
| Input: | HD MI; | Model Number: | 70H; |
| Audio: | 3.5mm audio; | Application: | Live streaming, webcasting, distance education and training; |
| Payment Terms: | T/T,Paypal; | Resolution: | 1080P; |
IP streaming SD card recording RTMP mobile drone dv video encoder

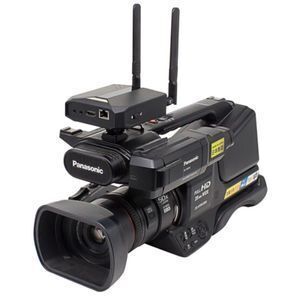

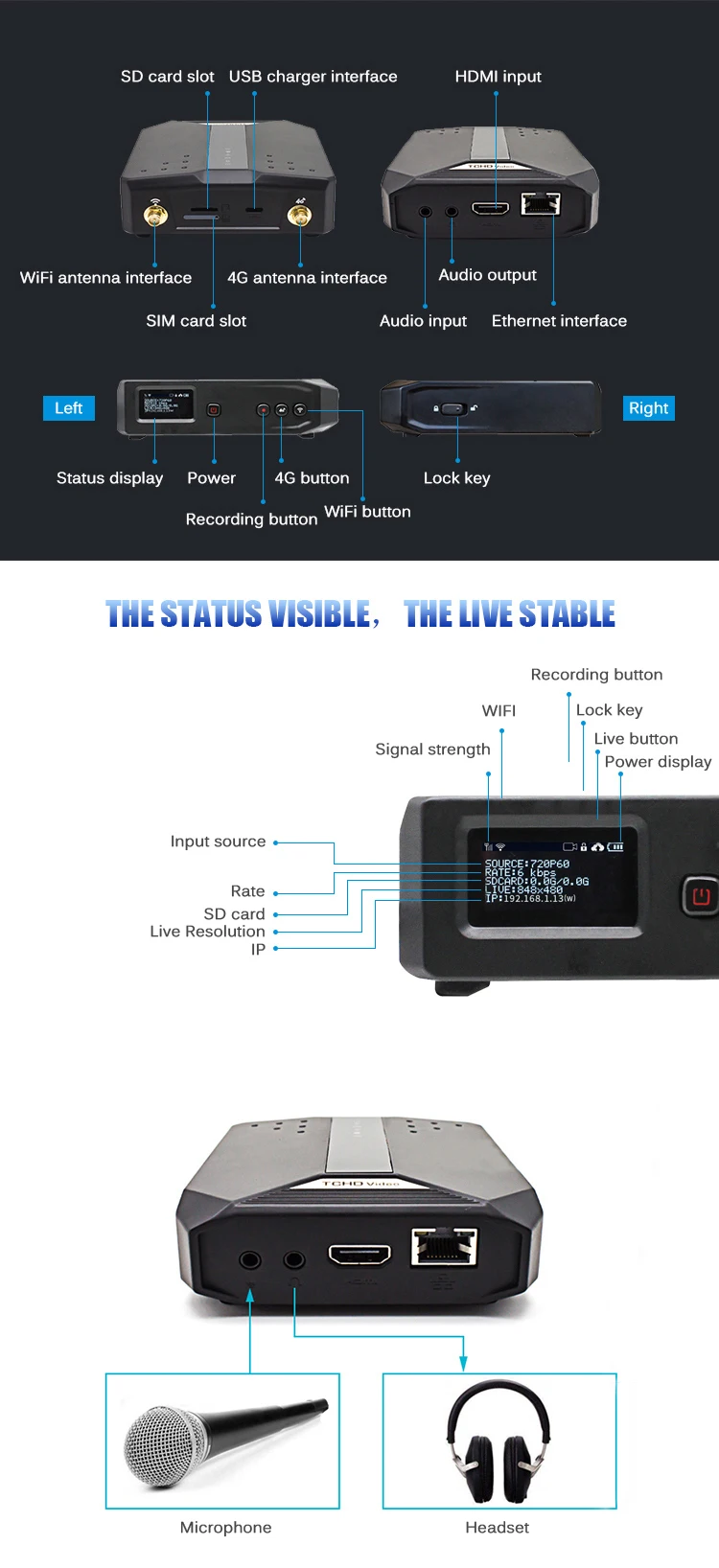

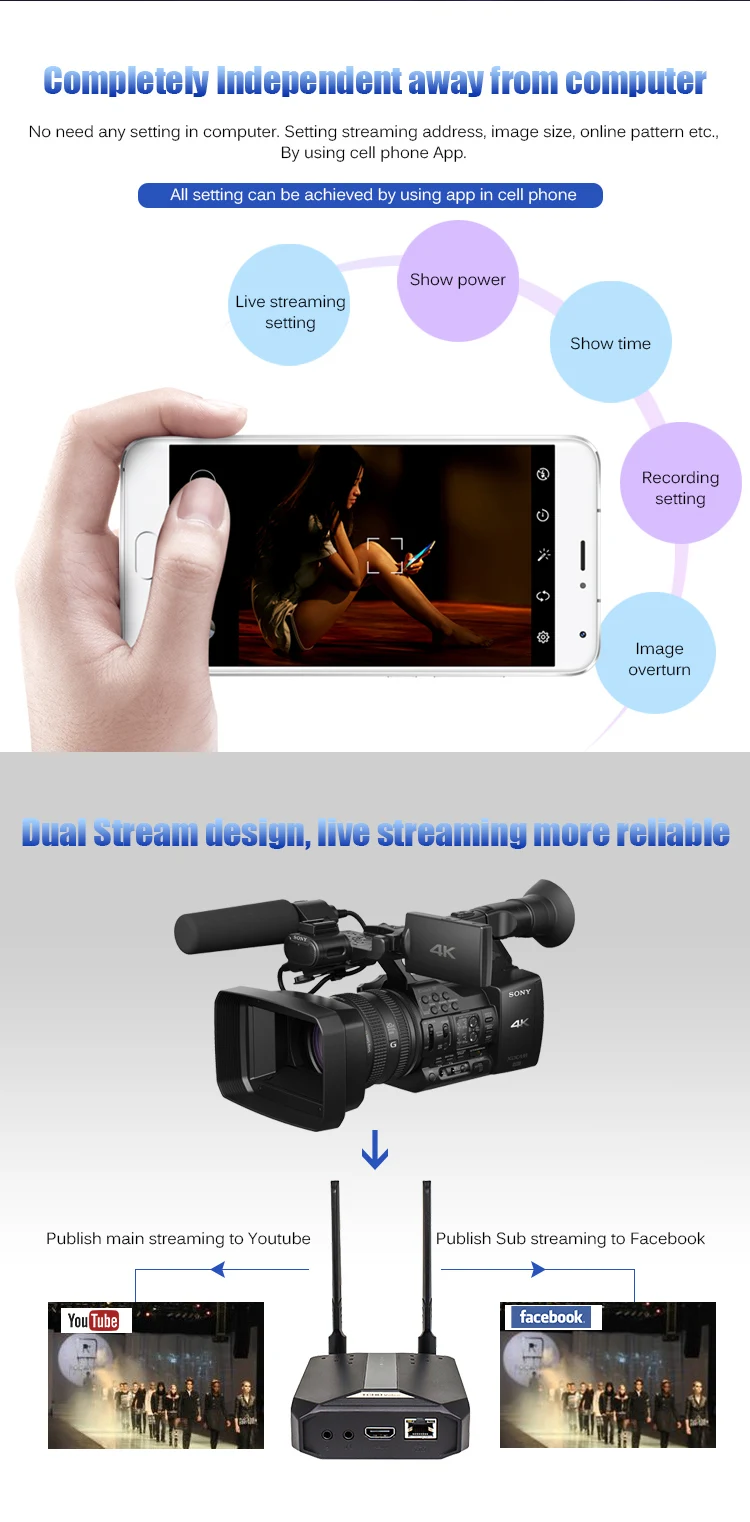

TC-70H HD encoder is our newest professional HD audio & video encoding device with powerful functionality. It support H.264/H.265 encoding,dual-Streaming data.It is equipped with 1 channel HDMI input .Its high integration and cost-effective design make this device widely used in variety of digital distribution systems. Support Ethernet/4G/WIFI to RTMP streaming.
Product parameters | |
Name | HDMI 4G video encoder |
Series | 70H |
Video format | MP4 |
Compression format | H.264/H.265 |
Audio compression | AAC(48K) |
Video input format | 720p: 25/30/50/60/120 fps |
1080i:50/60 fps | |
1080p:25/30/50/60 fps | |
Output resolution | 1920*1080/1280*720/848*480 |
960*540/640*360/480*270 | |
Video resolution | Maximum support for 1080p60 |
Memory card type | TF card |
Memory card capacity | Maximum support 128G |
WiFi | 2.4G |
4G network | All Netcom |
SIM card type | Nano SIM Card |
Network feature | 1xRJ45 for 10/100Mbps Ethernet |
Power Interface | DC5V, 2000MA [Micro USB interface] |
Power frequency | 50HZ/60HZ |
Battery capacity | 3.7V / 4000mAH |
Maximum power consumption | 4W |
Weight | 260g |

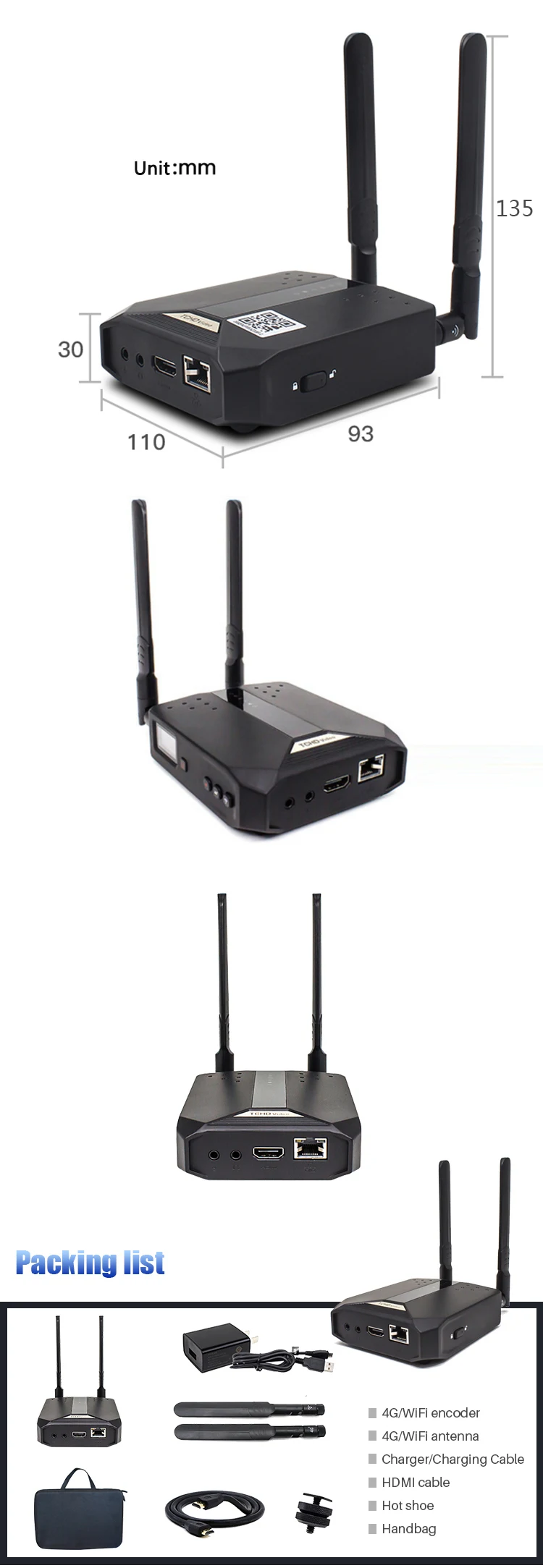

Dimensions (mm) | 110*93*30 |
Language | Simplified Chinese/English |
Operating system | Android 4.1+ & IOS 7+ |

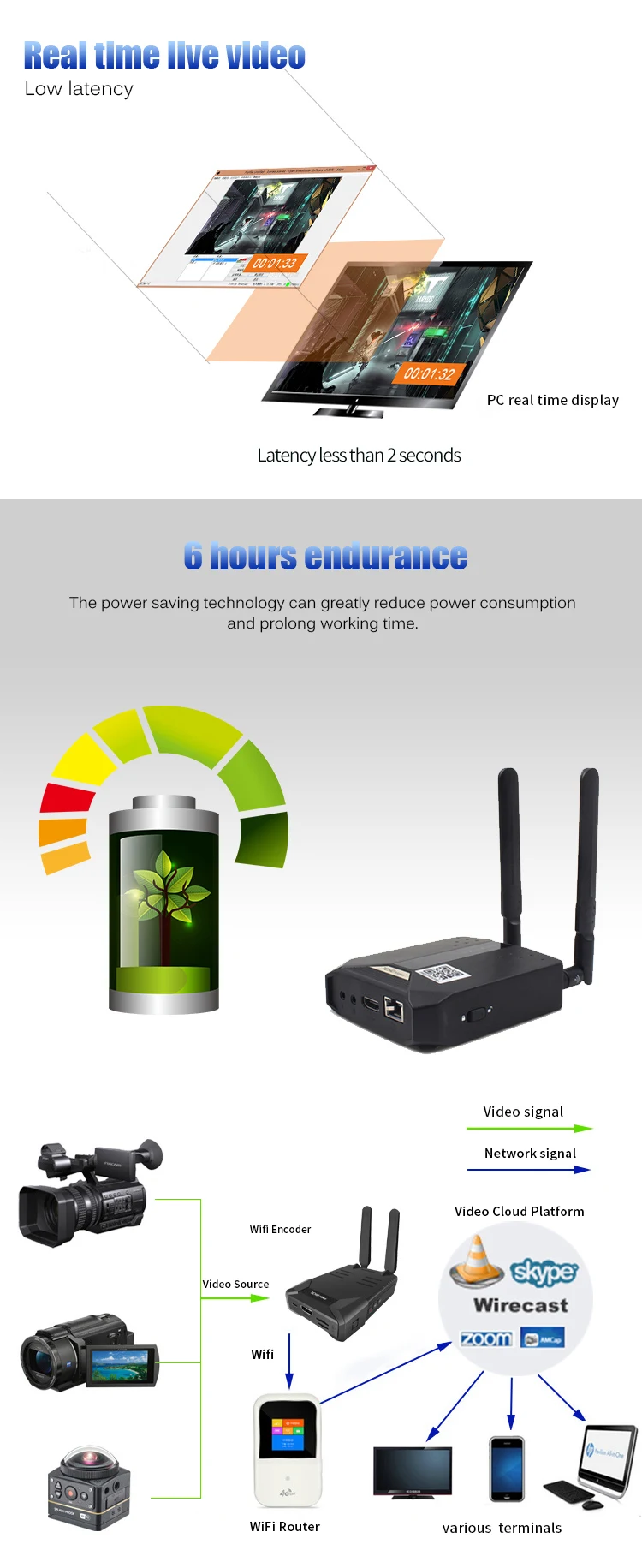

Network protocol | HLS/RTMP/P2P |
Working temperature | 0℃~45℃ |
Working humidity | 15%~85% |
Storage Temperature | 5℃~40℃ |
Support band | FDD LTE: Band 1,Band 3,Band 8,all bands with diversity TDD LTE: Band39,Band40,Band41(38),all bands with diversity |
