DUOSIDA 32A type 1 charger 220V with Blue plug ,single phase ,5M Products from Zhangjiagang Uchen New Energy Technology Co., Ltd.

Product Details

Waterproof:	IP55;	Current:	32A;
Single gross weight:	12.5 KG;	name:	DUOSIDA 32A type 1 charger 220V with Blue plug ,single phase ,5M;
Key words:	32A type 1 charger with Blue plug;	Brand Name:	Duosida;
Packaging Detail:	standard or customized;	Package Preview:	;
32A j1772 type 1 charger:	32amp mode 2 type 1 portable charger;	Model Number:	3030-PSE-32-XC-ES;
Warranty:	1 Years;	Rated current:	220V;
Insulation resistance:	> 1000 MΩ;	Single package size:	38X36X25 cm;
Selling Units:	Single item;	Place of Origin:	China;
32amp 220V single Charger with Blue plug:	32A portable charger;

Product Description

Name:Duosda 32amp EV Charging Cables Type 1 Charger with Schuko j1772 mobile cable

This 5 meter mobile charger can be used to charge your Tesla from a blue 32A single phase CEE socket. The charger is rated at 32A max. Your electric vehicle will charge at 7.4 kW

Please make sure you charge from a correctly installed blue CEE socket as depicted on the left, that is able to deliver 32A, installed with minimum 6mm² wires and is electrically protected with an RCBO.
The charger features:
1.Earth leakage protection
2.Over current protection
3.Over voltage protection
4.Low voltage protection
5.Short circuit protection
6.Overheat protection

More Description

Model :	3030-PSE-32-XC-ES
Charging plug:	J1772 female plug
Power plug:	CEE 3-pin industrial plug
Length:	5Meter or Customized
Ampere:	Ajustable from:10A-13A-16A-20A-24A-32A,Customized
Weight:	3.5KGS Packed by ev bag,3PCS/Carton

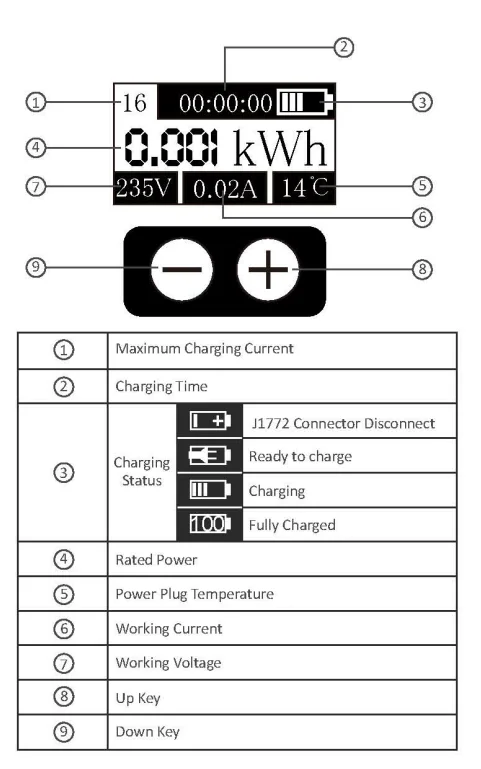

Function Description

EV Box Screen Key

1.Maximun Charging Current.
2.Charging time.
3.Charging Status.
4.Rated Power.
5.Power plug Temerature .
6.Working Current .
7.Working Voltage .
8.Ajustable Ampere key:UP key.
9.Ajustable Ampere key:Down key.

Detailed Image

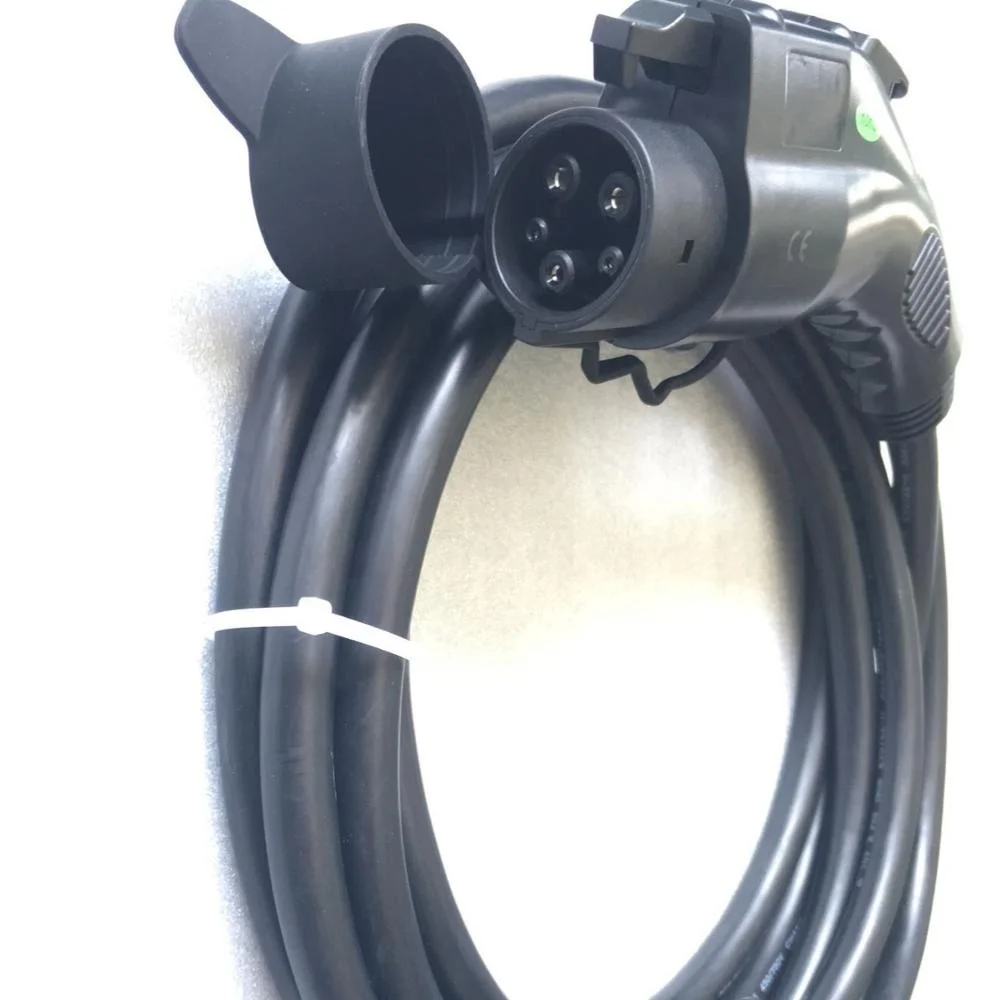

J1772 Charging plug

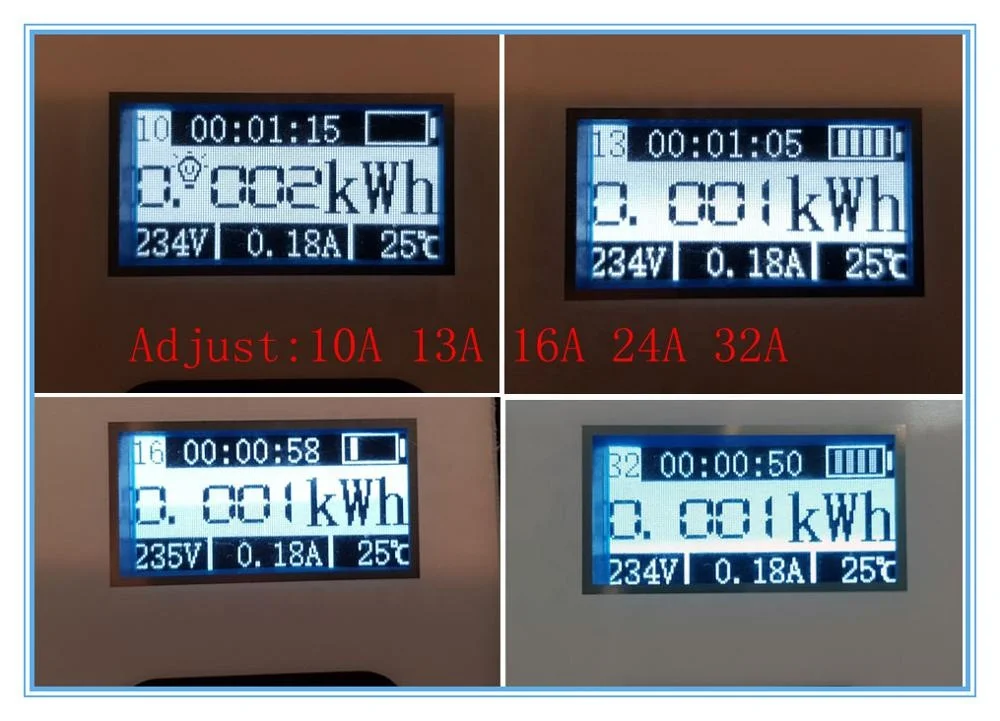

Adjust:10A-13A-16A-24A-32A

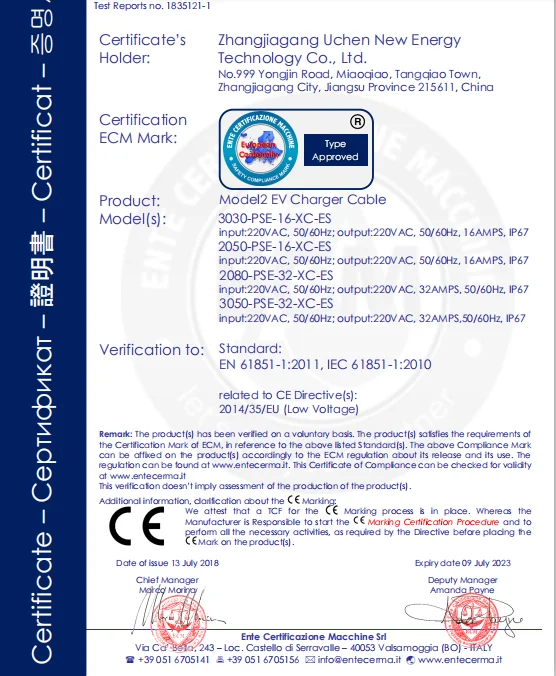

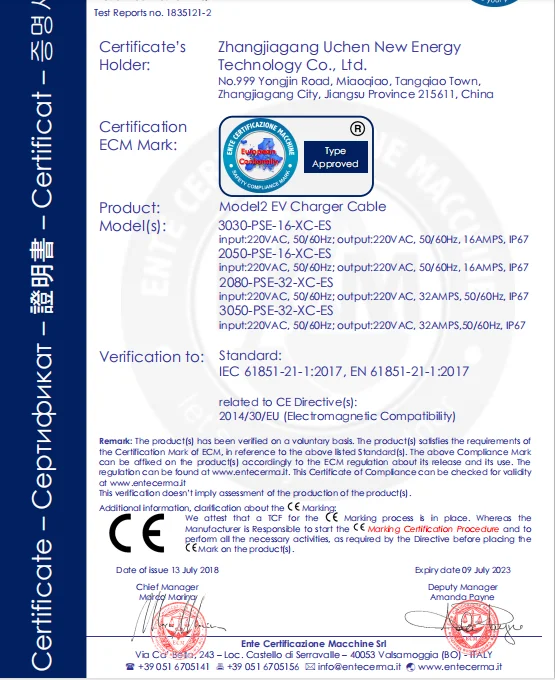

Certifications

IEC62851-1:2010

IEC62851-21-1:2017

Uchen have GB/T20234, IEC62196, SAE J1772 standards subordinate all kinds of charging interface and mode, is the first enterprise which research and develop, do mass production of the electric vehicle charging interface

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
