Lab Vacuum Spray Drying

Supplier: Zhengzhou Keda Machinery And Instrument Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Alice Lee
Price: $3250.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Manufacturing Plant;	Nozzle Diamater:	0.5/0.7/0.75/1.0/1.5/2.0mm Optional,Can Be Customi;
Minimum Feeding Quantity:	49ml;	Temperature Control Accuracy:	±1℃;
Air Inlet Temperature Control(℃):	30~299;	Application:	spray dryer;
Evaporated Water Amount:	1500ml/H~2000ml/H;	Warranty of core components:	1 Year;
Supply Ability:	500 Set/Sets per Year;	Showroom Location:	United States,India;
Air Outlet Temperature Control(℃):	30-140;	Type:	Spray Drying Equipment;
Local Service Location:	United States,India;	Warranty:	1 Year;
Machinery Test Report:	Provided;	Power:	3KW;
Transport Package:	Packed in Wooden Cases;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Key Selling Points:	High Safety Level;	After-sales Service Provided:	Online support;
Certification:	CE ISO9001;	Product name:	Lab Vacuum Spray Drying;
Video outgoing-inspection:	Provided;	Port:	Shanghai/Shenzhen/Qingdao;
Condition:	New;	Marketing Type:	Ordinary Product;
After Warranty Service:	Online support,Spare parts;	Voltage:	220V;
Packaging Detail:	Lab Vacuum Spray Drying Wooden boxes or as your required;	Core Components:	PLC;
Brand Name:	ZZKD;	Maximum Feed:	Maximum Feed;
Place of Origin:	Henan China;	Dimension(LWH):	65cm50cm129cm;

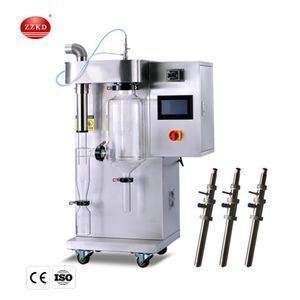

Lab Vacuum Spray Drying

APPLICATION:
Various fields where the production of a free powder sample is required.
KDSD has successfully processed samples in the following areas: Beverage, Flavours and colourings, Milk and egg products, Plant and vegetable extracts, Pharmaceuticals, Synthetics Heat sensitive materials, Plastics polymers and resins, Perfumes, Blood, Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents, Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth and tooth amalgam and many others.

1,Special for lab research, Min 20-30ml liquid to finish one test
2,All borosilicate glass for easy visual monitoring of process status.
3,Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment.
4,Easy to clean and very simple to assemble and break down.
5,The air compressor is no oil and don't pollute compress air. The sound is low than 50db and following the GMP understands.
6,inlet/outlet temperature is accurate controlled by PID
7,The unit is self contained and supplied complete and ready for immediate operation.
8,Using screen touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency.
9,Product feeding with RS2559605 rotary pump, capacity is adjustable
10,Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.
