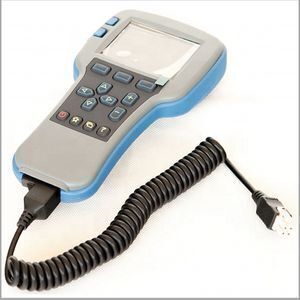

Curtis 1313-4331 programmer for club car and EZGO golf carts

• OEM level programmer: full programming function
• Operating ambient temp. range: -20°C to 50°C (-4°F to 122°F)
• Storage ambient temp. range: -40°C to 85°C (-40°F to 185°F)
• Package environmental rating: IP53 (with programmer cable plugged in and SD-card cover closed)
• Dimensions (L×W×H): 190 × 100 × 36 mm (7.5" × 3.9" × 1.4")
• Weight: 0.27 kg (0.6 lb)
• Regulatory compliance: CE/RoHS

1313-4431 is the OEM level CURTIS handheld programmer (upgraded version of CURTIS 1307, 1311-4401 and 1313-4401 programmers), having full access to all parameters of CURTIS PMC controllers. For more details, please read carefully the New 1313 Handheld Programmer Manual (PDF format) and New 1313 Handheld Programmer Datasheet (PDF format).

Overview

The new Curtis 1313 handheld programmer is a powerful and intuitive programming and diagnostic tool. Model 1313 enables parameter files to be created and edited online or offline, transferred to another controller for cloning, or saved onto a PC or SD card.

The Model 1313 performs comprehensive programming and troubleshooting tasks for all vehicles that use Curtis programmable motor controllers or control systems.

There are four access levels:

• 1313-4431 OEM programmer
• 1313-3231 Dealer programmer
• 1313-2131 Service programmer
• 1313-1131 User programmer

The CURTIS 1313 handheld programmer supports multiple languages: English, Deutsch, Français, Italiano, or Español.

KEY FEATURES

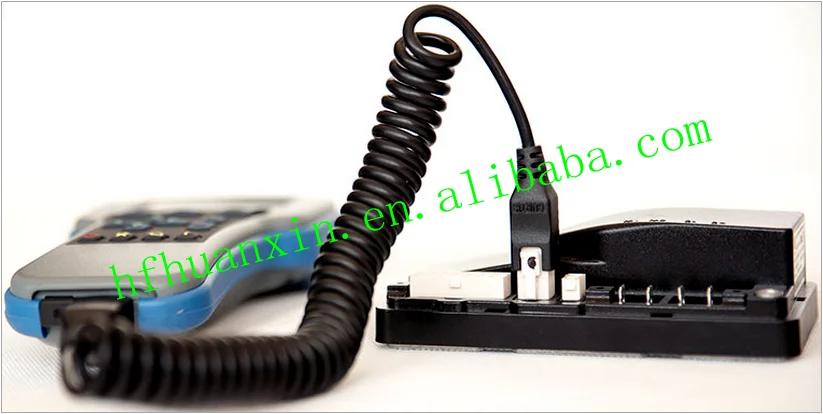

• Direct access to applicable Curtis motor speed controllers via CANopen network.
• Fully compatible with Curtis next gen F series and all existing 1313 programmable motor speed controllers.
• Large high resolution color display shows multiple parameters simultaneously for quick adjustment.
• Backlight for easy viewing in low-light environments.
• Cloning feature and 64 Mb internal memory allows multiple parameter files to be stored in the Handheld Programmer, making it easy to transfer settings to other vehicles.
• Advanced troubleshooting capabilities for all vehicles that use Curtis programmable motor controllers or control systems.
• AA Battery compartment allows programs to be edited without having to be connected to a system.
• Multiple language support includes English, German, Spanish, French, and Italian.
• Monitoring function allows real-time viewing of controller activity.
• Icon based graphical user interface allows for quick and intuitive menu navigation.
• Dedicated buttons for “help” and “favorites” provide for direct access to commonly used features.
• Comprehensive help text offers solutions and information at the touch of a button.
• Easily upgradeable via USB to ensure compatibility with future products and features.
• The Model 1313 programmer is easily portable, with a tough rubber protective perimeter strip.
• Programming kit comes complete with handheld programmer, Molex cable, zippered case, CANopen network DB-9 cable (where applicable), quick start guide.
