Europe standard vacuum slab lifter for sale

Product details
Showroom Location:United States,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Spain,UAE,Algeria,Romania,South Africa;Machinery Test Report:Provided;
Condition:New;Package Preview:;
Supply Ability:50000 Set/Sets per Year;Certification:CE;
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;Brand Name:PLK LIFT;
Dimension(L*W*H):2.2*1.8*1.1;Warranty of core components:1 Year;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Color:Yellow;
Video outgoing-inspection:Provided;Marketing Type:Hot Product 2019;
After Warranty Service:Video technical support,Online support,Spare parts;Port:Qingdao;
Warranty:1 Year;Local Service Location:Egypt,France,Philippines,India,Russia,Spain,Malaysia,Kenya,Algeria,Romania,Bangladesh,Ukraine,Uzbekistan;
Core Components:Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;After-sales Service Provided:Free spare parts;
Place of Origin:Shandong China;Packaging Detail:Timber Box;

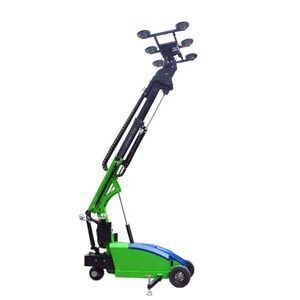

Hydraulic Pneumatic Glass Lift 350kg Vacuum Lift



GL-LD series Vacuum Lifter: small size, easy to transport.

Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with vacuum suction caps.



1. Lifting capacity 350kg/600kg (175kg/300kg when lifting arm is fully extended)

2. Manual 360degree rotation

3. Electric lift up to 3.5M

4. Weight of machine 660kg/1000kg

Model Type

GL-LD-350

GL-LD-600

Loading Capacity

350kg (retract)/175kg(extend)

600kg (retract)/300kg(extend)

Lifting Height

3500mm

3500mm

Battery

2x12V/100AH

2x12V/120A

Controller

VST224-15

CP2207A-5102

Drive motor

24V/600W

24V/900W

Hydraulic power

24V/2000W/5L

24V/2000W/5L

Cap Diameter

Ø250mm/300mm

Ø250mm/300mm

Advantages

1. Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button.

2. DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction.

3. Attractive price, staff saving, strong improvement of working environment.

4. Sagafirst vacuum lifter are dealt with shot blasting and stoving varnish, high anti-corrosion function.
5. High quality pump station make the vacuum lifter lifts and falls very stably.
6. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
7. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
8. Brief structure make it much easier to operate and maintain.
9. Up to American standard ANSI/ASME and Europe standard EN1570.
