SS self loading shipping container house dolly truck with wheels details
Wheel Diameter:As your request;Tow Bar:with tow bar;
Max wheel Speed:10 km/h;Lifting height:380 mm;
Packaging Detail:Wooden Box/Steel Frame for ISO container wheels shipping container wheels shipping container caster;Guarantee period:one year;
Application:ISO Shipping container;Supply Ability:100 Piece/Pieces per Month shipping container wheels;
Color:white as standard;Tread Material:Rubber;
Port:Shanghai Port, Qingdao Port, Tianjing Port, Ningbo Port, Guangdong Port, Shenzhen Port;Core Material:Steel;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Load Capacity:10/15/25/30 ton as standard;

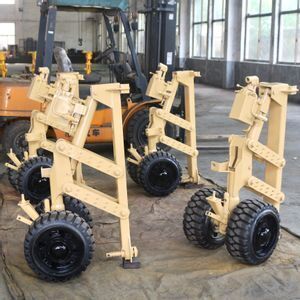

Product Show


10 15 25 30 ton ISO shipping container wheels shipping container dolly system


Product Description

10 15 25 30 ton ISO shipping container wheels shipping container dolly system


Once installed, the caster wheel provide an efficient way of mobilizing. The common uses are moving containers in and out of a facility for maintenance, alterations, upfits or for complexing and loading shelters. Towbars are also available and these fit the end hole of the corner fitting. The Container Casters are very rugged products, available in a wide range of capacities and wheel types for different surfaces.


If you don't see what you want, STARDRAWING's engineering team can custom design a caster for any application!

Main Features

1)Mobilize loaded or unloaded containers
2)Fits ISO Corner Fitting of Cargo Containers of various sizes
3)Load capacities range up to 110000 LBS
4)Variety of wheel selection depends on load capacity and application environment
5)Handle swing to lock into Corner fitting or back to unlock
6)Swivel lock and wheel brakes are available
7)Tow bar comes standard for transport by vehicle or by hand.
8) Double twin wheels or three wheels type is also available.
9) Wheel lift design can make attaching the wheel sets to container a one-man process

10)Heavy duty and durable wheel can travel through sand, gravel, mud and brush possible.

Applications

ISO shippng container or related equipments.

Model
ST-M6
ST-M10
ST-M15
ST-M24
ST-M30
Payload
(Ton)
6
10
15
24
30
Lift Height
(mm)
>350
>350
>350
>380
>380
Tow Point Height
(mm)
>100
>100
>100
>100
>100
Swivel Degree
(°)
±60 BY WHEEL
±60 BY WHEEL
±60 BY WHEEL
±60 BY WHEEL
±60 BY WHEEL
Tire
SOLID OR AIR-FILLED TIRE
About Stardrawing


Our experience and passionate research and developing team has the industrial design experience of more than 12 years on average. We work at the space framework composed by the line, arc, and dip angle with the care and precision of a sculptor.


We have our strong marketing team, who can not only meet the customization requirements of customers from different places in China, South Korea and Japan, but also concentrate on the market trend of the caster consuming market in America, Europe and many other countries, develop the individualized original product for the customer according to his or her preference and the trend, so that our customers can seize the first opportunity in market competition.

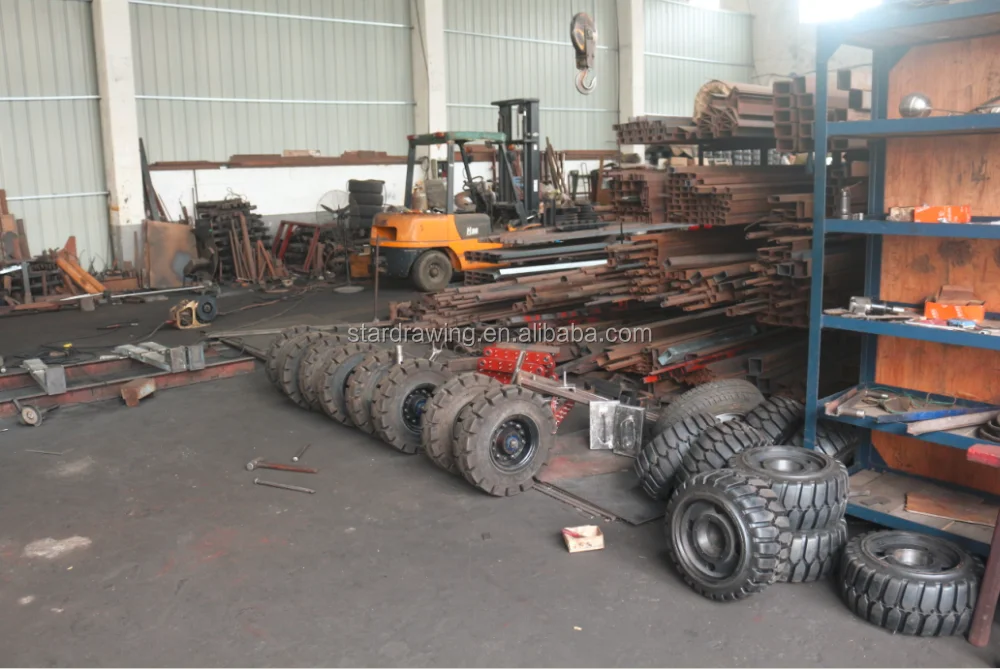

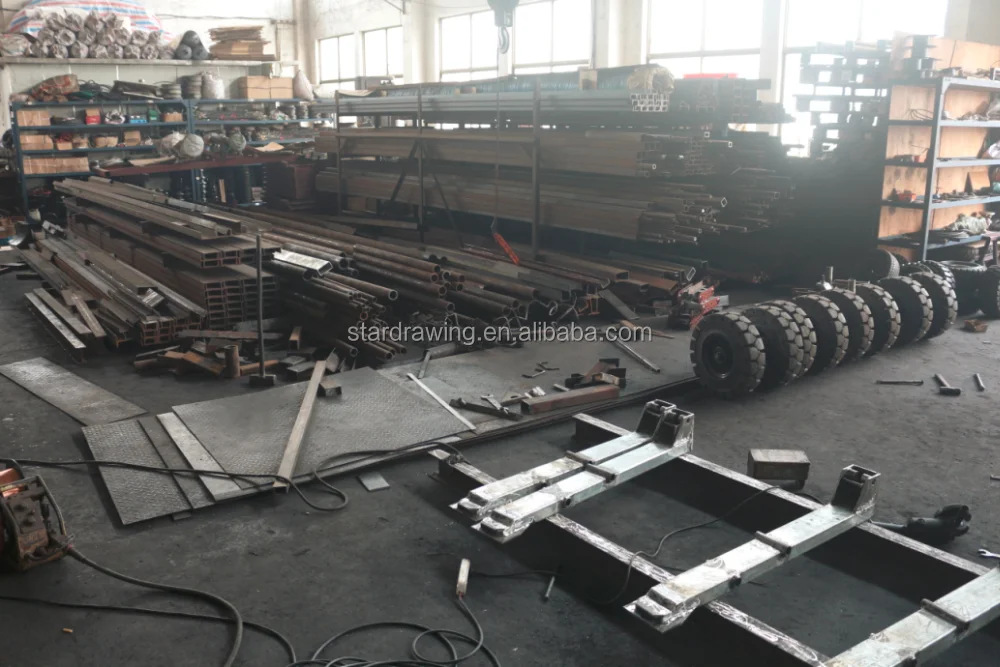

Workshop & Facility




Digitized Welding Robot

The digitized welding robots were introduced to realize the international advanced high-precision automatic welding production.

Testing Machine
Stardrawing People

Developing Mutually Beneficial Relationship

If a relationship is cannibalistic, someday dinner is going to run out. People are going to eat company up. So we thrive on developing long term, mutually beneficial relationships with our clients that require our core products and service offerings.

Doing One Thing in All Life

We do not pretend to be "all things to all people", or the "best at everything". Our consultative approach to partnering with clients, and expertise in providing solutions to problems beyond the ability of other suppliers, are established points of difference and advantages.

Keep Promises, Over Deliver

If we have a hard time keeping promises to our customers, we would not be in business to begin. We would accurately promise and then deliver performance in line with that promise. If possible, we will definitely try our best to exceed customer expectations.

Hot Products

Steel Caster Wheel

Low Profile Caster Wheel

Rubber Caster Wheel


PU Polyurethane Caster Wheel


Dual Wheel Caster Wheel


Scaffolding Caster Wheel


Leveling Caster Wheel


Wheelchair Wheel


Forklift Wheel


FAQ

Dear : Can I get free caster wheel samples from Stardrawing ?

STAR : We would be honor to offer you free caster samples, and we believe that you would be willing to pay for the freight fee for such good products. Please provide your DHL/FedEx or other freight collect number and advise which express type should be chosen, international express type(2~3days) or economic type (4~5days).

Dear : What is your payment terms of caster ?

STAR : It is undisputable and crystal clear that 30% advanced payment, 70% before shipment, hope we have reached agreement for this regular payment manner.

Dear : What about your lead time ?

STAR : Usually, caster sample needs 5-7 days, mass production time needs 30 days. It is up to the quantity and stocking.

Dear : Is it OK to print my logo on casters ?

STAR : Sure.

Option 1 - Build the molds and fixtures upon your sample or technical drawings
Option 2 - Add your logo on fork or wheel
Option 3 - Pack the casters in your branded carton

Dear : How can I trust the quality of your casters ?

STAR : We tell you that we have variety of international quality certificates, we have a very strict quality control system, we do a series of caster tests before shipping. Right, you still have no idea about our quality. Therefore, no hesitate! Just place a trial order from Stardrawing. You will not only trust the quality of casters, but also trust the character of Stardrawing people since then.

Wheel Diameter:As your request;Tow Bar:with tow bar;Max wheel Speed:10 km/h;Lifting height:380 mm;Packaging Detail:Wooden Box/Steel Frame forISO conta
above is detail introduction of SS self loading shipping container house dolly truck with wheels, include price, model, picture and supplier of SS self loading shipping container house dolly truck with wheels.
