SS Dual wheels ISO shipping container casters wheels

Product details
Core Material:Cast Iron;Tread Material:Polyurethane wheels;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Application:iso container wheels;
Load Capacity:5 to10 ton;Axle Diameter:Other;
Packaging Detail:Cartons ( 42 * 29 * 20 mm ), Pallet for Dual wheels ISO shipping container casters wheels;Type:Other;
Supply Ability:50000 Piece/Pieces per Month shipping container caster wheels;Fork Material:Zinc Plated Steel;
Material:Iron,POLYURETHANE;Width:Other;
Style:Other;Bearing Type:Double Ball Bearings;
Mounting Type:Plate Swivel;Tread Color:Red;
Wheel Diameter:8inch/200mm;Tread Width:3 inch / 75mmx2;
Port:Shanghai Port, Qingdao Port, Tianjing Port, Ningbo Port, Guangdong Port, Shenzhen Port;Place of Origin:Shanghai China;
Product Show

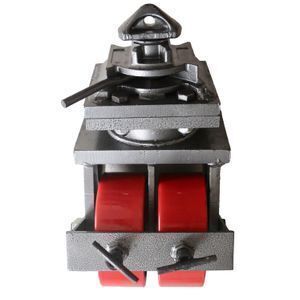

Dual wheels ISO shipping container casters wheels


Product Description

Dual wheels ISO shipping container casters wheels


Once installed, the caster wheel provide an efficient way of mobilizing at low speeds (not for highway use). The common uses are moving containers in and out of a facility for maintenance, alterations, upfits or for complexing and loading shelters. Towbars are also available and these fit the end hole of the corner fitting. The Container Casters are very rugged products, available in a wide range of capacities and wheel types for different surfaces. All casters are swivel type with a swivel lock, locking at 90° increments. This offers the user the most flexibility by allowing all to swivel for tight turns or to lock two rear if desired when towing.


If you don't see what you want, STARDRAWING's engineering team can custom design a caster for any application!

Main Features

1)Mobilize loaded or unloaded containers
2)Fits ISO Corner Fitting of Cargo Containers of various sizes
3)Load capacities range from 2,500LBS to 20,000LBS
4)Variety of wheel selection depends on load capacity and application environment
5)Handle swing to lock into Corner fitting or back to unlock
6)Swivel lock and wheel brakes are available
7) shock absorbing kingpinless caster bracket is also available.
8) double twin wheels or three wheels type is also available.
9) operating temperature : -40 centigrade degree to 60 centigrade

Applications

CAUTION:
1) When placing or removing casters from corners, use a fork truck to raise or lower the Corner fitting.
      Personnel are to stand clear of adjacent areas to avoid injury if accidentally dropped.
2) Casters can allow loads to move on unleveled surfaces and crush personnel. Lock swivel casters in towing direction and chock before

      detaching tow vehicle. When towing, swivels on tow-end should be unlocked after connecting tow vehicle and before starting tow.

About Stardrawing


Our experience and passionate research and developing team has the industrial design experience of more than 12 years on average. We work at the space framework composed by the line, arc, and dip angle with the care and precision of a sculptor.


We have our strong marketing team, who can not only meet the customization requirements of customers from different places in China, South Korea and Japan, but also concentrate on the market trend of the caster consuming market in America, Europe and many other countries, develop the individualized original product for the customer according to his or her preference and the trend, so that our customers can seize the first opportunity in market competition.

Workshop & Facility




Digitized Welding Robot

The digitized welding robots were introduced to realize the international advanced high-precision automatic welding production.

Testing Machine
Stardrawing People

Developing Mutually Beneficial Relationship

If a relationship is cannibalistic, someday dinner is going to run out. People are going to eat company up. So we thrive on developing long term, mutually beneficial relationships with our clients that require our core products and service offerings.

Doing One Thing in All Life

We do not pretend to be "all things to all people", or the "best at everything". Our consultative approach to partnering with clients, and expertise in providing solutions to problems beyond the ability of other suppliers, are established points of difference and advantages.

Keep Promises, Over Deliver

If we have a hard time keeping promises to our customers, we would not be in business to begin. We would accurately promise and then deliver performance in line with that promise. If possible, we will definitely try our best to exceed customer expectations.

Hot Products

Steel Caster Wheel


Low Profile Caster Wheel


Rubber Caster Wheel


PU Polyurethane Caster Wheel


Dual Wheel Caster Wheel


Scaffolding Caster Wheel


Leveling Caster Wheel


Wheelchair Wheel


Forklift Wheel


FAQ

Dear : Can I get free caster wheel samples from Stardrawing ?

STAR : We would be honor to offer you free caster samples, and we believe that you would be willing to pay for the freight fee for such good products. Please provide your DHL/FedEx or other freight collect number and advise which express type should be chosen, international express type(2~3days) or economic type (4~5days).

Dear : What is your payment terms of caster ?

STAR : It is undisputable and crystal clear that 30% advanced payment, 70% before shipment, hope we have reached agreement for this regular payment manner.

Dear : What about your lead time ?

STAR : Usually, caster sample needs 5-7 days, mass production time needs 30 days. It is up to the quantity and stocking.

Dear : Is it OK to print my logo on casters ?

STAR : Sure.

Option 1 - Build the molds and fixtures upon your sample or technical drawings
Option 2 - Add your logo on fork or wheel
Option 3 - Pack the casters in your branded carton

Dear : How can I trust the quality of your casters ?

STAR : We tell you that we have variety of international quality certificates, we have a very strict quality control system, we do a series of caster tests before shipping. Right, you still have no idea about our quality. Therefore, no hesitate! Just place a trial order from Stardrawing. You will not only trust the quality of casters, but also trust the character of Stardrawing people since then.
