Twist-on wire connectors-Heavypower-P4 Yellow
- 0.01 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Certification: | SO9001/UL/CE/ROHS/REACH; | Place of Origin: | Jiangsu China; |
| Type 3(High Temperature): | P1B(Black), P3(Black); | Operating Voltage: | 300V-1000V; |
| Payment Terms: | L/C,T/T,Western Union; | Type 1(Standard): | P1(Grey), P2(Blue), P3(Orange), P4(Yellow), P6(Red); |
| Brand Name: | Heavy Power; | Delivery Detail: | Shipped in 14 days after payment; |
| Supply Ability: | 100000000 Piece/Pieces per Month; | Color: | Grey, Blue, Orange, Yellow, Red, Black.; |
| Model Number: | Wire connector; | Packing: | 100PCS/Bag, 500PCS/Bag, 1000PCS/Bag(See product packing details); |
| Type 2(H Type): | P3H(Orange), P4H(Yellow), P6H(Red); |
Twist-On Wire Connectors-Standard
- UL 486C Listed and CSA 22.2 No.188 Certified
- Tough thermoplastic, UL 94V-2 flame-retardant shell rated for 105°C(221°F)
- Zinc plated square wire spring
- Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs
- Five color-coded to industry standards.
- No pre-twsting required, push stripped conductors into connector and screw on.

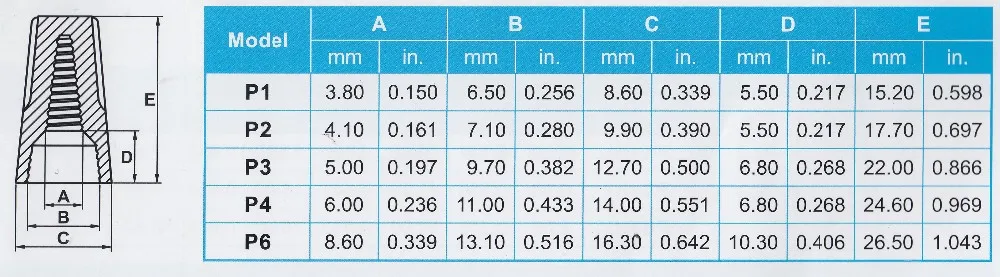

Figure Dimension Information
| Model No. | Color | Electrical Ratings & Temperature | Wire Range | Packing |
| P1 | Grey | 300 V Max. | 22-14 AWG, Cu | 1,000 Pcs/Bag |
| 105°C (221°F) | Max. 1 #16 w/1 #18 w/1 #20 | 20,000 Pcs/Ctn | ||
| Min. 2 #22 | ||||
| P2 | Blue | 300 V Max. | 22-14 AWG, Cu | 1,000 Pcs/Bag |
| 105°C (221°F) | Max. 3 #16 | 10,000 Pcs/Ctn | ||
| Min. 2 #22 | ||||
| P3 | Orange | 300 V/600 V Max. | 22-14 AWG, Cu | 500 Pcs/Bag |
| 105°C (221°F) | Max. 4 #16 w/1 #20 | 5,000 Pcs/Ctn | ||
| Min. 1 #18 w/1 #20 | ||||
| P4 | Yellow | 300 V/600 V Max. | 22-10 AWG, Cu | 500 Pcs/Bag |
| 105°C (221°F) | Max. 2 #12 w/2 #14 | 5,000 Pcs/Ctn | ||
| Min. 3 #20 Sol | ||||
| P6 | Red | 300 V /600 V Max. | 22-10 AWG, Cu | 500 Pcs/Bag |
| 105°C (221°F) | Max. 2 #10 Sol w/2 #12 Str | 5,000 Pcs/Ctn | ||
| Min. 3 #18 |
Twist-On Wire Connectors-H Type
- UL 486C Listed and CSA 22.2 No.188 Certified
- Tough thermoplastic, UL 94V-2 flame-retardant shell rated for 105°C(221°F)
- Zinc plated square wire spring
- Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs
- Compact size design perfect for tight spaces
- Three color-coded to industry standards.
- No pre-twsting required, push stripped conductors into connector and screw on.
Figure Dimension Information
+
| Model No. | Color | Electrical Ratings & Temperature | Wire Range | Packing |
| P3(H) | Orange | 300 V/600 V Max. | 22-14 AWG, Cu | 500 Pcs/Bag |
| 105°C (221°F) | Max. 4 #16 w/1 #20 | 5,000 Pcs/Ctn | ||
| Min. 1 #18 w/1 #20 | ||||
| P4(H) | Yellow | 300 V/600 V Max. | 22-10 AWG, Cu | 500 Pcs/Bag |
| 105°C (221°F) | Max. 2 #12 w/2 #14 | 5,000 Pcs/Ctn | ||
| Min. 3 #20 Sol | ||||
| P6(H) | Red | 300 V/600 V Max. | 22-10 AWG, Cu | 500 Pcs/Bag |
| 105°C (221°F) | Max. 2 #10 Sol w/2 #12 Str | 5,000 Pcs/Ctn | ||
| Min. 3 #18 |
Twist-On Wire Connectors-High Temperature
- UL 486C Listed and CSA 22.2 No.188 Certified
- Black thermoplastic shell designed to withstand extreme temperatures
- Zinc plated square wire spring
- Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs
- Supplied in two standard model
- No pre-twsting required, push stripped conductors into connector and screw on.

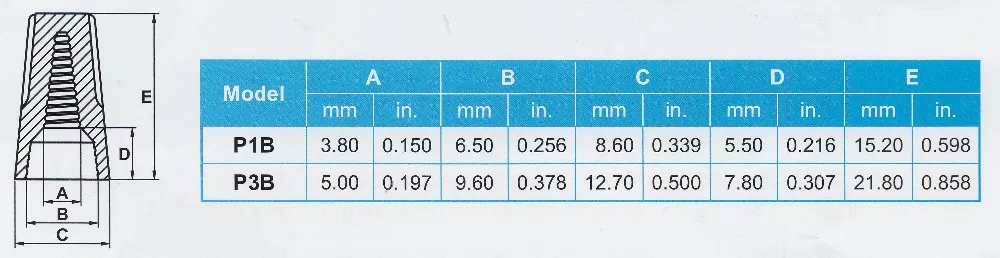

Figure Dimension Information
+
| Model No. | Color | Electrical Ratings & Temperature | Wire Range | Packing |
| P1B | Black | 300 V Max. | 22-18 AWG, Cu | 1,000 Pcs/Bag |
| 150°C (302°F) | Max. 2 #18 Str | 20,000 Pcs/Ctn | ||
| Min. 1 #18 Str w/1 #22 Str | ||||
| P3B | Black | 600 V Max. | 22-14 AWG, Cu | 500 Pcs/Bag |
| 150°C (302°F) | Max. 1 #14 w/1 #16 w/1 #18 | 5,000 Pcs/Ctn | ||
| Min. 1 #16 w/1 #22 |
