Baby wet wipes machine full automatic production line include the packing machine

Supplier: Hanma (Fujian) Machinery Co., Ltd.
Region: Fujian, China
Contact: Mr. Hanma Machine
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Folding way:	Z, uncontinuously;	After-sales Service Provided:	Engineers available to service machinery overseas;
Wetting system:	Changeable-production auto recycling wetting system;	Agitating tank:	400L wet wipes machine;
Dimension(LWH):	11.44.02.1 m;	Type:	Baby wet wipes machine automatic;
Voltage:	380V 50HZ;	Packaging Detail:	Standard Package: standard wooden pallet with vacuum bag /standard exporting wooden case/ others as you want.;
Designed speed:	2400-4800pcs/min or 25-50packs/min;	Certification:	CE;
Warranty:	1 Year;	Packaging size range:	(140-280)x(90-110)x(30--80) mm (LWH);
Weight:	6500kg;	Power(W):	18 KW;
Port:	XIAMEN;	Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram;
Wet wipe unfold size range:	(120-210)x(160-220) mm;	Place of Origin:	Fujian China (Mainland);
Wet wipe folded size range:	(120-210)x(90-110) mm;	Brand Name:	HANMA;
Condition:	New;	Raw material:	Spunlace nonwoven;
Packaging film:	PE&PET OPP&PE;	Supply Ability:	6 Set/Sets per Month baby wet wipes machine automatic;

Product Description

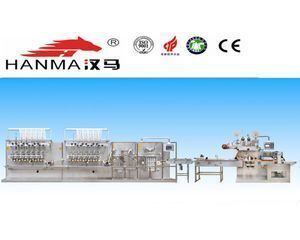

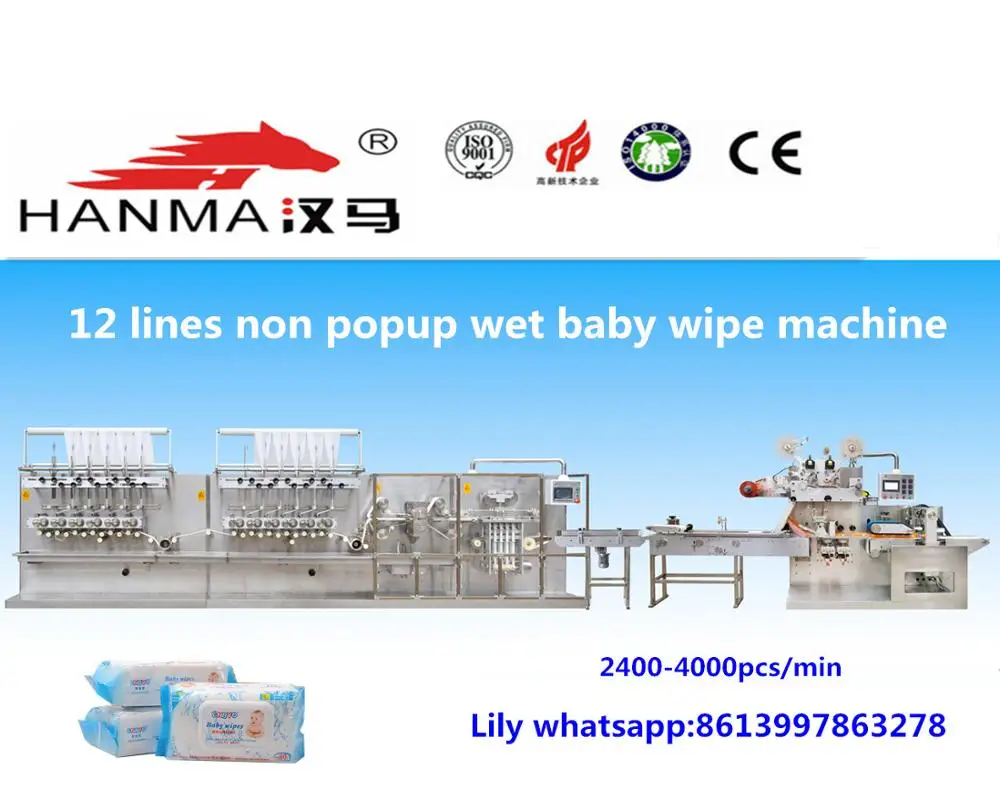

Baby wet wipes machine full automatic production line include the packing machine

HM-F1280A is full automatic production line for baby wet wipes.

Main technical parameter of baby wet wipe machine automatic
Voltage	Three phase 380V 50HZ	Power	18KW
Machine size(L×W×H)	11.4×4.0×2.1 m	Machine Weight	6500kg
Production speed	25-50 packs/min 2400-4800 pcs/min	Folding method	Z, non popup
Wet wipe unfold size	(120-210)×(160-220)mm (L×W),adjustable	Wet wipe folded size	(120-210)×(90-110)mm(L×W) ,adjustable
Packing size	(140-280)×(90-110)×(30-80) mm (L×W×H),adjustable	Control system	PLC control system, Color touching screen
Other
Feature	1.Calculate automatically,setting through touching screen,changeable stacking system 2.PLC Controlling system,Touching screen, 3.Option equipment: steel stainless agitate tank 400L*2
Information of raw material
Suitable raw material	Spunlace non-woven	Raw material weight	40-80 g/m2
Raw material size	1500×1000mm(width×dia)	Sticker size	70(max) x Ø300 mm (Width*diameter)
Packing film	PE&PET OPP&PE	Packaging film size	400(max) x Ø350 mm (Width*diameter)

Baby wet wipes machine full automatic production line include the packing machine

Features of full automatic production line for baby wet wipes:

1.Science design,structure compact,convenient to operate and maintain.

2.Wipe wetting system: single piece spray and second assembled spray.

3.Liquid-adding system including agitating equipment,adding-water equipment,recycling equipment,adjustable quantitative water.

4.The width and longth of package and wet tissues can be adjusted as your required.

5.Photo-electric detection. machine stop automatically without spun lace non woven.

6.Packing type:reciprocating horizontal sealing,with machine packing fork, and optional airplane style device.

7.Position adjustment: hole position,label position,packaging film feeding position, color label position ,all could be adjusted by touching screen.

8.Raw materials cutting system: blade pushed by cylinder.

9.Labeling system: double labels, synchronous working and close one or two all could be chosen.

10.Printing system: ink wheel printer, printing production date and batch number

11.Packing: size adjustable

12.Mainly parts:Folding machine: Japan Mitsubishi

Packing machine: Japan Omron

13.Safety protection : Urgent stop system. Parts protection cover

14.PLC Controlling system, monitor system

15.Machine controlling system: PLC system, touching screen,electric circuit control,power control, temperature control etc aided control.

16.Splicing raw materials automatically

17.The stainless steel surface is not easy to have reaction with chemical perfume.

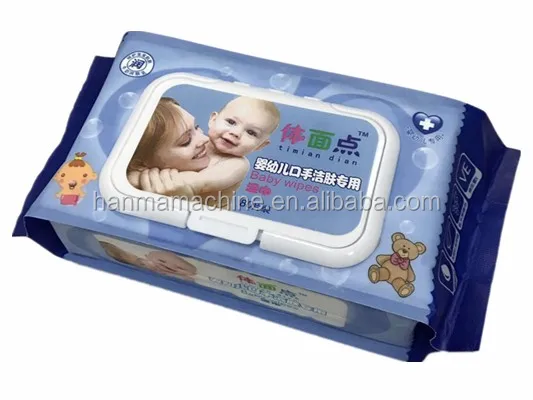

Sample of baby wet wipes

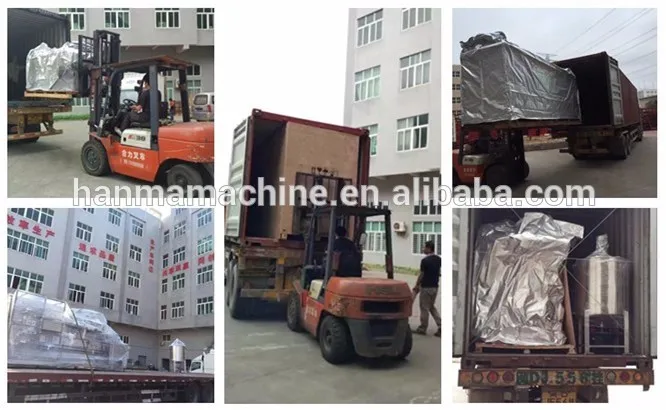

Packaging & Shipping

Packaging by standard exporting wooden case or wooden pallet with vacuum bag which suit for long distance transportation and protected from dampness, rusting so as to arrival at destination without any damage.

Our Services

Excellent After-sale Service

1. Technician would be welcomed to our factory to learn how to operate the machine before delivery for 1-2 weeks. Food and accommodation offered free.

2.Also,technicians can be sent to your workshop for installing, testing the machine and training your workers if it is necessary.

3.One year for warranty, free consult service, relevant machine parts supplied.
