2019 New Digital Video Microscope 2M/4M/14M/16M HD MI/USB/WIFI Industrial Camera Video Camera Microscope Products from Shenzhen Raysmart Technology Co., Ltd.

Product Details

Port:	ShenZhen;	Model Number:	VMS16M35;
Brand Name:	RaySmart;	Product name:	Digital Video Microscope;
Theory:	Video Microscope;	Zoom rate:	1X~16X;
Image sensor:	2M/4M/14M/16M;	Microscope dimension:	195mm(L)x 125mm(W)x 25mm(H);
Drawtube:	Monocular;	Payment Terms:	L/C,T/T,Western Union,Paypal;
Color:	Red/Black/Yellow/Blue;	Packaging Detail:	Standard packaging;
Supply Ability:	500 Piece/Pieces per Month;	Place of Origin:	Guangdong China;

2019 New Digital Video Microscope 2M/4M/14M/16M HD MI/USB/WIFI Industrial Camera Video Camera Microscope

Product Features

This product is a high-performance and cost-effective video microscope.

* 4KP25,1080P60;1080P/30FPS(FHD);720P/60FPS(HD), no flaky and no ghosting

* Professional image processing DSP, 3D noise reduction, color reproduction;

* Picture, Video, Playback

* Support mouse operation + measurement function.

* Support HD MI+USB (UVC free drive) +WIFI (optional) output display

* Support 1X ~ 16X zoom (including 2X intelligent zoom), clear and smooth

* Support full screen freeze, left and right, up and down 1/4 of the same screen.

* Support grid, and position, color, thin or thick are adjustable.

* Support AE lock, exposure compensation function

* Supports automatic, manual and calibration white balance

* Supports color, black and white, retro special effects

* Wide dynamic, contrast, saturation, resolution are adjustable

* Support image horizontal mirror, vertical flip

* Support function customization, App development with SDK.

* Support large icon operational interface, single button operation, simple and easy to use.

* Supports infrared remote control operation, microphone recording, buzzer prompt

* Support 4GB ~32GB TF card.

* 5V ~ 12V power supply design, wide voltage input.

* Industrial specifications, metal shell, durable, stable

Specifications

Image sensor	2MP 1/2inch 4MP 1/3inch BSI 14MP 1/2.33 inch Panasonic 16MP 1/2.33 inch
Pixel size	3.75um x 3.75um 2um x 2um 1.43um x 1.43um 1.335um x 1.335um
Picture resolution	1920x1080(16:9),1440x1080(4:3) 2688x1512(16:9),2016x1512(4:3) 4320x2430(16:9),4320x3240(4:3) 4608x2592(16:9),4608x3456(4:3)
Video resolution	1080P/30FPS(FHD),720P/60FPS(HD) 4KP25(Clear),1080P60(Smooth),720P120(High speed)
HDMI resolution	720P/60FPS 1080P60
USB resolution	1080P/20FPS,720P/30FPS,WVGAP/60FPS 1080P30,720P30,WVGAP60
WIFI output	720x360@30fps,Support Andriod / iOS(optional) 960x540@30fps,Support Andriod and iOS(Optional)
Zoom	1X~16X (including 2X intelligent zoom)
Exposure control	AE lock, exposure compensation (10 levels adjustable)
White balance	automatic, manual (R, G, B 10 levels for option), calibration cooperation
Image control	contrast, saturation, resolution 10 levels for option
Screen freeze	full screen, left and right, up and down, 1/4.
Grid	8 groups, position, color, thin and thick are adjustable
Measurement	point, line, circle, Angle (optional)
Language	English, simplify Chinese, traditional Chinese
Mouse interface	PS/2 Or TYPE-A, recommend to use the original mouse (optional)
Infrared remote control	maximum 5 meters
WIFI antenna	SMA(Optional), maximum 10 meters
HDMI port	TYPE-A
USB port	TYPE-B USB2.0
Memory card	Max.32G TF card
Lens	Applicable to C or CS interfaces
Microscope dimension	195mm(L)x 125mm(W)x 25mm(H)
Microscope	435g(WIFI)/ 395g(No WIFI)

Accessories

Video microscope   1pc
HD MI cable            1pc
Adaptor                        1pc
USB cable                  1pc
PS/2 Mouse                 1pc
WIFI antenna             1pc
User manual              1pc
Wipe cloth               1pc

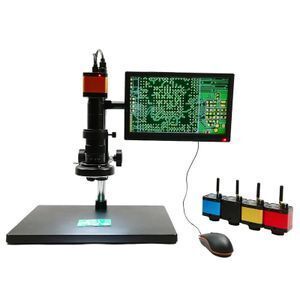

Detailed Images

4M / 14M / 23M

2M / 16M / 36M

10A Stand

C Mount Zoom Lens
0.5x ocular lens + 0.7-4.5x zoom lens ( Around 10x-180x based on 21" monitor)
Working distance: 90mm-100mm
View range: 2.3mm-22mm
Column diameter: 24.7mm;
Lens interface diameter: 50mm;
Height adjustable range: 10-265mm;
Mobile workbench: 200*158*26mm, Stroke: 60mm
Stand Size: 375mm*245mm*340mm

The display

Note:

        Microscope camera,4M and 14M , 2M and 16M,23M and 36M, six different pixels, six different prices. They are all support with mouse and WIFI.
      The display , There are 10.1 inch /11.6 inch /12.5 inch / 13.3 inch.
        And for 10A Stand. They can all be combined at will.

You can tell us that your demand,we can recommend it to you and give you a best price. Tks!
