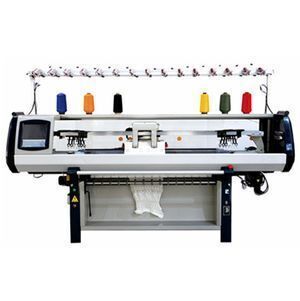

Shima Seiki Computerized Flat Knitting Machine for Sweater

Click here to contact
Product details
After-sales Service Provided:Video technical support,Online support;Type:flat;
After Warranty Service:Video technical support,Online support;Warranty:2 years;
Product Type:SWEATER;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Computerized:Yes;Guage:7-16GG;
Gauge:3 GG,7 GG;Knitting width:72 inch;
Supply Ability:100 Set/Sets per Week;Voltage:220v;
Weight:590kgs;Key Selling Points:Easy to Operate;
Local Service Location:None;Power:1kw-1.5kw;
Warranty of core components:1 Year;Machinery Test Report:Provided;
Model:SG1-2X52S;Dimension(L*W*H):2600x750x1750mm;
Knitting Style:Flat;Port:SHANGHAI;
Marketing Type:Ordinary Product;Applicable Industries:Home Use,Textile;
Core Components:Pressure vessel,Bearing;Packaging Detail:Standard export package;
Knitting speed:Maxin 1.6m/s;Showroom Location:None;
Knitting Method:Single;Condition:New;
Brand Name:SIGMA;Video outgoing-inspection:Provided;
Place of Origin:Jiangsu China;knitting size:52inch;
Product Description
Computerized Flat Knitting Machine
Single-carriage with dual/three carrier control
Product Description

on the basis of the original single system, this machine has added a more superior knitting control system, which can control the single head double knitting operating system at the same time. and meet the single multi-row knitting at the same time. which greatly shortens the knitting time and meets the needs of a variety of knitting patterns, making the machine more stable and reliable. Weaving efficiency increased by about 40%, is a practical, economic, high-performance machinery.
Product Specification
Model
SG1-2X52S
SG1-2X72S
SG1-2X80S
SG1-3X52S
SG1-2X72S
Knitting size
52 inch
72 inch
80 inch
52 inch
72 inch
Length
2600
3150
3450
2750
3250
Width
750
750
750
750
750
Height
1750
1750
1750
1750
1750
Net weight (kg)
590
750
800
600
760
Product Parameter
Guage
7GG, 9GG, 10GG, 12GG, 13GG, 14GG, 16GG
Knitting speed
max knitting speed 1.6m/s, 32 speed sections controlled by servo motor
Roller
Master roller/Ancillary roller (optional)
Voltage
220V
Power
1kw-1.5kw
Knitware Sample Show
Detailed Images

Machine Parts

Name: Automatic oil supply system


1. break through the function characteristic of manual oil.


2. Reduce fuel consumption


3. Avoid various mechanical faults


Machine Parts

Name: Touch Screen

1. Humanized design control interface.


2. Large memory capacity.


3. Stable performance


4. Easy to learn and understand

Machine Parts

Name: Infrared probe alarm device

1. Break through the characteristics of the flat knitting machine.


2. Make the detection function complete, safe and effective.


3. Avoid the normal operation of the damaged knitting fabric.

Machine Parts

Name: Side tensioner

1. Monitor the yarn and give a certain tension to the yarn.


2. Retract loose yarn caused by head reversing or other reasons in weaving process.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
