New Arrival High Efficiency Automatic Cutting Machine YS-100
-
Supplier: Shenzhen Willdone Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Mr cheng -
Price: $536.75 /piece -
Min. Order: 1 piece
| Outer size: | L360*W300*H350 mm; | Place of Origin: | Guangdong China; |
| Packaging Detail: | Standard Export Package; | Single package size: | 54X44X50 cm; |
| Type: | Pipe Cutting Machine; | Key Selling Points: | Competitive Price; |
| Core Components: | Engine; | Year: | May. 2019; |
| Showroom Location: | None; | Dimension(L*W*H): | 54*44*50cm; |
| Automation: | Manual; | Cut Speed: | It depen on the cut length,from 50 PCS to 120PCS per minute; |
| Power Supply: | 250W; | Electrical Source: | 50/60HZ; |
| Video outgoing-inspection: | Not Available; | Local Service Location: | None; |
| Rated Power: | 250W; | Marketing Type: | New Product 2020; |
| Condition: | New; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops; |
| Product name: | New Arrival High Efficiency Automatic Cutting Machine YS-100; | Selling Units: | Single item; |
| Warranty: | one year; | Brand Name: | Willdone; |
| Weight (KG): | 30; | Warranty of core components: | 1 Year; |
| Single gross weight: | 30.0 KG; | After Warranty Service: | Online support; |
| Machinery Test Report: | Provided; | Voltage: | 110/220V; |
| Cut Length: | from 0.1 MM to 9999.9MM; | Material / Metal Processed: | PVC,Plastic; |
| Cut Width: | from 0.1 MM to 100MM; |

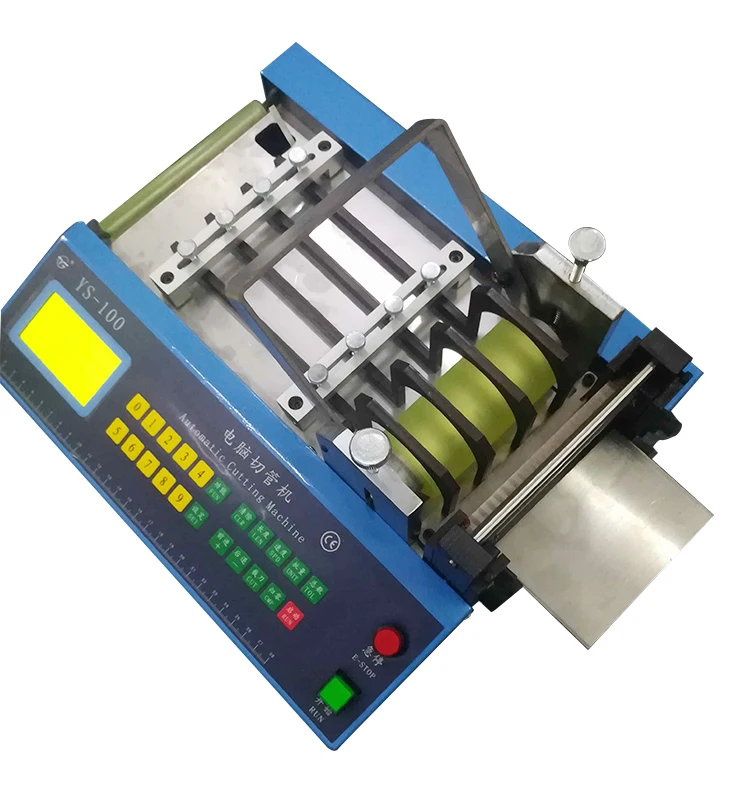

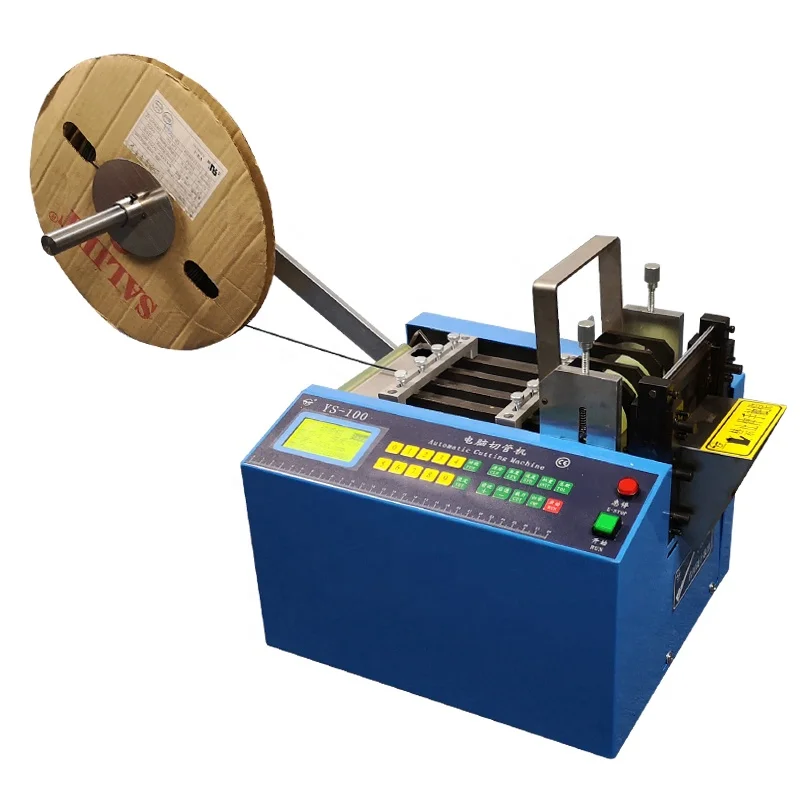

New Arrival High Efficiency Automatic Cutting Machine YS-100
YS-100
Parameter
|
Electrical Source |
220/110V 50/60HZ |
|
Power |
250W |
|
Cut Length |
from 0.1 MM to 9999.9MM |
|
Cut Width |
from 0.1 MM to 100MM |
|
Cut Speed |
It depen on the cut length,from 50 PCS to 120PCS per minute |
|
Net Weight |
30KG |
|
Outer size |
L360*W300*H350 mm |
|
Packaging detail |
Carton or wooden case within foam plastics |
Guarrantee:
Three years for the pc board
One year for the machine
Knife can be shaped for free in a year
(The other pattern:YS-100,YS-100W,YS-120,YS-120W,YS-160,YS-160W, YS-200W,YS-250W,YS-300W,the W means high-power)
Characteristic:
1.*English manual and display which is easy to understand
2.*Best service:mother board and system are developped by our own engineer.Best technology support and after sale service will be provided
3.*High speed: It can cut 100~120 cut per minute. (50mm long)
4.*Accuracy: Small cutting length such as 30mm,the error is below 1mm
5.*Cutting type: Cold cutter which is durable or hot knife cutting .
6.*Automatic operation:Easy operating and safety machine. It works automatically only by setting length and quantity
7.*Automatic stop: It stops automatically if materials run out during operation
.8.*There is a pole on the machine which can hold the material roller below 10kg.
9.*Materials Can Cut: pipe,tube,belt, webbing, fabric, cloth, foam,ribbon,plastic,film,label,wire,shrinkable tube,cable ties,silicone tube,pvc tube,wiring,plastic hose pipe,rubberhose,teflon tube,chequered tube,velcro,insulated sleeve,insulation paper,copper foil and so on.
How to choose models:
YS-100 is suitable to cut material width below 100mm
YS-120 is suitable to cut material width below 120mm
YS-160 is suitable to cut material width below 160mm
YS-200W is suitable to cut material width below 200mm
YS-250W is suitable to cut material width below 250mm
YS-300W is suitable to cut material width below 300mm
Some materials with big thickness,will be suitable for our big power machine model:YS-120W,YS-120WH,YS-160W,YS-200W,YS-250W,YS-300W
Application
The cuting machine can cut band,belt,tube, pipe,webbing,wire,tape,cable, sheet,film.
Tube: PVC tube, heat shrink tube, PVC heat shrinking tube, fiberglass tube, Tefln tube, corrugated tube, etc.
Cable: Flat cable,ribbon cable wire,etc
Tape: nickel strap, velcro, cotton tape, elastic band, plastic tape, zipper, conductive tape,foam, etc
Sheet: battory separator, Nickel sheet, diffuser sheet, plastic/rubber sheet, pvc sheet,etc
Film: plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper,etc
1.Good quality and competitive price.
2,Any Inquires will be replied within 24 hours.
3,All of our products 100% inspection before shipment, we guarantee to use our products safety.
4,OEM/ODM orders are warmly preferred.
5,We own the best after-sale service.Any problems occur,our team will do our best to solve for customers.
6,Faster delivery, sample order in stock, and 3-7 days after bulk production.
